Description
A kit of twelve 10-segment LED bar graphs with matching resistor boards and printed frames. For level meters, battery gauges and signal bars.
Highlights

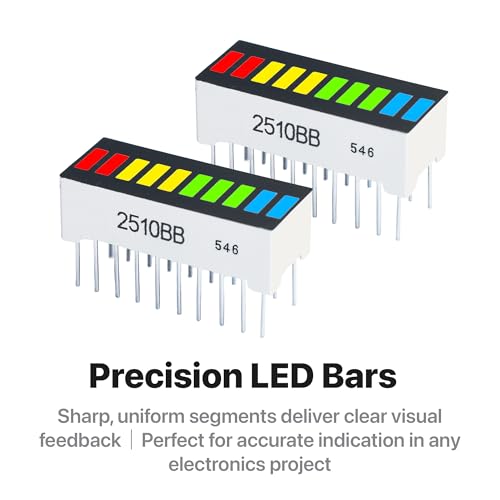

- Six colours. Two each of red, yellow, green, blue, white and multicolour.

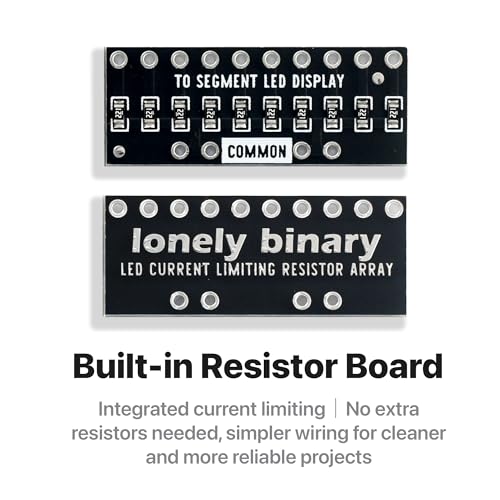

- Resistors on a board. Each bar has its own resistor board with ten 220Ω resistors, so no loose resistors to wire.
- Breadboard pitch. Standard 2.54mm spacing; header strips are supplied loose for the resistor boards.
- Printed frames. Each bar fits a 3D-printed frame for a finished look.
- One pin per segment. Each bar uses ten GPIO pins, one per segment.
In the box

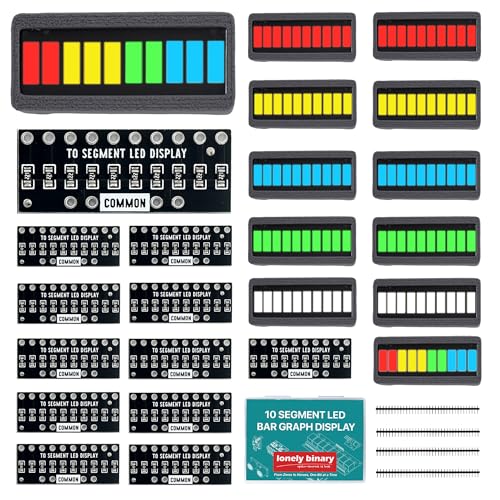

- 12 × 10-segment bar graph: 2 each of red, yellow, green, blue, white and multicolour
- 12 × current-limiting resistor board, ten 220Ω each, no pins fitted
- 12 × printed frame
- Male pin header strips for the resistor boards
- 1 × storage case
Specifications
- Segments: 10 per bar
- Series resistor: 220Ω per segment, fitted
- Pitch: 2.54mm
Works with
Arduino-compatible boards, ESP32 and other microcontrollers with enough free GPIO.
Questions
Display
10-Segment LED Bar Graph, 6 Colours, 12-Pack
SKU bargraph
A$27.99incl. GST
In stock · ships within one business day
Buy more, save moreup to 20% off
3+ items5% off$26.59 AUD each
10+ items10% off$25.19 AUD each
25+ items15% off$23.79 AUD each
100+ items20% off$22.39 AUD each
Free shipping over A$50
- Ships worldwide
- 30-day returns
- 12-month warranty
