Description

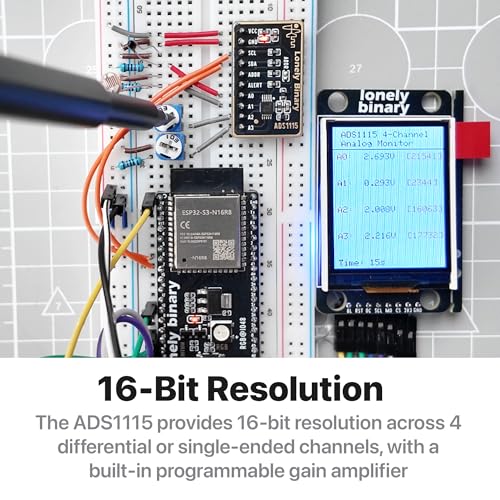

A four-input, 16-bit analog-to-digital converter on I2C, for readings finer than a microcontroller's built-in ADC can give. Three modules in the pack.
Highlights
- Four inputs. Read four single-ended channels, or two differential pairs.

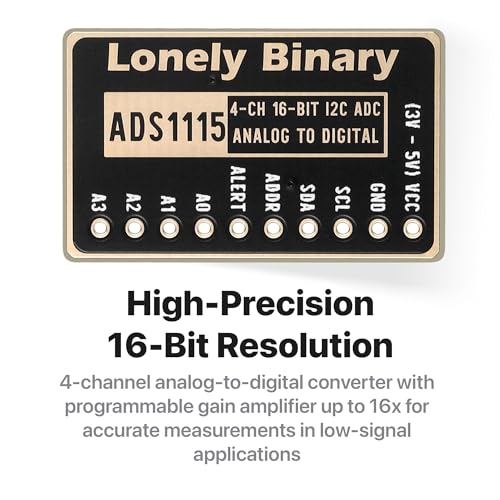

- Programmable gain. Six input ranges from ±0.256V to ±6.144V; at the smallest range one step is about 7.8µV.

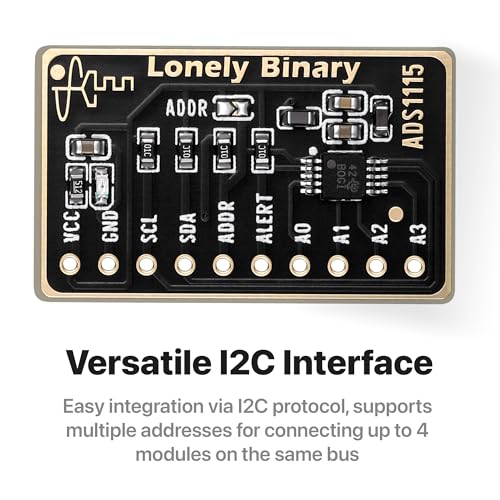

- Two wires. Talks over I2C on SDA and SCL, so it costs no analog pins.
- Headers fitted. Ready for a breadboard or jumper wires out of the bag.

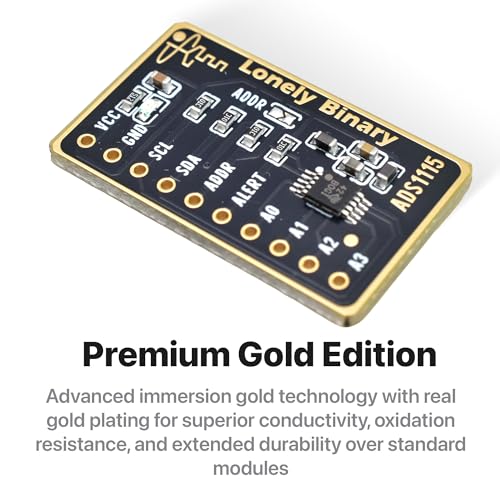

- Gold Edition finish. ENIG gold-plated pads, lead-free.
In the box

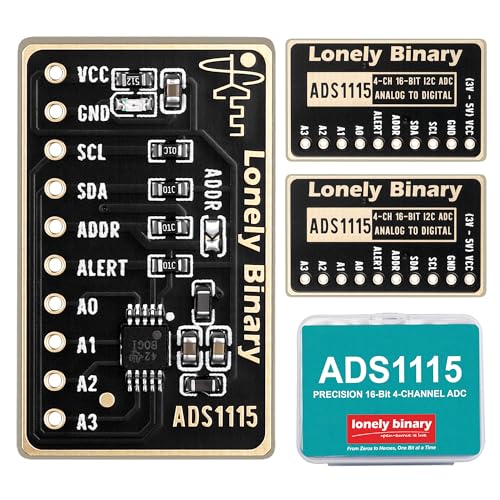

- 3 × ADS1115 module with headers fitted
Specifications
- Chip: Texas Instruments ADS1115
- Resolution: 16 bits across the full-scale range
- Inputs: 4 single-ended or 2 differential
- Supply: 2.0–5.5V
- I2C addresses: 0x48 and 0x49 (two per bus)
Works with
Any board with I2C, 3.3V or 5V. Libraries are available for the Arduino IDE, MicroPython and CircuitPython.
Questions
Converter
ADS1115 16-Bit ADC I2C Module, 3-Pack
SKU ads3
A$17.99incl. GST
In stock · ships within one business day
Buy more, save moreup to 20% off
3+ items5% off$17.09 AUD each
10+ items10% off$16.19 AUD each
25+ items15% off$15.29 AUD each
100+ items20% off$14.39 AUD each
Free shipping over A$50
- Ships worldwide
- 30-day returns
- 12-month warranty
