Description

The ESP32-S3 Gold Edition with an external IPEX antenna, for projects where the board sits in an enclosure or far from the router.

Highlights

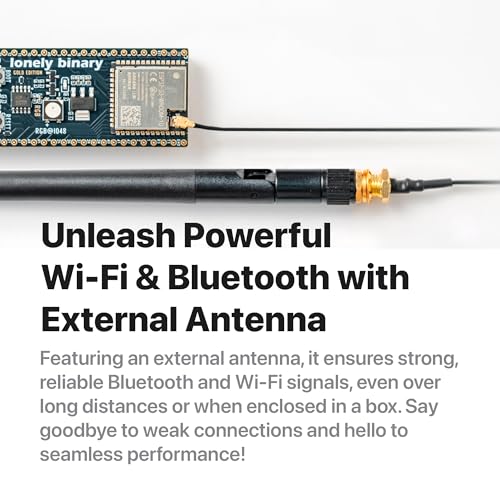

• External antenna. Position the IPEX antenna where the signal is best for Wi-Fi and Bluetooth, away from the board.
• 16 MB flash, 8 MB PSRAM. Room for OTA updates, large programs and data-heavy IoT work.

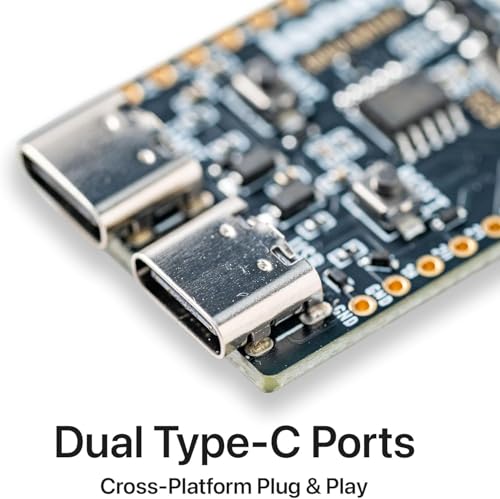

• Two USB-C ports. Separate ports for power and data. Feed 5 V over USB-C or 5–12 V to VIN; never more than 5 V on USB-C.

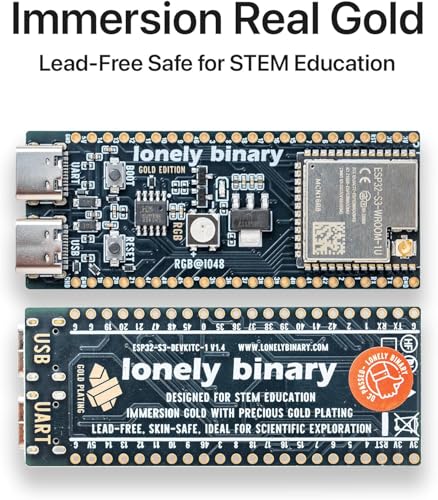

• Gold Edition finish. Black PCB with lead-free ENIG plating and clear silkscreen labels.

In the box

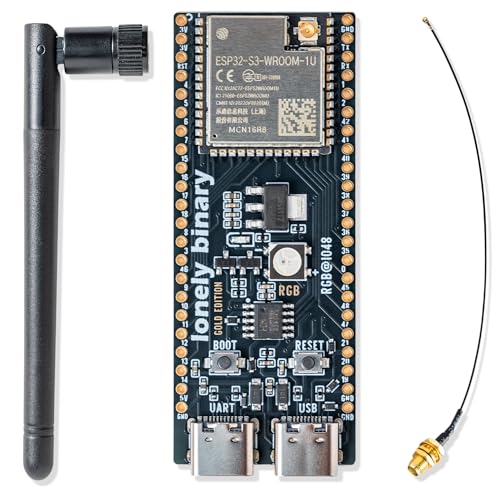

• 1 × ESP32-S3 Gold Edition board (N16R8)
• 1 × IPEX antenna
• Header strips (unsoldered)

Specifications

• Chip: ESP32-S3, dual-core Xtensa LX7 up to 240 MHz

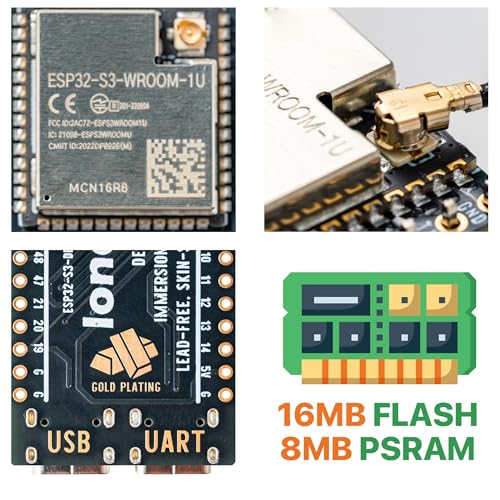

• Memory: 16 MB flash, 8 MB PSRAM
• Wireless: 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5.0 LE
• USB: 2 × USB-C (5 V)
• VIN input: 5–12 V

Works with

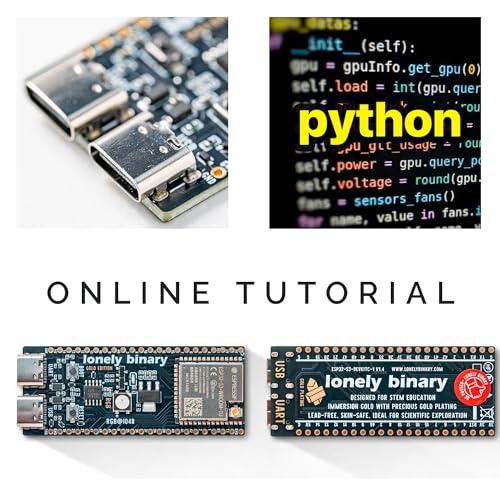

Arduino IDE, MicroPython and ESP-IDF on Windows, macOS and Linux.
