Description

A 58mm thermal label printer module with a USB-C base board that powers it and connects it to your microcontroller over serial. For label, barcode and receipt projects.

Highlights

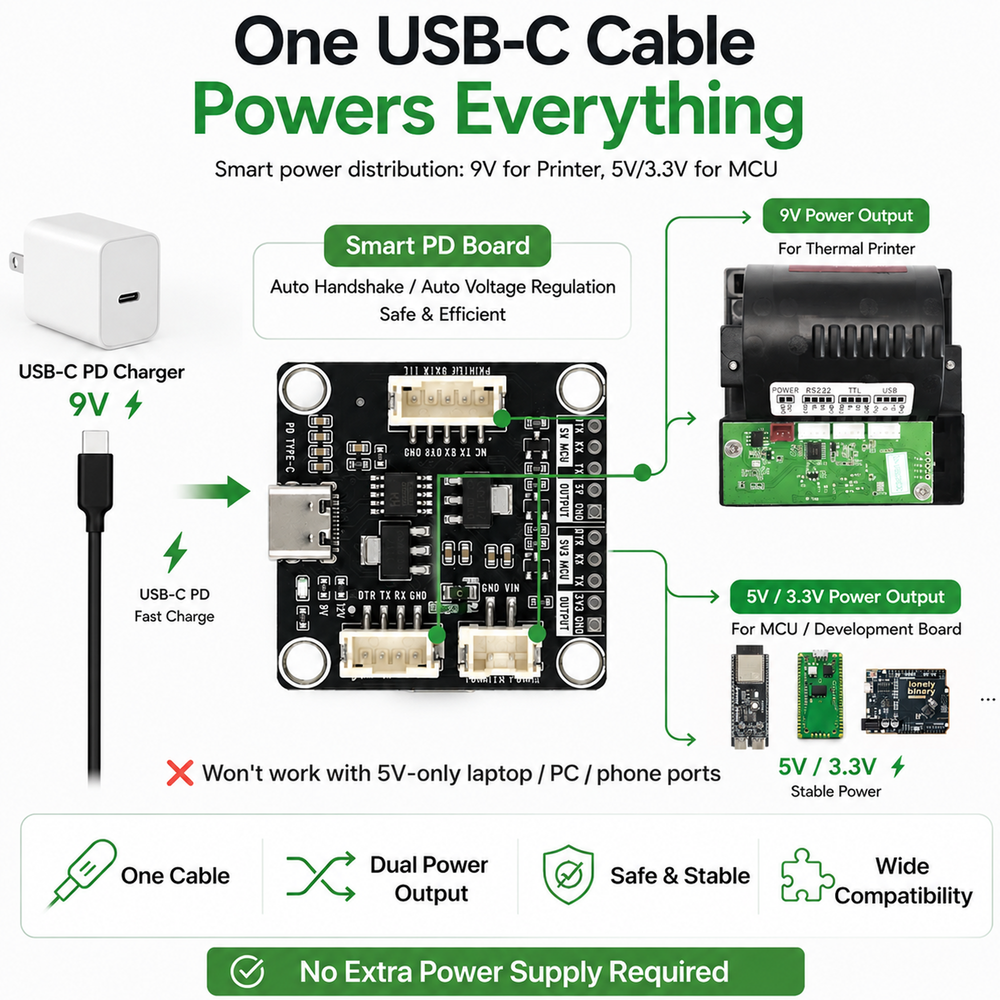

• One USB-C cable. The base board requests 9V from a USB-C PD charger for the printer and supplies your board too.
• Needs a PD charger. A 9V-capable USB-C PD adapter is required; a computer's USB port gives only 5V and will not run the printer.

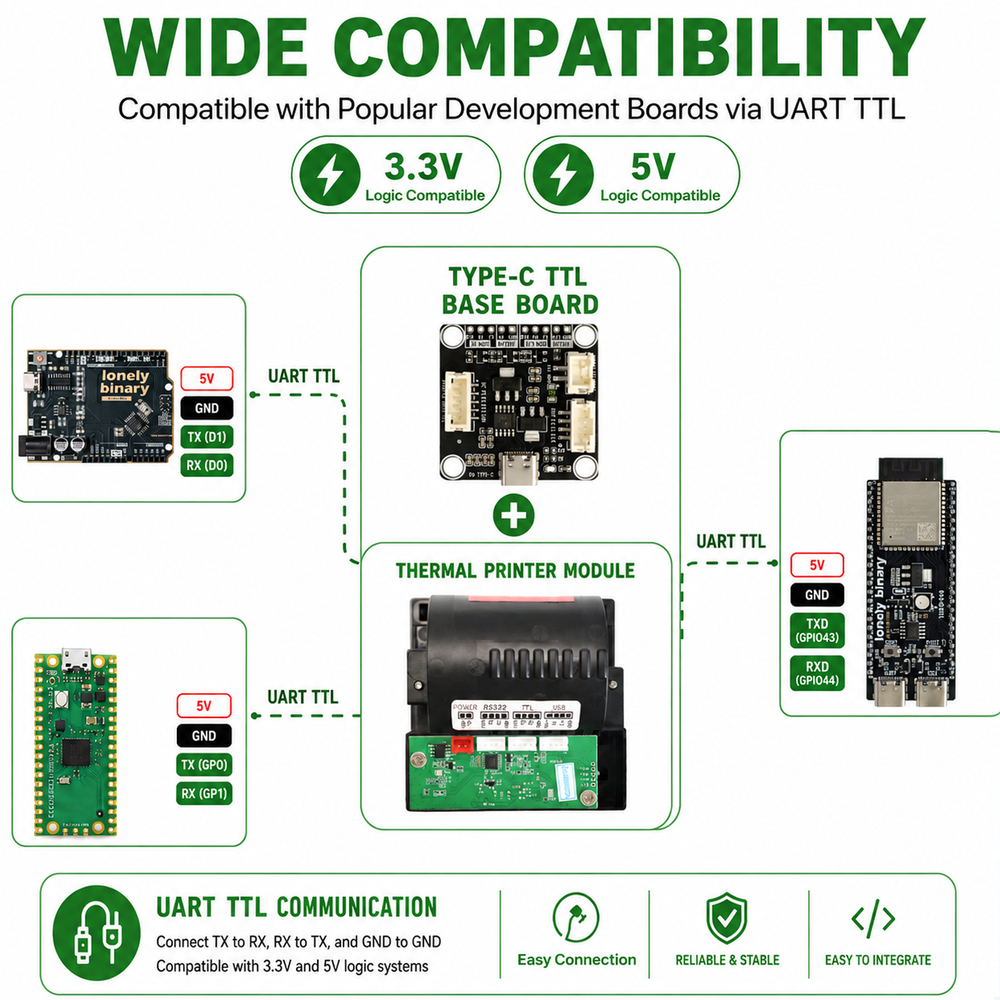

• 3.3V and 5V headers. Separate serial headers for 3.3V boards such as the ESP32, ESP32-S3 or Pico, and for 5V boards such as the Arduino Uno.
• Crisp prints. 203dpi thermal head, up to 80mm/s.
• Cables included. Power and TTL data cables are in the box.

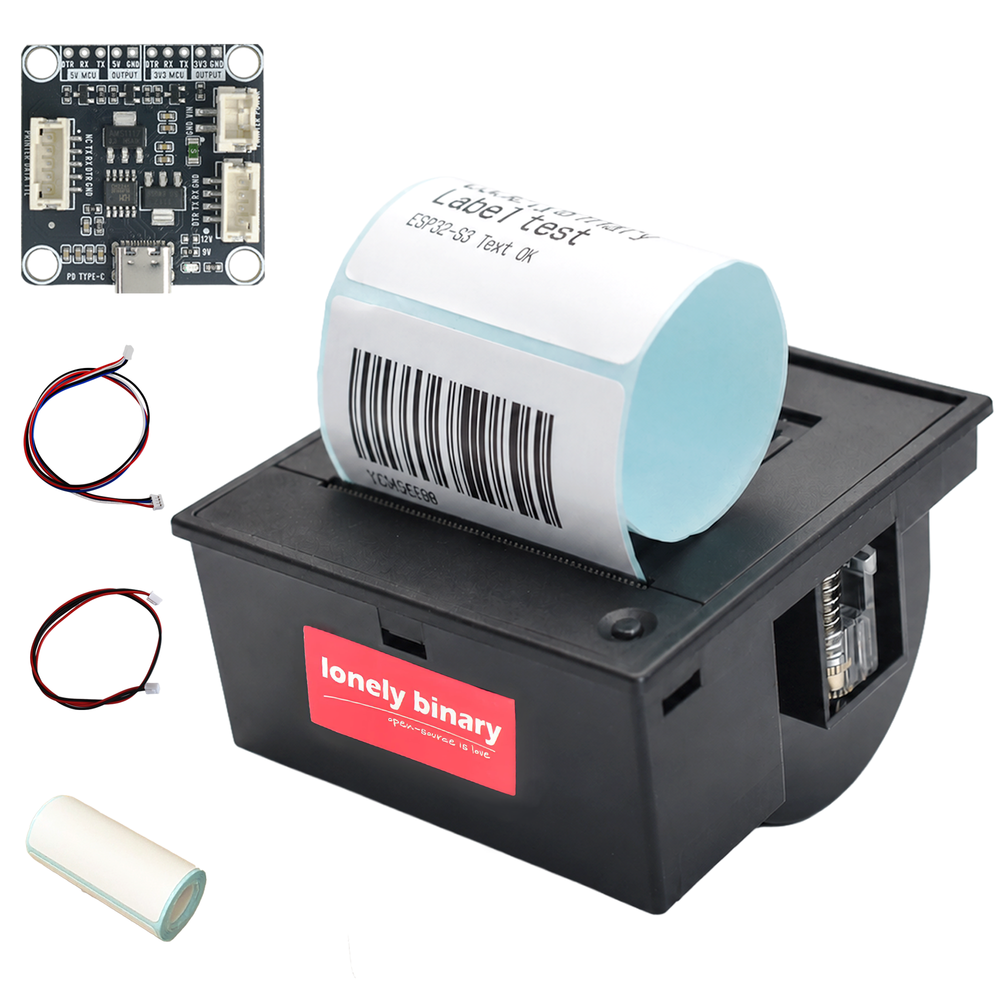

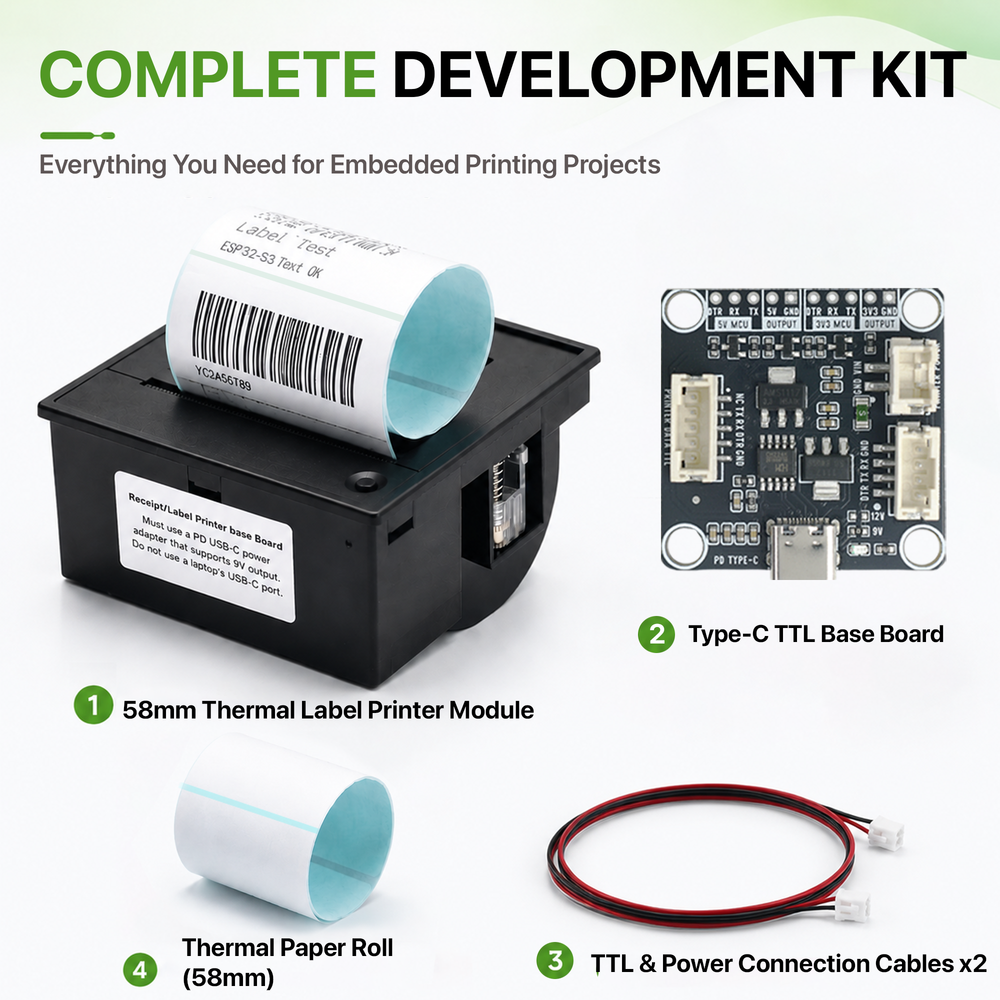

In the box

• 1 × 58mm thermal label printer module
• 1 × Type-C TTL base board
• 1 × 9V power cable
• 1 × TTL data cable

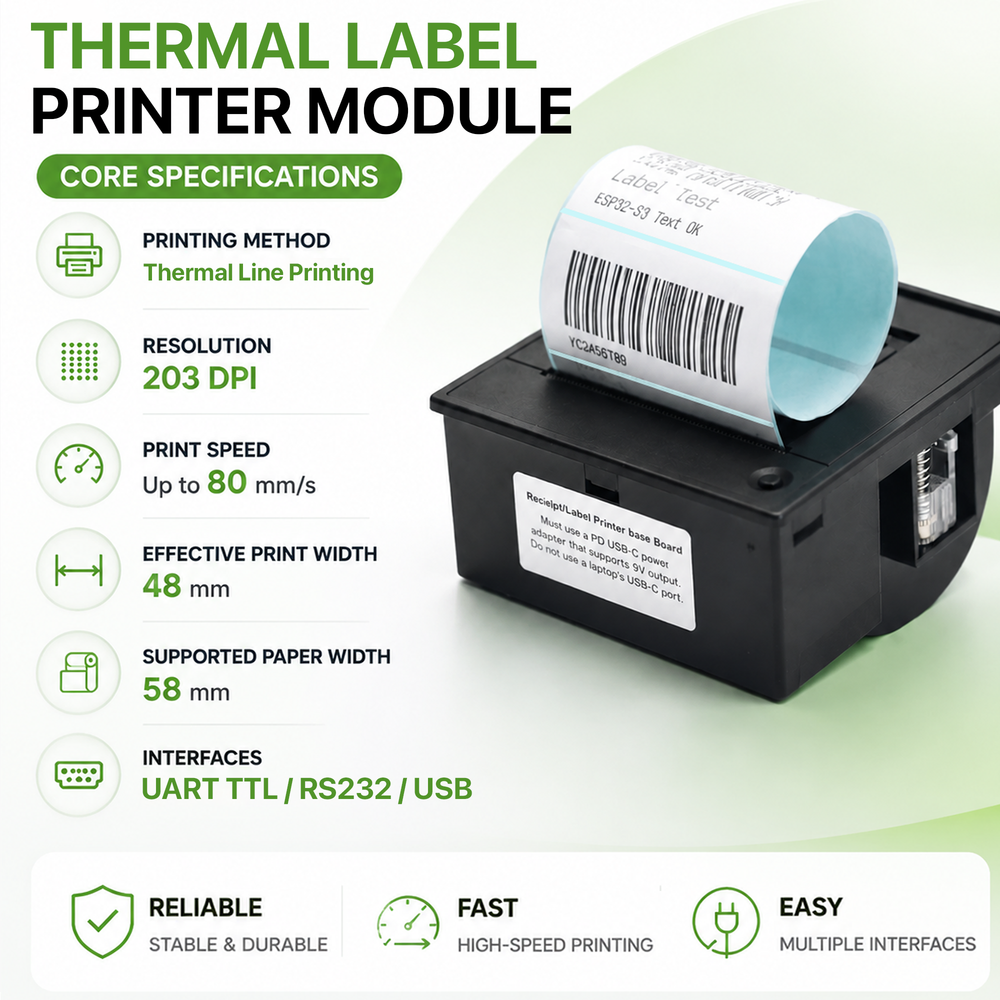

Specifications

• Print method: Thermal line
• Resolution: 203dpi
• Print width: 48mm
• Paper width: 58mm
• Print speed: Up to 80mm/s
• Serial: TTL UART, 115200 baud
• Power: 9V via USB-C PD

Works with

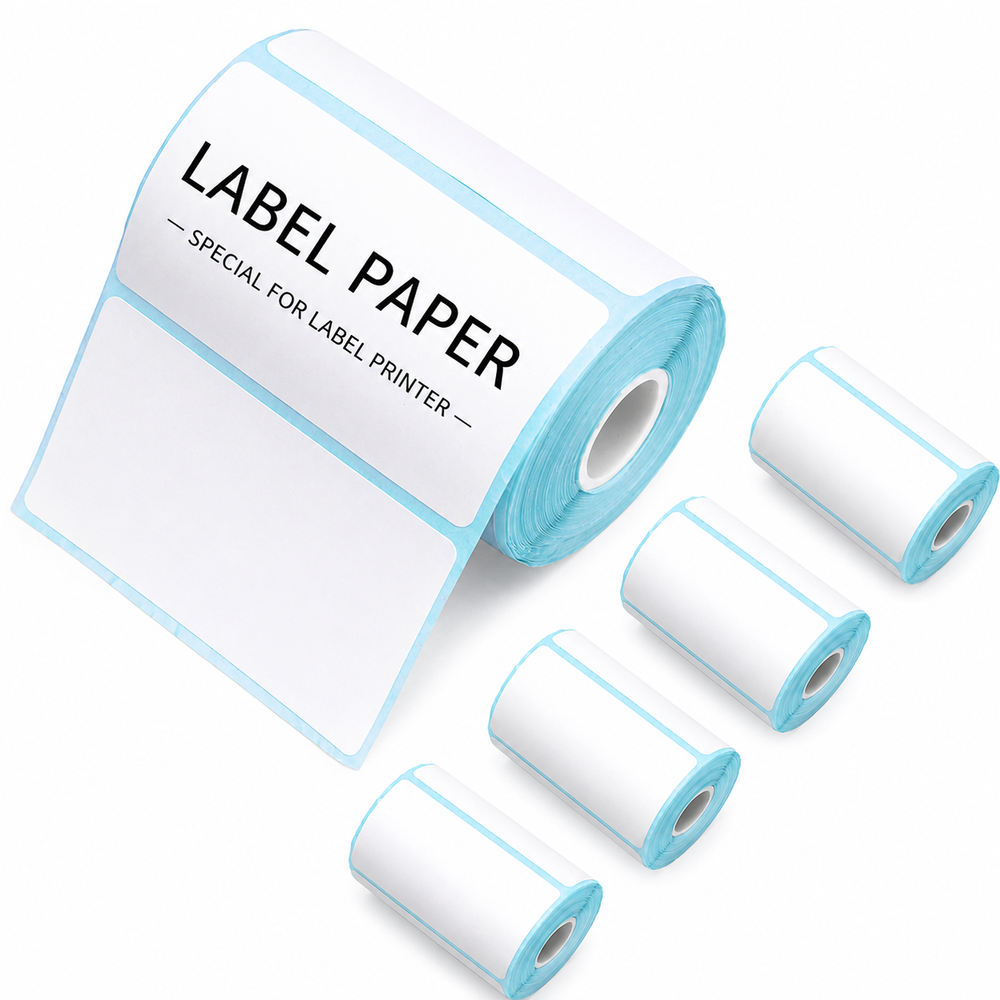

Any microcontroller with a UART, 3.3V or 5V. Sample code and documentation are available. Label rolls can be added as a purchase option.
