0.56" 7-Segment LED + 74HC595 Driver, 24-Pack

A seven-segment display kit: 24 single digits and 12 shift-register driver boards with the resistors already fitted. For clocks, counters, timers and meters.

Highlights

• 24 digits, two kinds. 12 common-cathode and 12 common-anode 0.56-inch red digits.

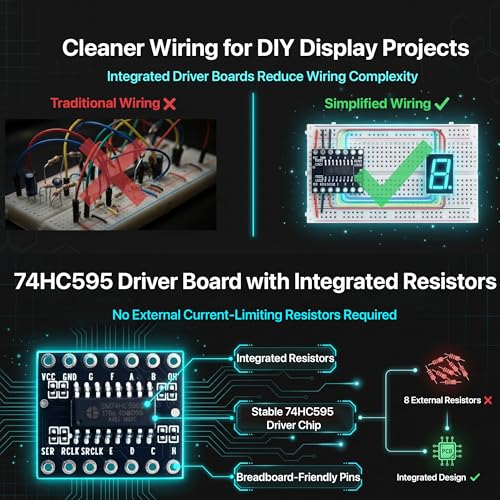

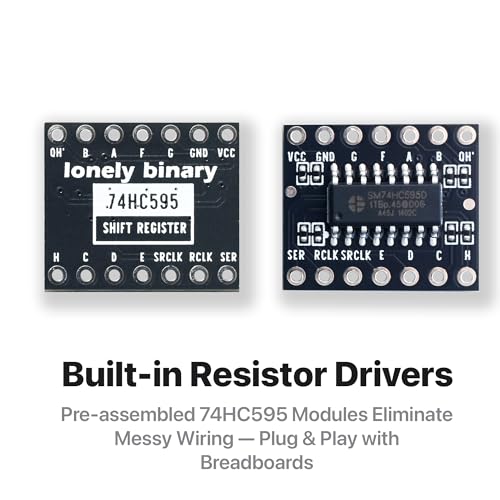

• Resistors fitted. Each 74HC595 driver board carries its eight series resistors, so no loose resistors to wire.
• Three wires for any length. Daisy-chain the driver boards and drive every digit from Data, Clock and Latch. Works with the Arduino shiftOut() function.
• Snap-on enclosures. Each digit gets a printed frame and smoked film for a finished look.
• Know the limit. The 74HC595 is rated to 70mA across the whole chip, which matters when every segment is lit.

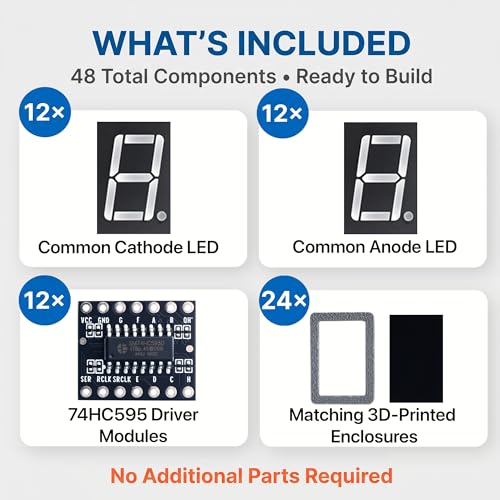

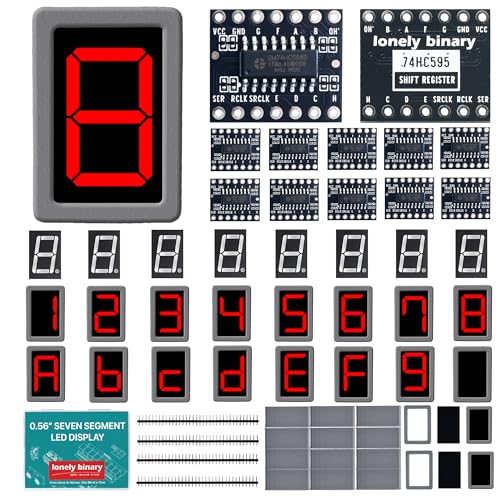

In the box

• 12 × 74HC595 driver board, eight series resistors fitted
• 12 × common-cathode digit (5161AS)

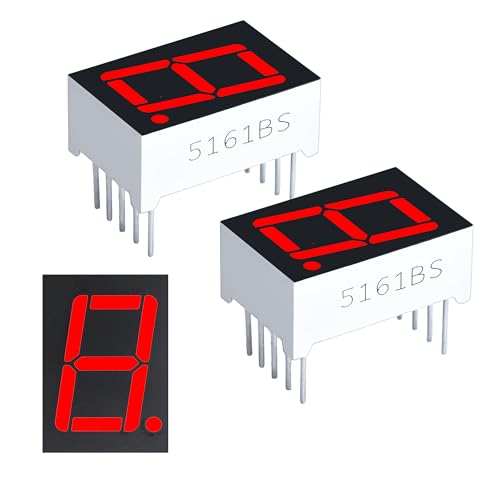

• 12 × common-anode digit (5161BS)
• 24 × snap-on enclosure: printed frame and smoked film
• Male pin header strips for the driver boards

Specifications

• Digit size: 0.56 inch, red
• Driver: 74HC595 shift register
• Interface: Data, Clock, Latch
• Chip current: 70mA maximum

Works with

Arduino IDE boards, ESP32, ESP32-S3, Raspberry Pi Pico and STM32.
