3-Pack 8x8 LED Matrix MAX7219, 3 Colours

• 3-COLOR VARIETY PACK Includes 1 Red, 1 Green, and 1 Blue 8x8 dot matrix LED display module (64 LEDs each, single fixed color per module — not full-color RGB). Mix modules for colorful scrolling text, status indicators, or layered pixel art. Each module is independently controllable.
• 3D-PRINTED ENCLOSURES INCLUDED Three custom-fit 3D-printed PLA cases (Red, Green, Blue to match each module) protect modules from dust and scratches with a finished look — no exposed PCB. Suitable for desktop, wall, or embedded builds.
• CHAINABLE DESIGN, BASIC SOLDERING REQUIRED Each module has labeled IN/OUT ports for daisy-chaining (DOUT to DIN) to build wider displays such as 24x8 scrolling text, retro paddle-and-ball or snake-style games, or animations. Basic soldering required to connect pin headers between modules.
• MAX7219 DRIVER + SPI CONTROL Onboard MAX7219 IC with 16-level software-adjustable brightness, low-power shutdown, and constant-current LED drive. Simple 5-pin SPI control (VCC, GND, DIN, CS, CLK). Power the module from 5V for full brightness, or from 3.3V when you want the data lines to match a 3.3V board such as ESP32 or Raspberry Pi Pico. Works with ESP32, ESP32-S3, ESP8266, Raspberry Pi Pico, STM32, Arduino IDE, MicroPython and CircuitPython.
• ENDLESS PROJECT IDEAS Build scrolling text, retro arcade-style games, notification tickers, weather widgets, audio visualizers, pixel art frames, or educational demos. Sample code on the Lonely Binary GitHub. Australian-designed open-source maker hardware — great for hobbyists, classrooms, makerspaces, or gifting to electronics enthusiasts.

Lonely Binary 3-Pack 8x8 MAX7219 LED Matrix Display Kit

Red, Green, Blue with Custom 3D-Printed Enclosures. Each module features a classic 8x8 grid (64 LEDs) driven by the MAX7219 IC — controllable with minimal pins for a wide range of maker projects.

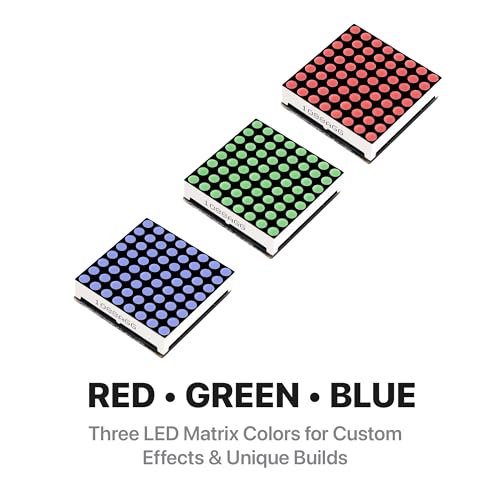

Three Colors in One Pack

Red — retro aesthetic, suitable for scoreboards and notification displays

Green — high visibility, suitable for status indicators and game graphics

Blue — cool tone, suitable for animations and pixel art

Each module is a single fixed color (not full-color RGB).

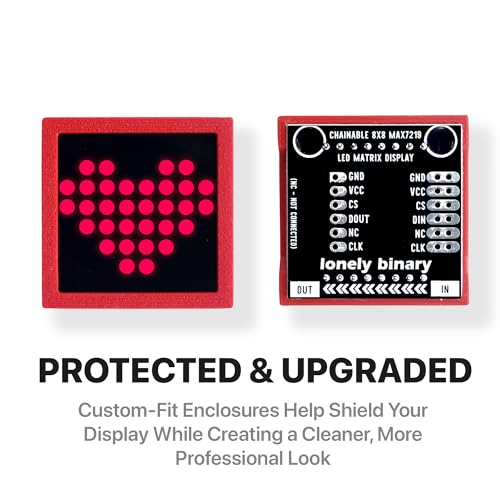

Custom 3D-Printed Enclosures Included

Three precision-fit enclosures (color-matched to each module) protect the LED matrix from dust and scratches with a finished look and no exposed PCB. Suitable for desk, wall, or embedded mounting.

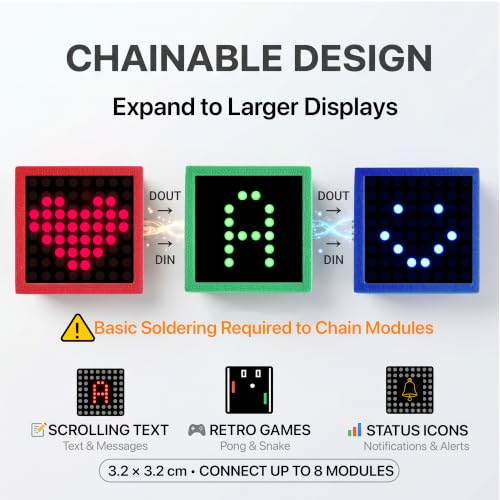

Chainable Design

Each module has labeled IN/OUT ports with DOUT-to-DIN connections for daisy-chaining. Build wider displays such as 24x8 scrolling text banners, multi-color pixel animations, or larger game displays. Basic soldering required to attach pin headers between modules.

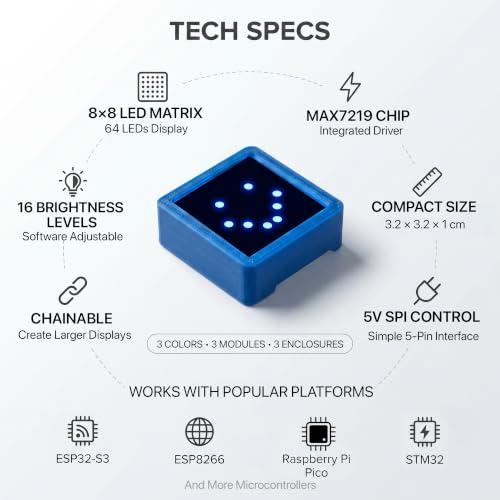

Technical Specifications

Display: 8x8 LED matrix per module (64 LEDs)

Driver: MAX7219 integrated circuit with shift register

Brightness: 16-level software-adjustable via code

Power: 5V DC via VCC pin

Logic: 3.3V or 5V SPI signal compatible

Interface: 5-pin SPI (VCC, GND, DIN, CS, CLK) + DOUT for chaining

Module Size: 3.2 × 3.2 × 1 cm (1.26 × 1.26 × 0.39 inch)

Materials: Standard PCB with 3D-printed PLA enclosures

Compatible With

ESP32, ESP32-S3, ESP8266

Raspberry Pi (via GPIO) and Raspberry Pi Pico

STM32 (F103, F4 Series)

Any 3.3V or 5V microcontroller with SPI support

Programmable through Arduino IDE, MicroPython, and CircuitPython

Project Ideas

Desktop notification ticker, multi-color scoreboard, retro arcade games (Pong, Snake, Tetris), audio visualizer, weather display, ambient pixel art frame, home automation status indicator, or teaching aids in electronics classes.

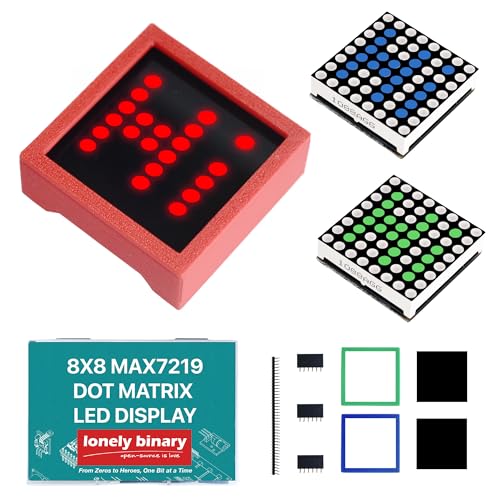

What's in the Box

1 × 8x8 MAX7219 LED Matrix Display Module (Red)

1 × 8x8 MAX7219 LED Matrix Display Module (Green)

1 × 8x8 MAX7219 LED Matrix Display Module (Blue)

3 × Custom 3D-Printed Enclosures (color-matched)

1 × Set of Male Pin Header Strips

3 × Female Header Sockets

Designed in Australia

Lonely Binary is an independent Australian brand focused on open-source maker hardware.
