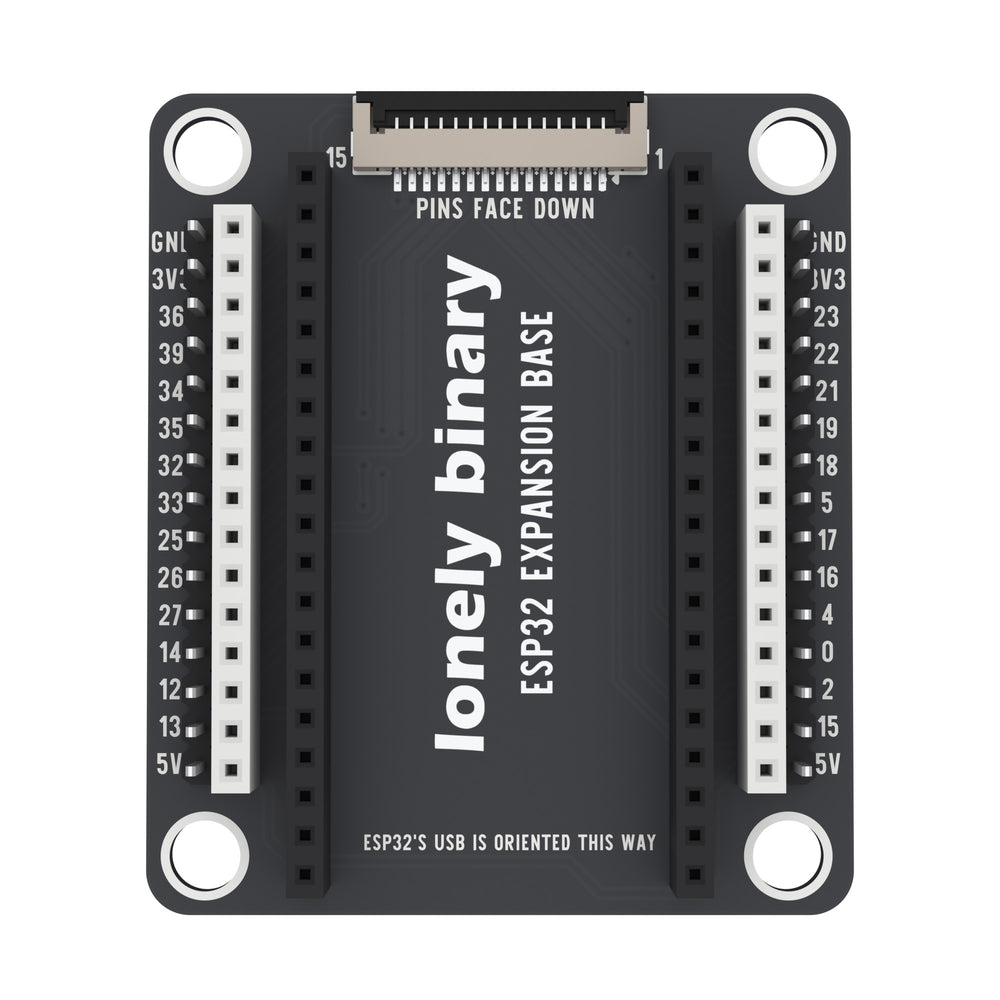

ESP32 Expansion Base seen from above: pin strips either side of the ESP32 sockets

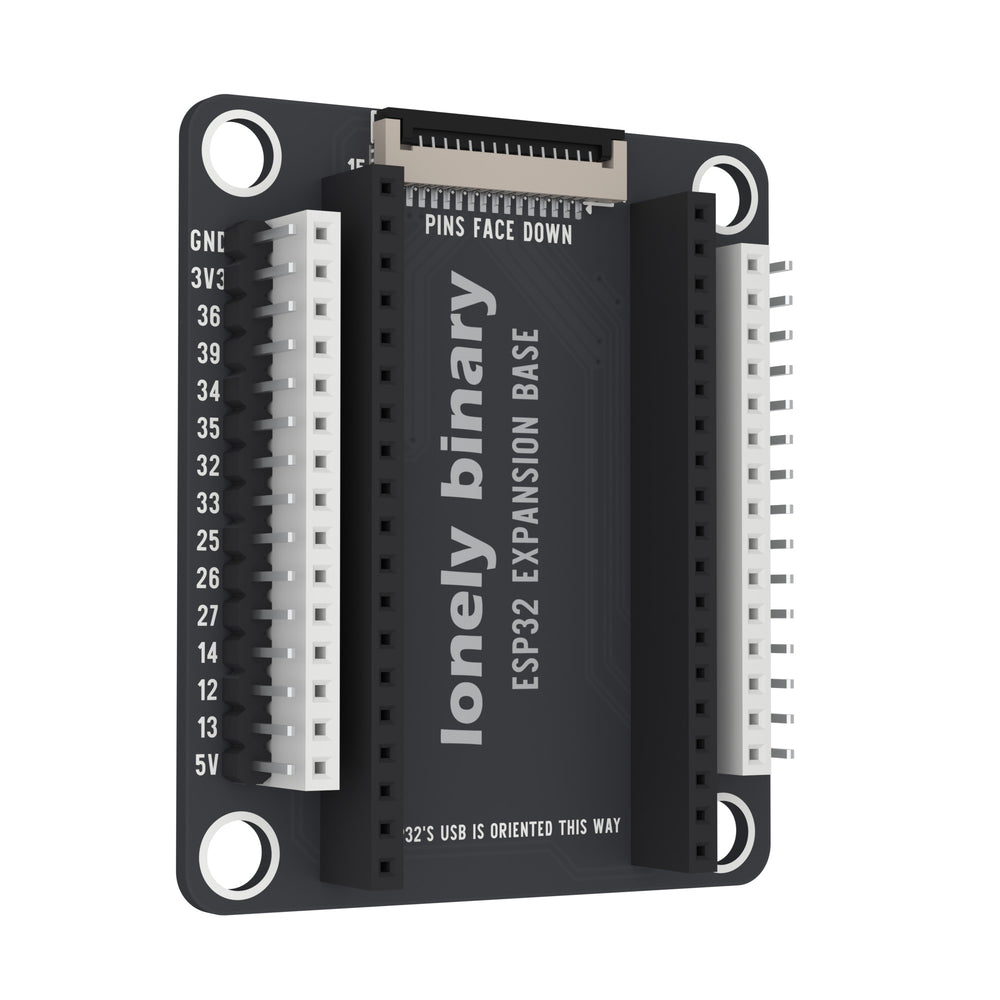

ESP32 Expansion Base swung 30 degrees away on its left edge

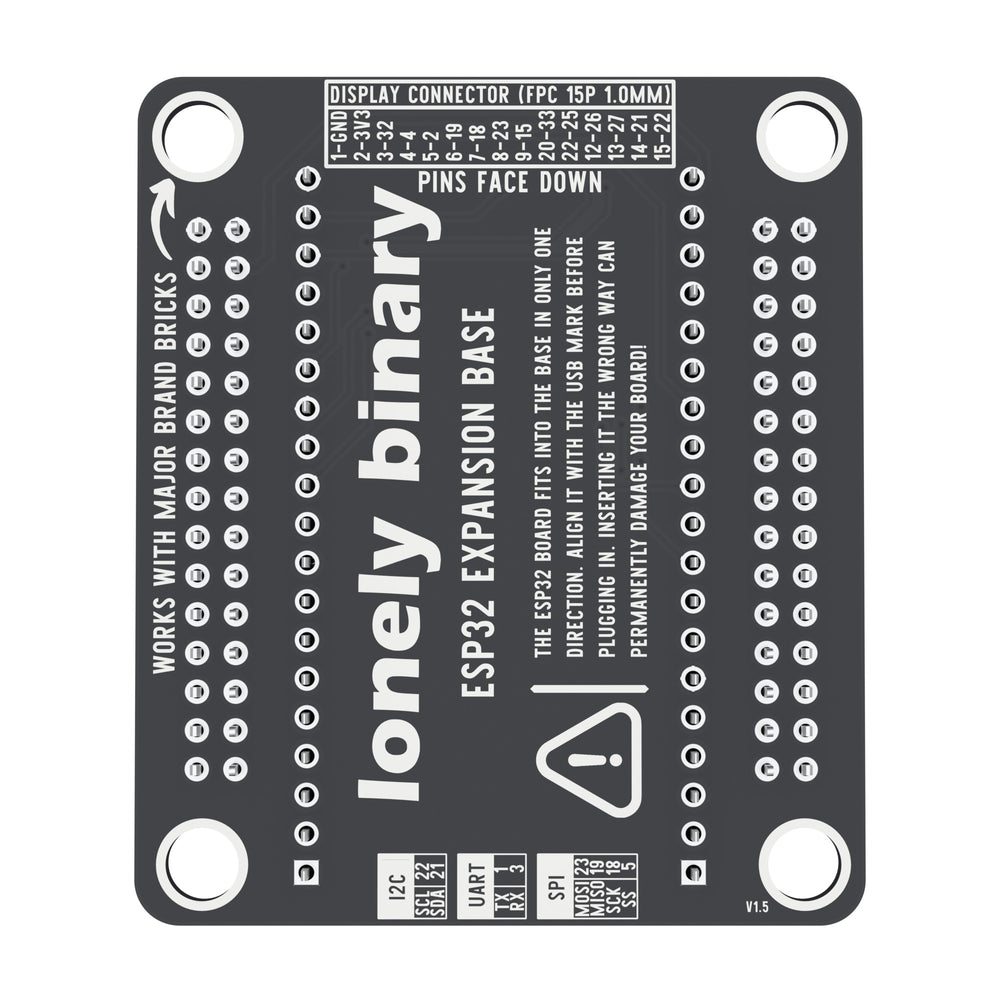

Underside of the ESP32 Expansion Base with the display connector pin mapping

Warranty and returns

12-month warranty on everything we sell. If a part is faulty, we'll replace or refund it and cover the return postage. Damage from soldering, wiring mistakes or modification isn't covered.

Changed your mind? Return it unused within 30 days for a full refund, with no restocking fee.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Full returns policy

Shipping

Free standard shipping within Australia on orders over A$55. Under A$55, standard shipping is A$6.95.

New Zealand A$8.99. Rest of the world A$14.95, flat rate.

Orders ship from Macquarie Park, NSW within one business day of payment when the item is in stock. Shipping policy

Description

A base for the ESP32 that brings every pin out to standard 2.54 mm headers: the board plugs into the two black sockets in the middle and each GPIO comes out to a pin strip on the edge, ready for jumper wires, breadboard leads or header-pin modules.

Highlights

Pin strips on both sides. Two 15-way 2.54 mm strips along each long edge, with the pin names printed beside them. 24 GPIOs plus 3V3, 5V and GND.
Display port. A 15-way FPC connector links Lonely Binary TFT, E-Ink and touch displays with one ribbon cable (displays sold separately).
Four mounting holes for a case or a baseplate.
