Description

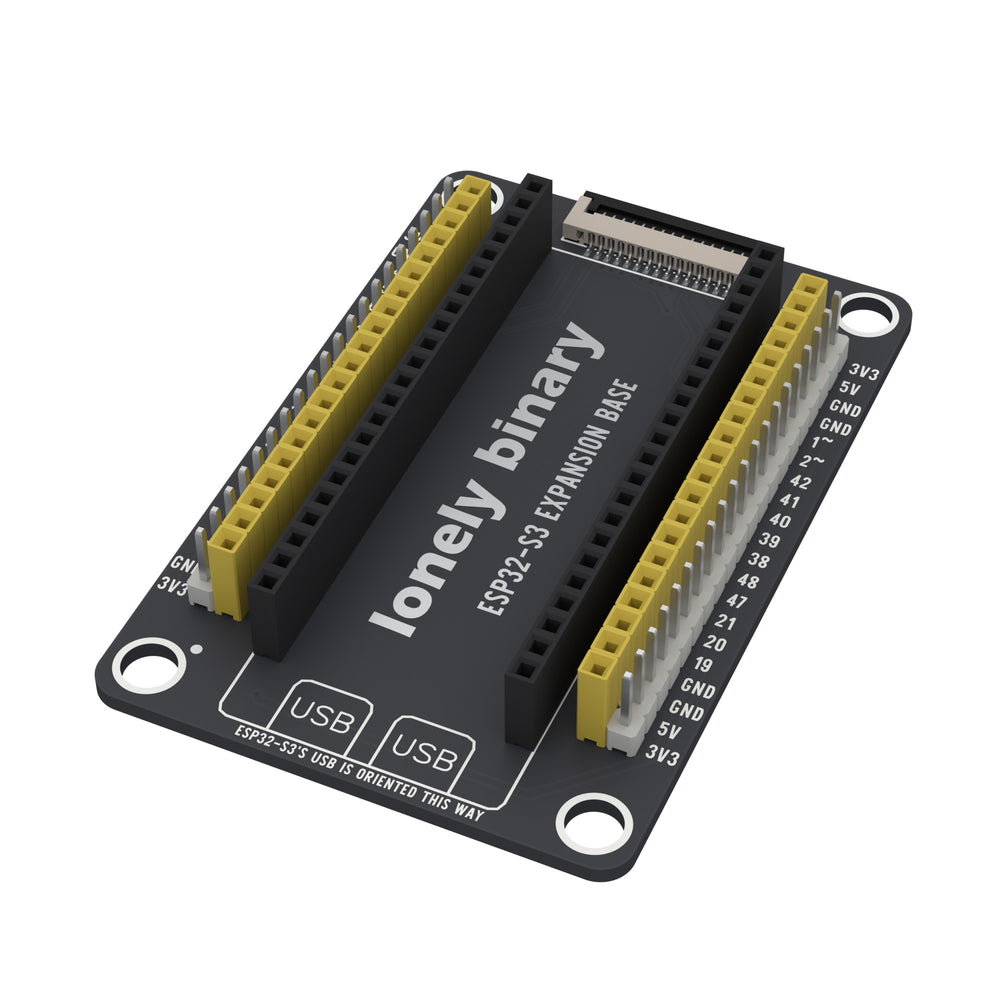

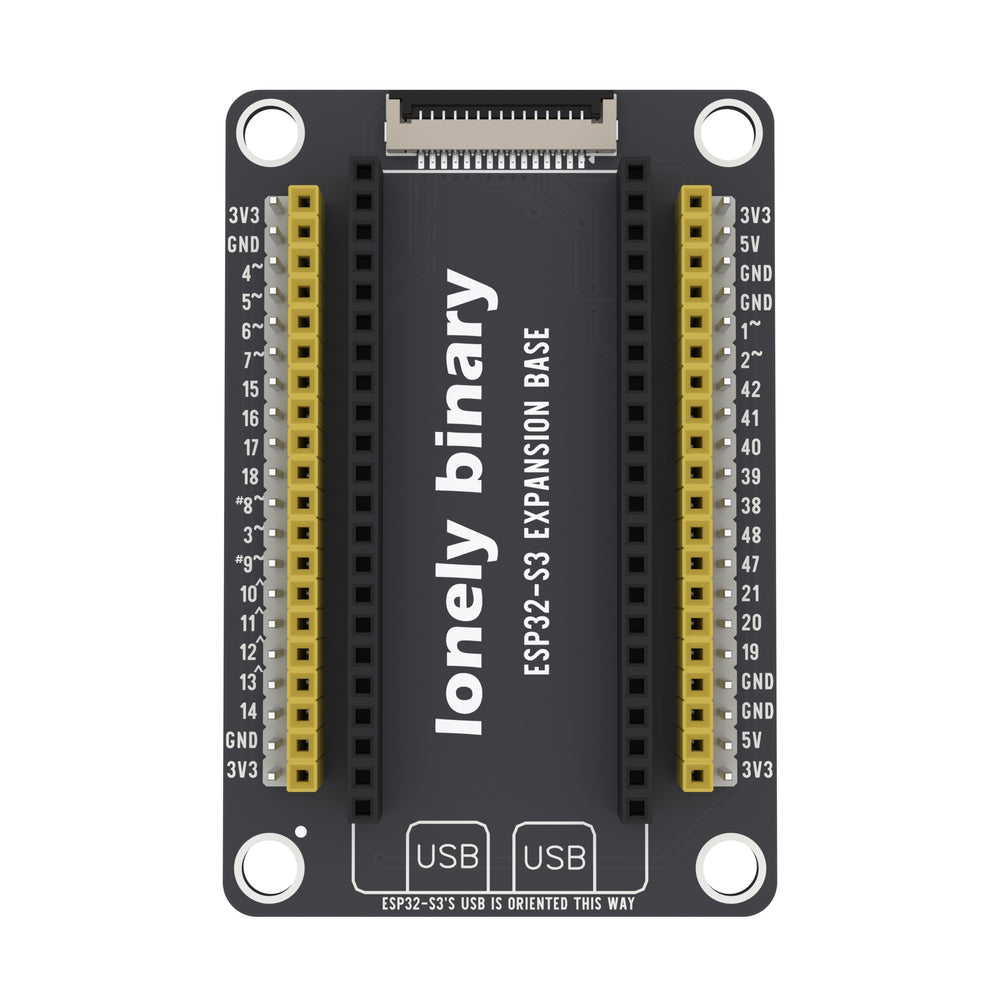

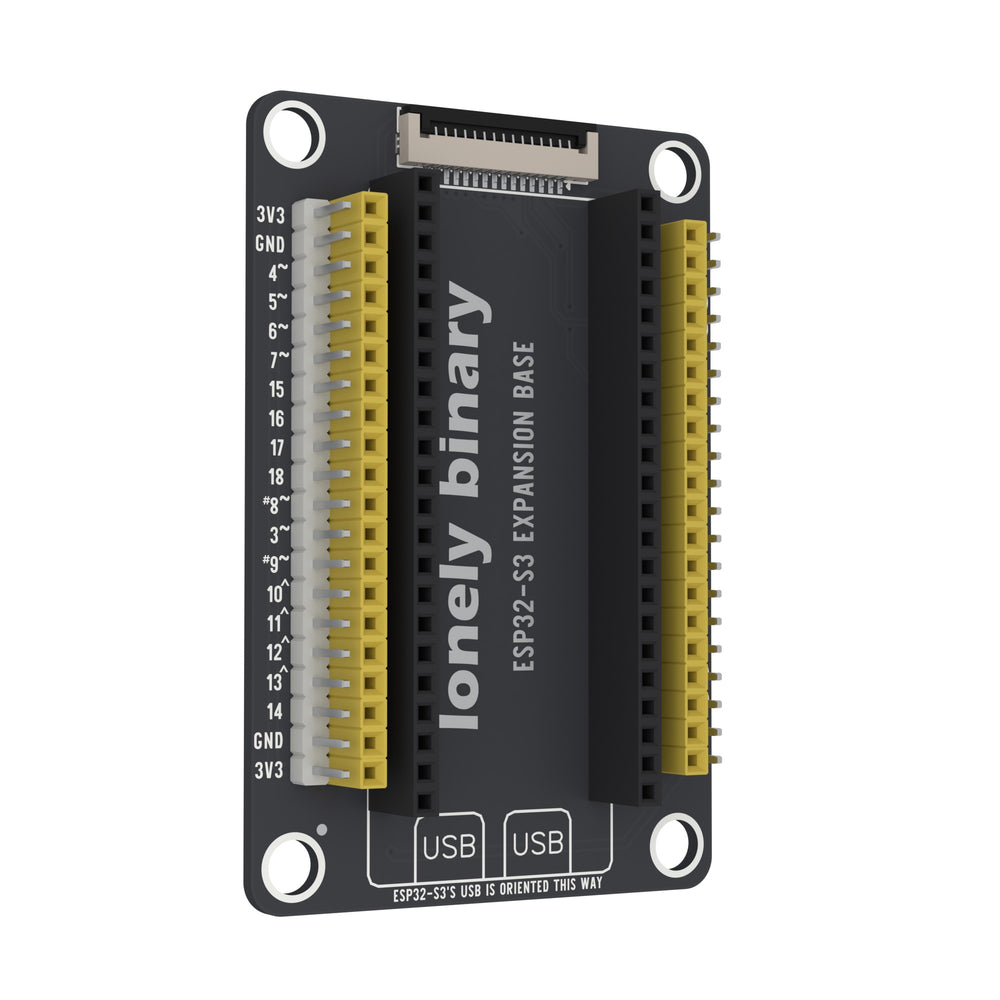

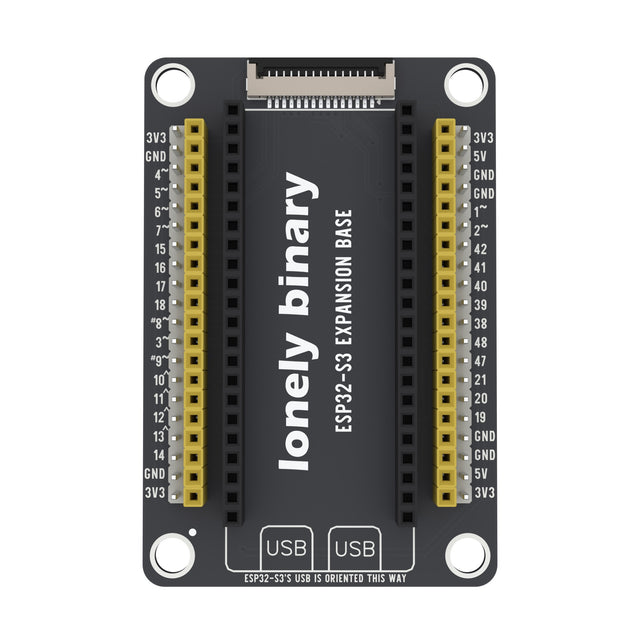

The plainest base for the ESP32-S3: nothing on it but pins. The board plugs into the two black sockets in the middle, and every edge pin comes out again on standard 2.54 mm headers for jumper wires, breadboards and your own modules.
Highlights
- Pin headers. Four 20-way 2.54 mm male strips, two a side.

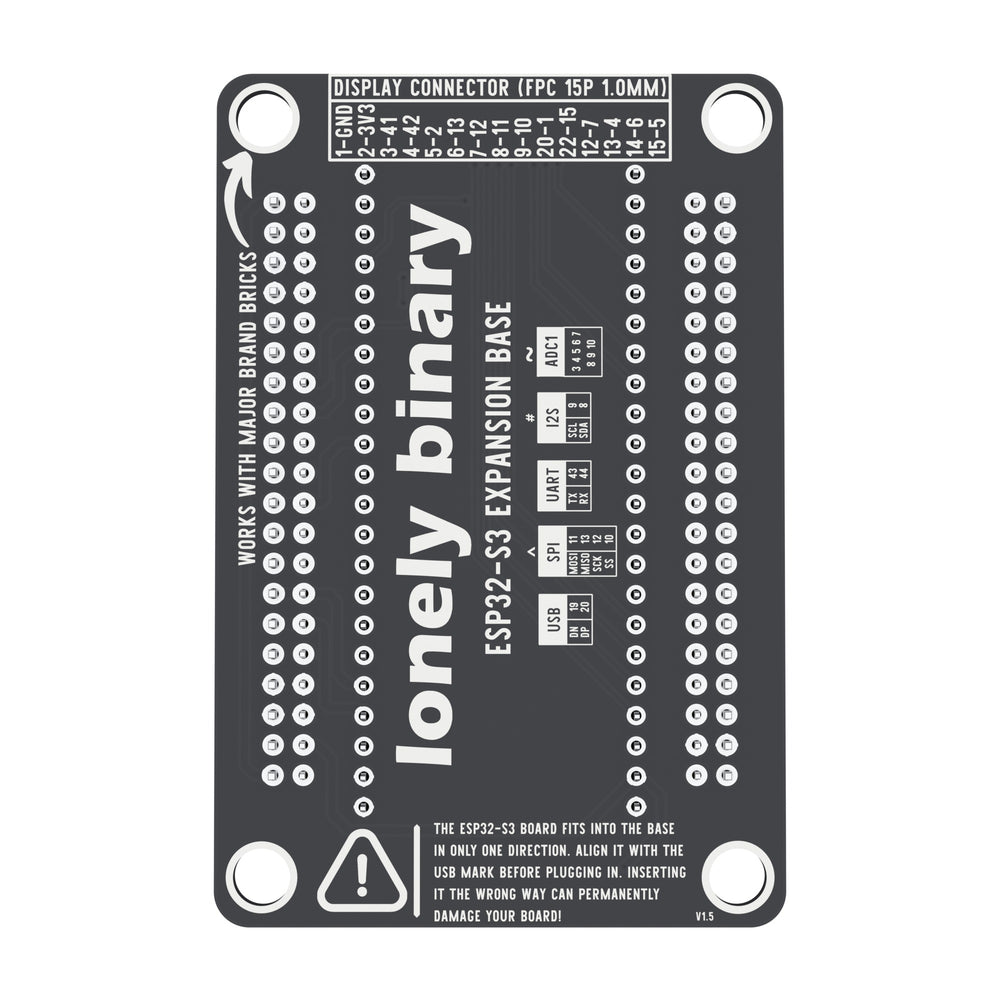

- Display port. A 15-way FPC connector links Lonely Binary TFT, E-Ink and touch displays with one ribbon cable (displays sold separately).
- Four mounting holes for a case or a baseplate.
In the box
- 1 × ESP32-S3 Expansion Base
The ESP32-S3 board is not included.
Specifications
- Pin headers: 4 × 20-way, 2.54 mm pitch, male
- ESP32-S3 sockets: 2 × 22-way, 2.54 mm
- Display connector: 15-way FPC
Questions
ESP32-S3 Expansion Base, 2.54 mm Pins
- Ships worldwide
- 30-day returns
- 12-month warranty
What's in the box
parts, each with its own handbook

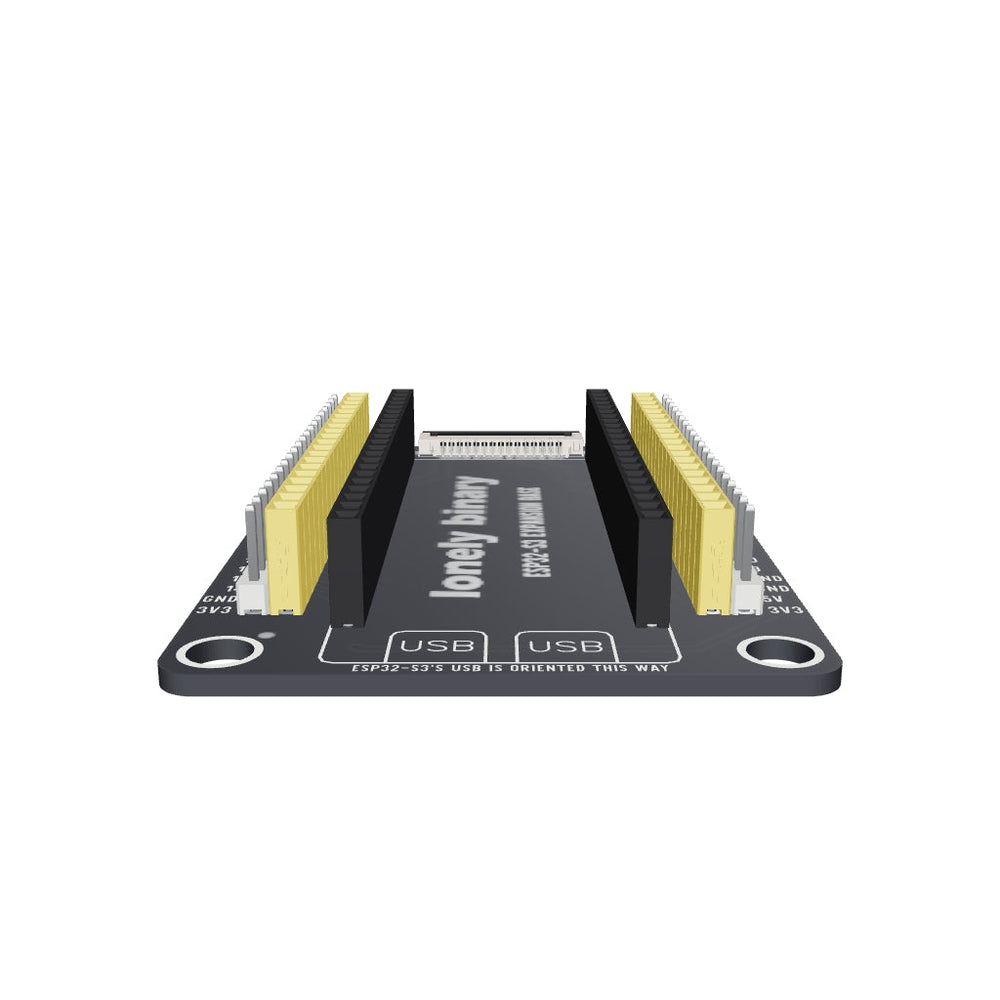

Tap any part for its wiring, example code for Arduino and MicroPython, and a 3D model you can turn over.
