What is the BMP280 Sensor?
The BMP280 sensor module serves as a versatile two-in-one solution for measuring temperature and pressure. It seamlessly interfaces with microcontrollers, offering precise measurements for both barometric pressure and temperature. Its ability to detect altitude changes makes it an effective altimeter, providing accuracy within a ±1 meter range. The sensor ensures a high level of precision, with a ±1 hPa margin for barometric pressure and ±1.0°C for temperature measurements.
What is the BMP280 used for?
The BMP280 is commonly used for measuring barometric pressure and temperature. It finds applications in various fields, including:
1. Weather Stations: BMP280 is used in weather monitoring and forecasting systems to measure atmospheric pressure and temperature, which are crucial for weather predictions.
2. Altitude Measurement: Since barometric pressure changes with altitude, BMP280 can be employed as an altimeter to determine changes in elevation accurately. This is particularly useful for outdoor activities like hiking and aviation.
3. Indoor Navigation: Inertial navigation systems often integrate BMP280 for altitude estimation, improving the accuracy of indoor positioning and navigation in buildings and warehouses.
4. IoT (Internet of Things) Devices: BMP280 is a popular choice for IoT applications, such as environmental monitoring and smart home systems, where it measures temperature and pressure to gather data for climate control, energy efficiency, and more.
5. Drones and UAVs: Unmanned aerial vehicles (UAVs) and drones use BMP280 sensors to assist in altitude control and navigation.
6. Automotive Applications: BMP280 can be found in some automotive systems for monitoring and controlling tire pressure, which is essential for safety and fuel efficiency.
7. Consumer Electronics: It's also used in various consumer electronic devices like smartphones and tablets for enhancing location-based services and improving user experience.
8. Industrial Equipment: BMP280 can be integrated into industrial equipment and machinery for various monitoring and control applications.
In summary, BMP280 is a versatile sensor with applications ranging from weather monitoring and altitude measurement to IoT and consumer electronics, making it valuable in a wide range of industries and devices.
How does BMP280 Sensor Works?
|Air Pressure||300 to 1100hPa|
|Temperature Range||-40 to +85℃|
|Interfaces||I2C and SPI|
The BMP280 sensor module is unique in its support for both I2C and SPI protocols, setting it apart from other sensors that typically support either I2C or SPI. With a remarkable accuracy of ±0.12 hPa, equivalent to a height deviation of ±1 meter, the BMP280 sensor module is highly sought after in a wide range of applications. This versatile sensor comprises three essential elements: a pressure sensing component, a humidity sensing component, and a temperature sensing component, each seamlessly connected to their respective pressure front end, humidity front end, and temperature front end.
The front-end ICs serve as sensitive analog amplifiers designed to magnify subtle signals. The amplified output from this analog front-end IC is then directed to an ADC, where analog values are transformed into digital voltages. These digital voltages are subsequently routed to logic circuits and interfaced with external systems and devices.
The BMP280 sensor module offers three distinct power modes: sleep mode, force mode, and normal mode. During sleep mode, the module remains inactive, conserving power as no measurements are performed. In force mode, a single measurement is executed based on the chosen measurement and filter settings.
Components and Supplies
Sensor Power Supply 3.3V
Serial Clock Pin for I2C and SPI communication
Serial Data Pin for I2C and SPI communication

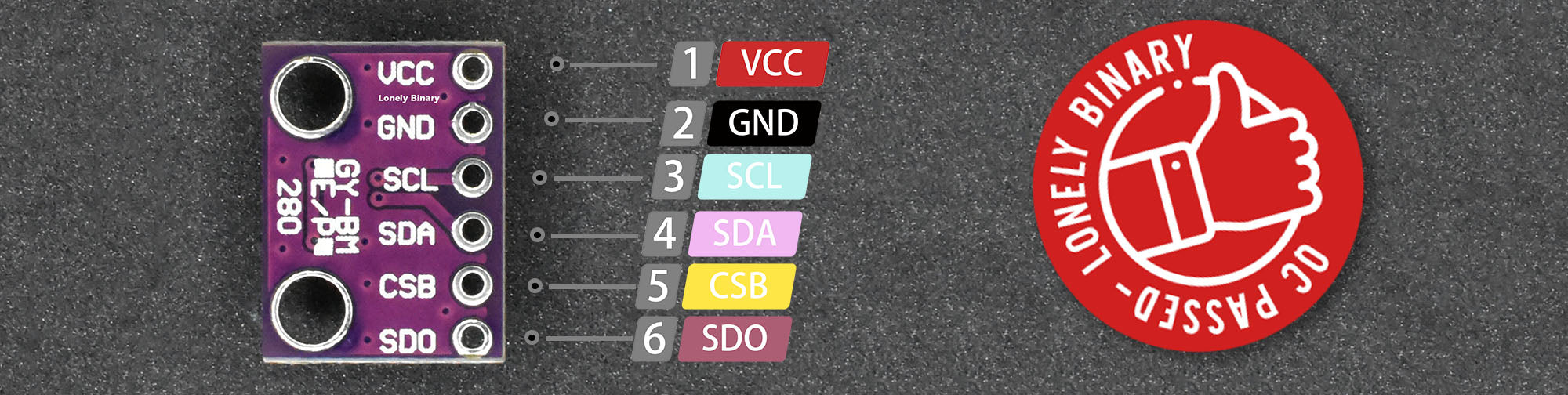

Used to set device address and for SPI communication

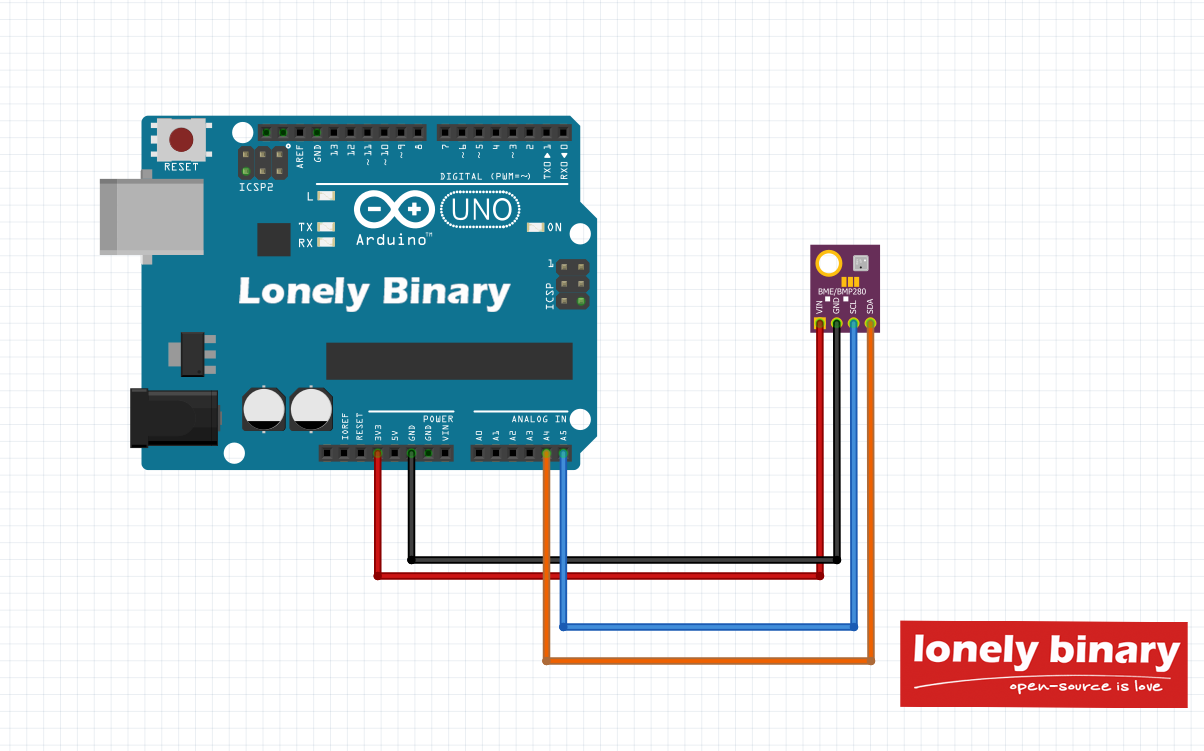

BMP280 Pin:UNO R3 Pin VCC:3.3V GND:GND SCL:A5 SDA:A4

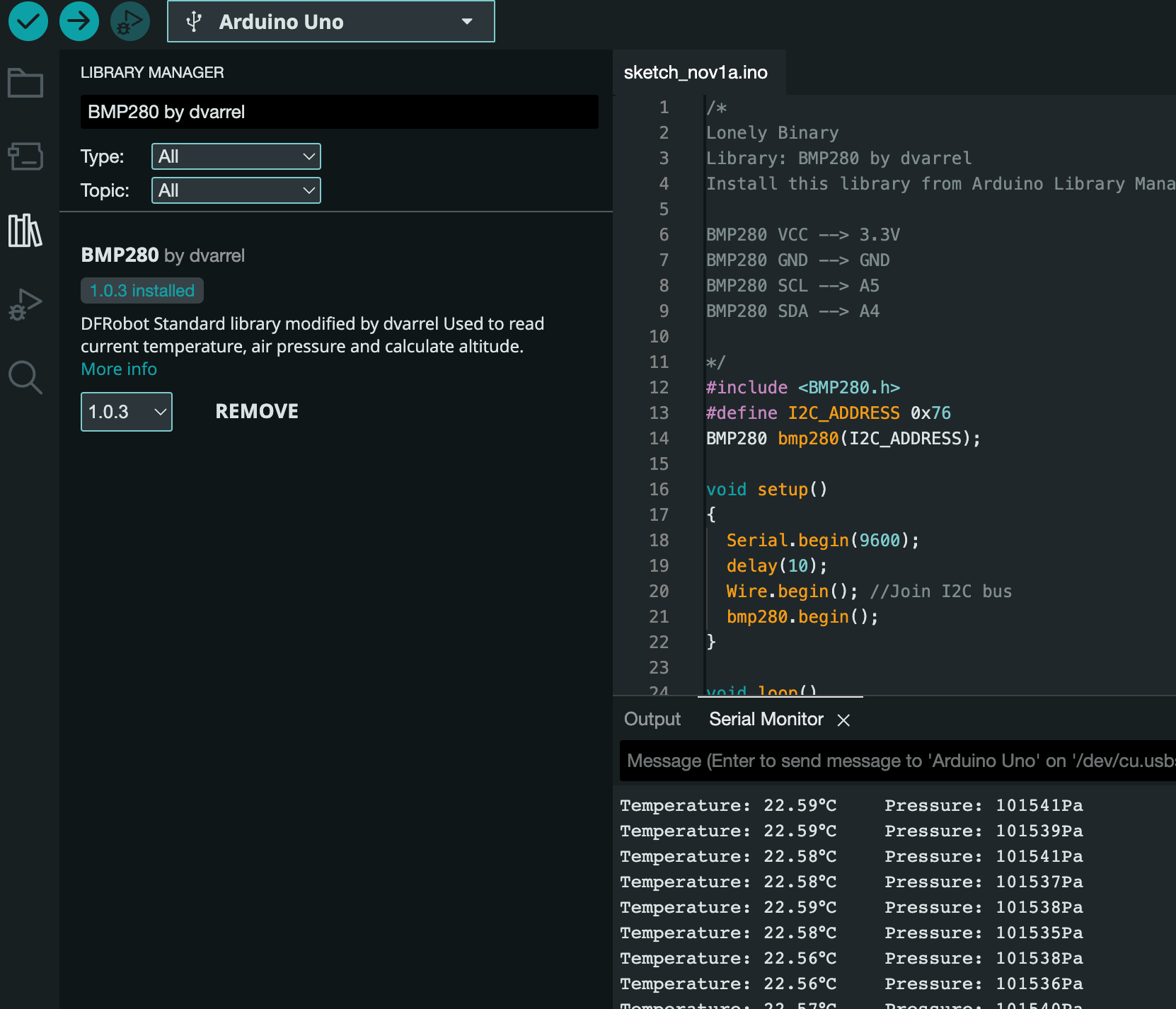

For convenient interfacing with BMP280 Sensor, we suggest using the dvarrel/BMP280 library. This Arduino library is specifically designed for the BMP280 sensor. It utilizes a non-blocking design to optimize CPU performance, ensuring efficient and smooth operation of the sensor modules. Installing a library is a straightforward process that can be done swiftly. To begin, launch the Arduino IDE. Once the editor is open, direct your attention to the left column. Here, you'll notice a few icons. Locate and click on the "library" icon. Instantly, a comprehensive list of all the libraries at your disposal will materialize. You also have the option to search for a specific library. Once you've identified the desired library, simply click on the "INSTALL" button, and the installation process will commence.
Installing a library is a straightforward process that can be done swiftly. To begin, launch the Arduino IDE. Once the editor is open, direct your attention to the left column. Here, you'll notice a few icons. Locate and click on the "library" icon. Instantly, a comprehensive list of all the libraries at your disposal will materialize. You also have the option to search for a specific library. Once you've identified the desired library, simply click on the "INSTALL" button, and the installation process will commence.
