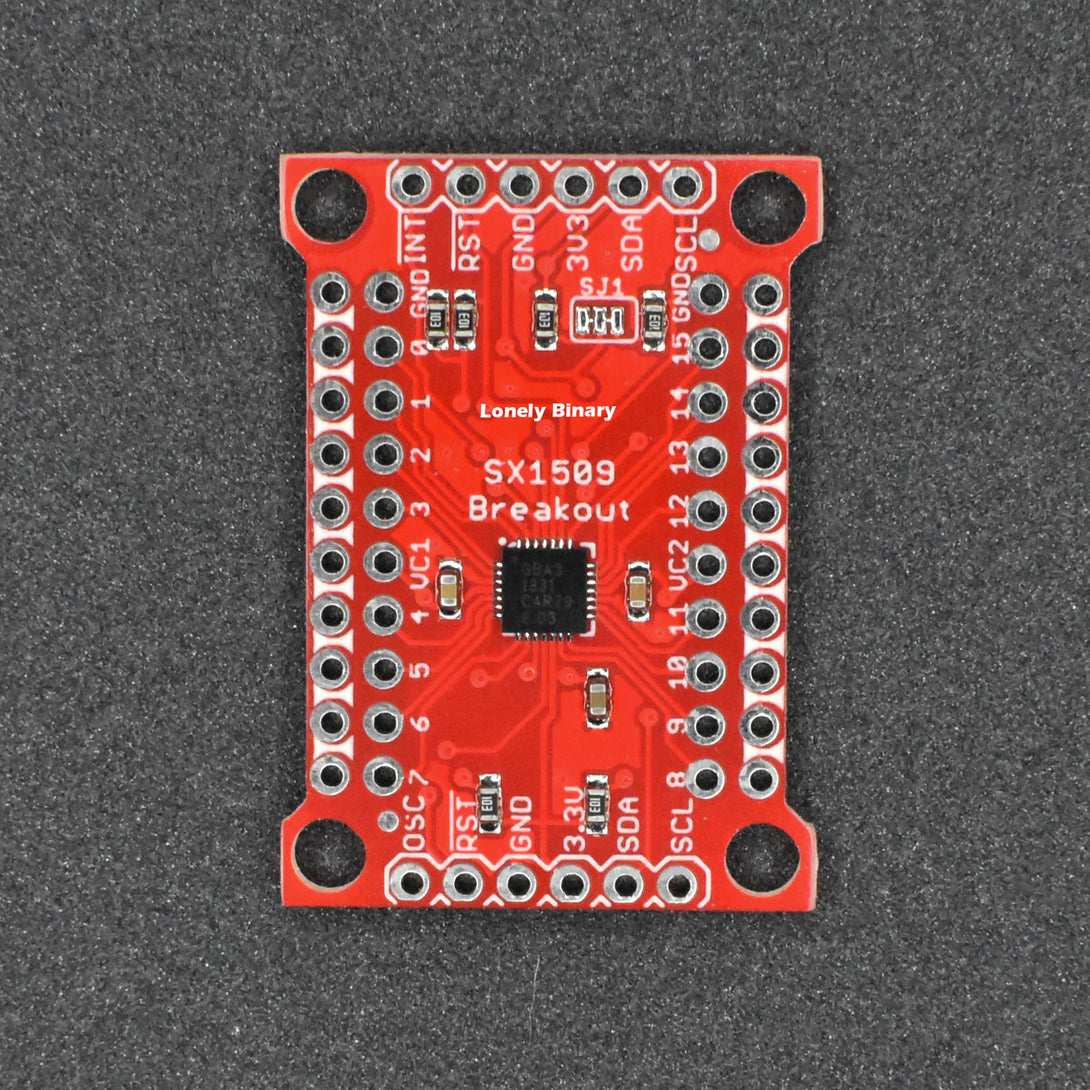

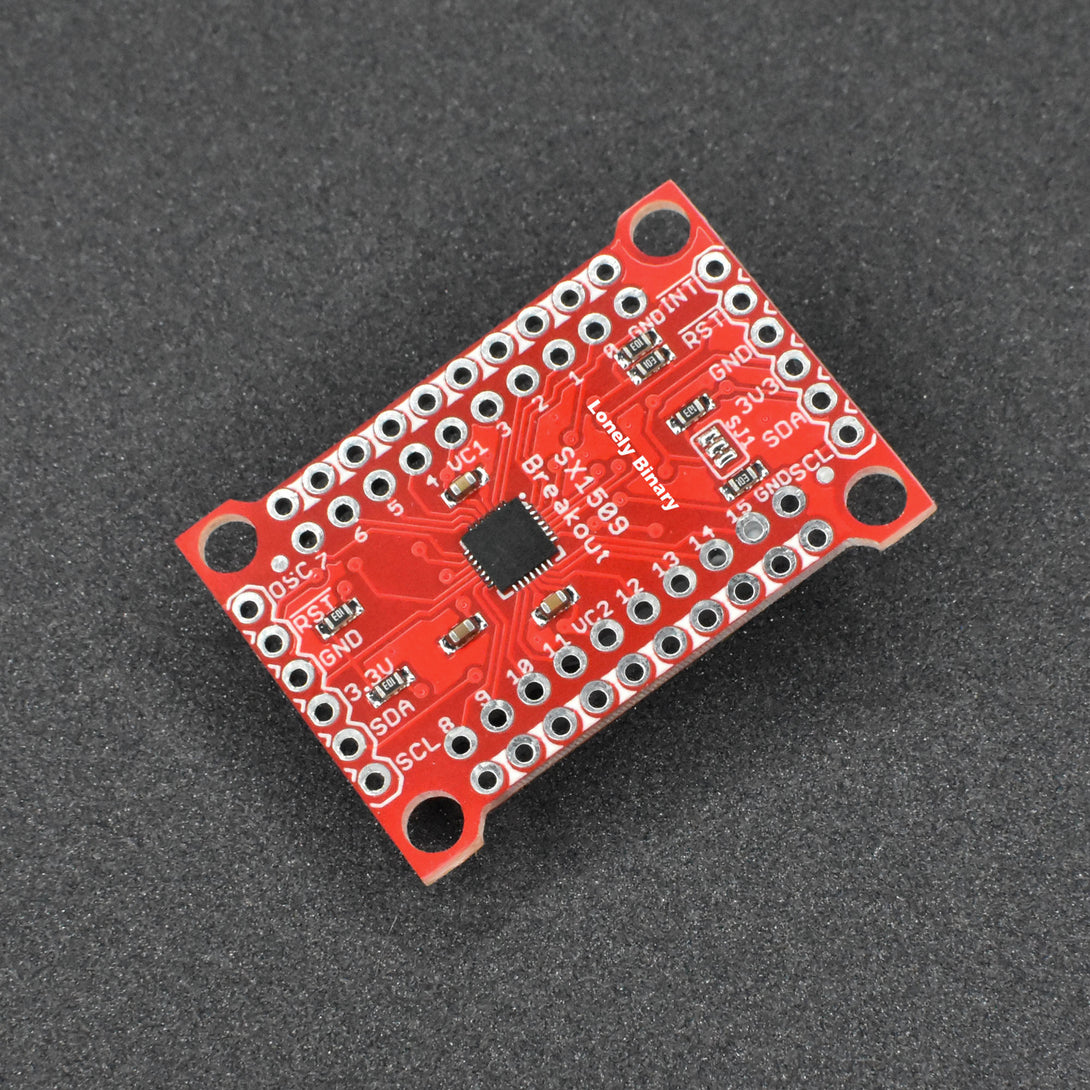

SX1509 16 Channel Digital IO Expansion Module
Introducing the Lonely Binary SX1509: Your ultimate wingman in the realm of GPIO expansion! Brace yourself for an electrifying adventure as we unveil this extraordinary creation, exclusively crafted by the ingenious minds at Lonely Binary.
Picture this: You have a microcontroller yearning for more pins, eager to connect and conquer the digital landscape. Enter the SX1509 Breakout, dressed in all its glory, ready to turn your dreams of limitless connectivity into a reality. With just two wires, Lonely Binary ignites a symphony of possibilities as your microcontroller dances with 16 fully configurable digital input/output pins. It's like a magic trick, transforming mere wires into an enchanting pathway to connection.
But wait, there's more! The SX1509 Breakout isn't just your run-of-the-mill GPIO expander. Oh no, dear friend, it's a multi-talented maestro that conducts a grand orchestra of functionality. Prepare to be dazzled as it produces mesmerizing PWM signals, allowing you to dim LEDs and set the mood for your technological symphony. With a wink and a nod, it can make pins blink and breathe at varying rates, adding a touch of whimsy to your digital creations. It's like having a digital DJ at your command, creating a symphony of lights and movements.
And that's not all! The SX1509 Breakout boasts a built-in keypad engine, ready to unlock the secrets of up to 64 buttons arranged in an 8x8 matrix. It's like a maestro with a musical keypad, allowing you to compose melodies of interaction with a touch. Let your creativity run wild as you engage with a multitude of buttons, opening doors to a realm of interactivity and exploration.
With the Lonely Binary SX1509 by your side, the possibilities are as vast as the universe itself. It's your companion in the pursuit of technological greatness, where Lonely Binary's brand of magic meets the marvels of connectivity. Embrace the symphony of pins, LEDs, and buttons, and let Lonely Binary guide you on a journey of creative expression like no other.
Tech Specs
Seamless Level Shifting | The Lonely Binary SX1509 enables direct level shifting between I/O banks and your host controller, ensuring seamless communication and compatibility between different voltage levels. It's like a bridge that effortlessly connects the dots of your digital world. |
Robust I/Os | With 5.5V tolerant I/Os and up to 15mA output sink on all I/Os, the SX1509 delivers robust performance, giving you the power to drive various devices and components with ease. It's like a dependable powerhouse that never fails to deliver. |
Integrated LED Driver | Experience the magic of illumination with the SX1509's integrated LED driver. With intensity control at your fingertips, you can create mesmerizing lighting effects that will leave you in awe. It's like having a lighting maestro in the palm of your hand. |
Keypad Scanning Engine | Unlock the potential of up to 64 keys with the SX1509's built-in keypad scanning engine. Whether you're designing interactive interfaces or exploring new realms of control, this feature empowers you to bring your ideas to life. It's like having a keypad virtuoso at your command. |
Bi-directional Style I/O | The SX1509 offers 16 channels of true bi-directional style I/O, providing you with flexibility and versatility in your digital projects. It's like having a multi-tool that adapts to your every need, enabling seamless bidirectional communication. |
I2C Compatibility | With a 400kHz I2C compatible slave interface, the SX1509 ensures fast and reliable communication with your host controller. It's like having a high-speed expressway that keeps your data flowing smoothly. |
Net Weight | 3 g |

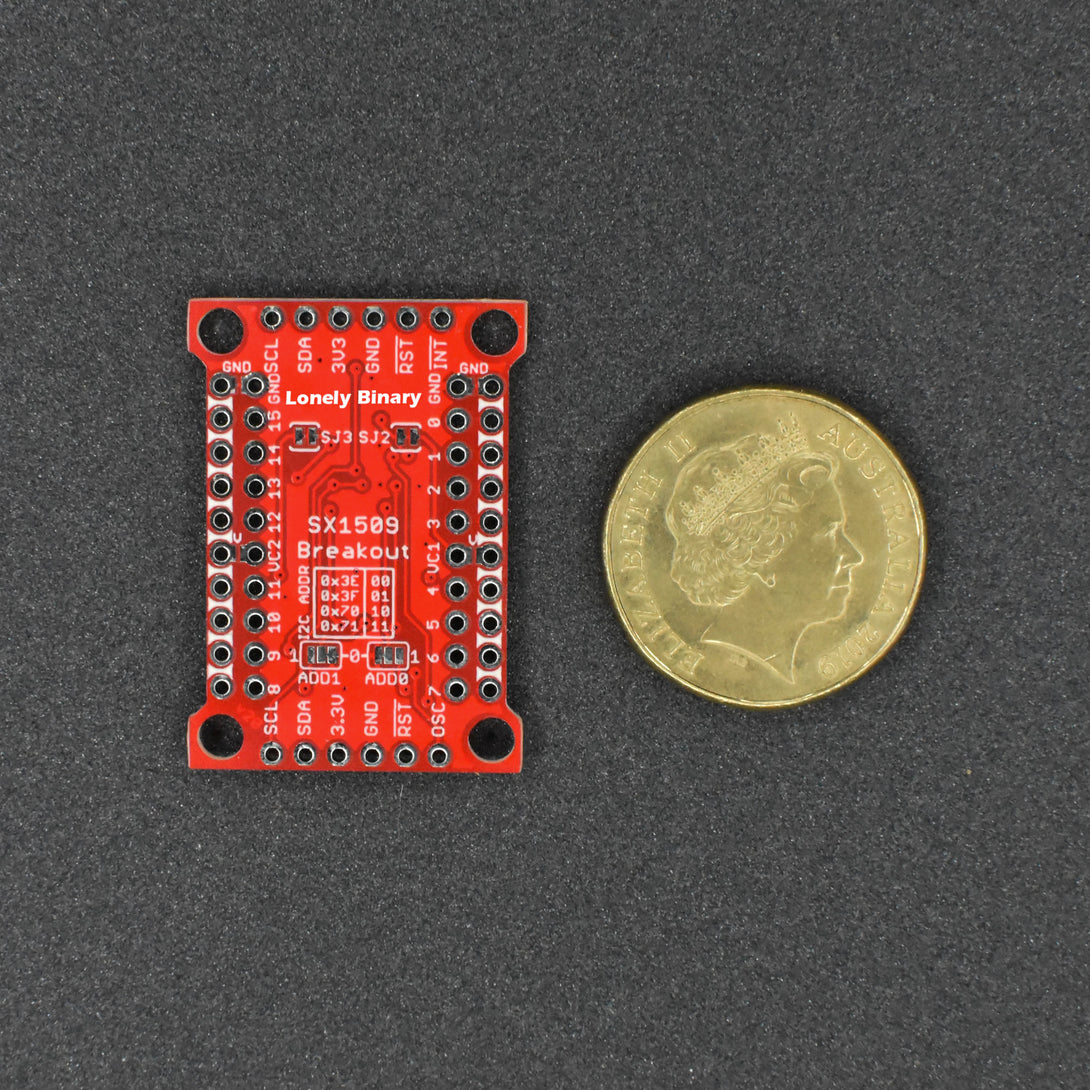

Dimension | (L) 35 mm x (W) 25 mm x (H) 3 mm |

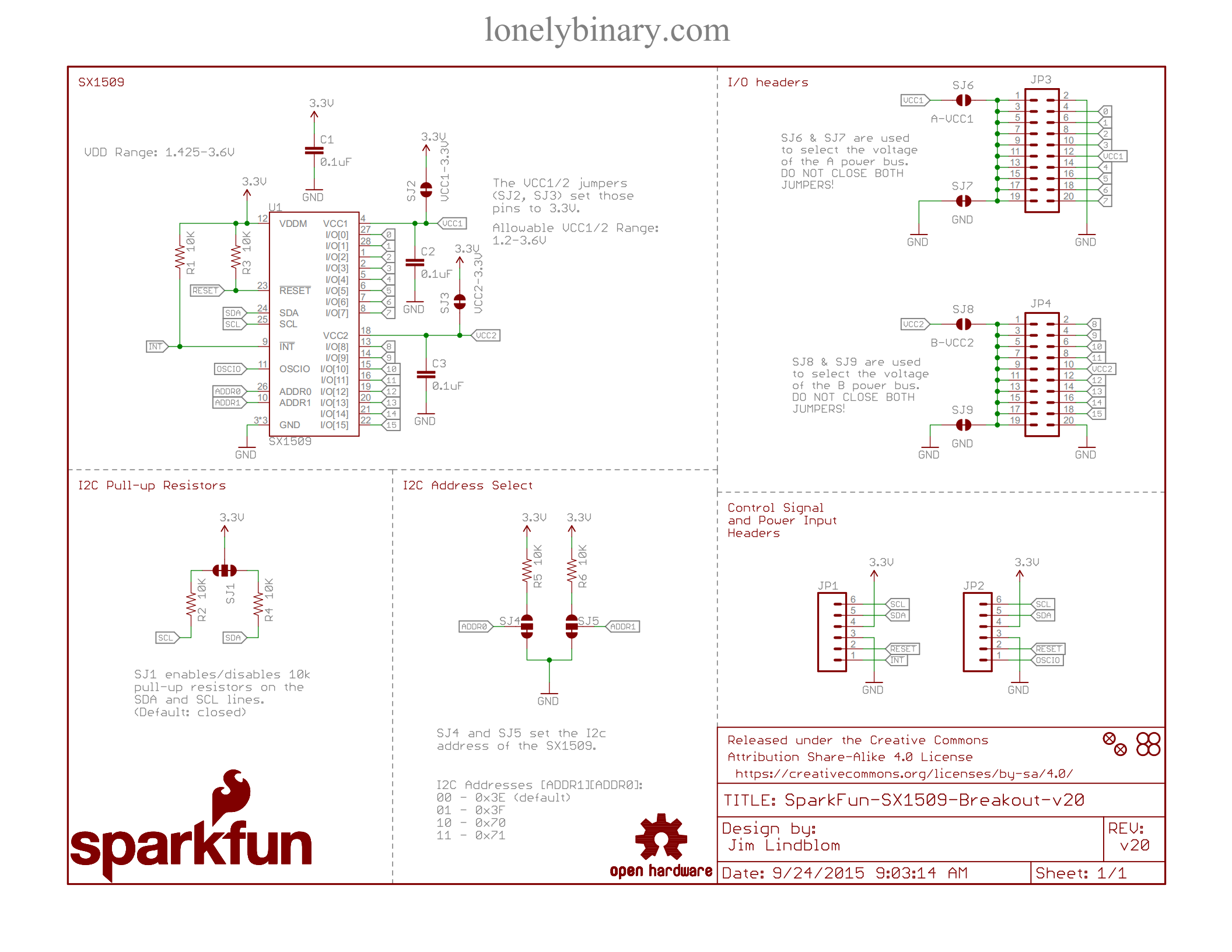

Schematics
Documents
What’s in the Box
- 1 x SX1509 Module
