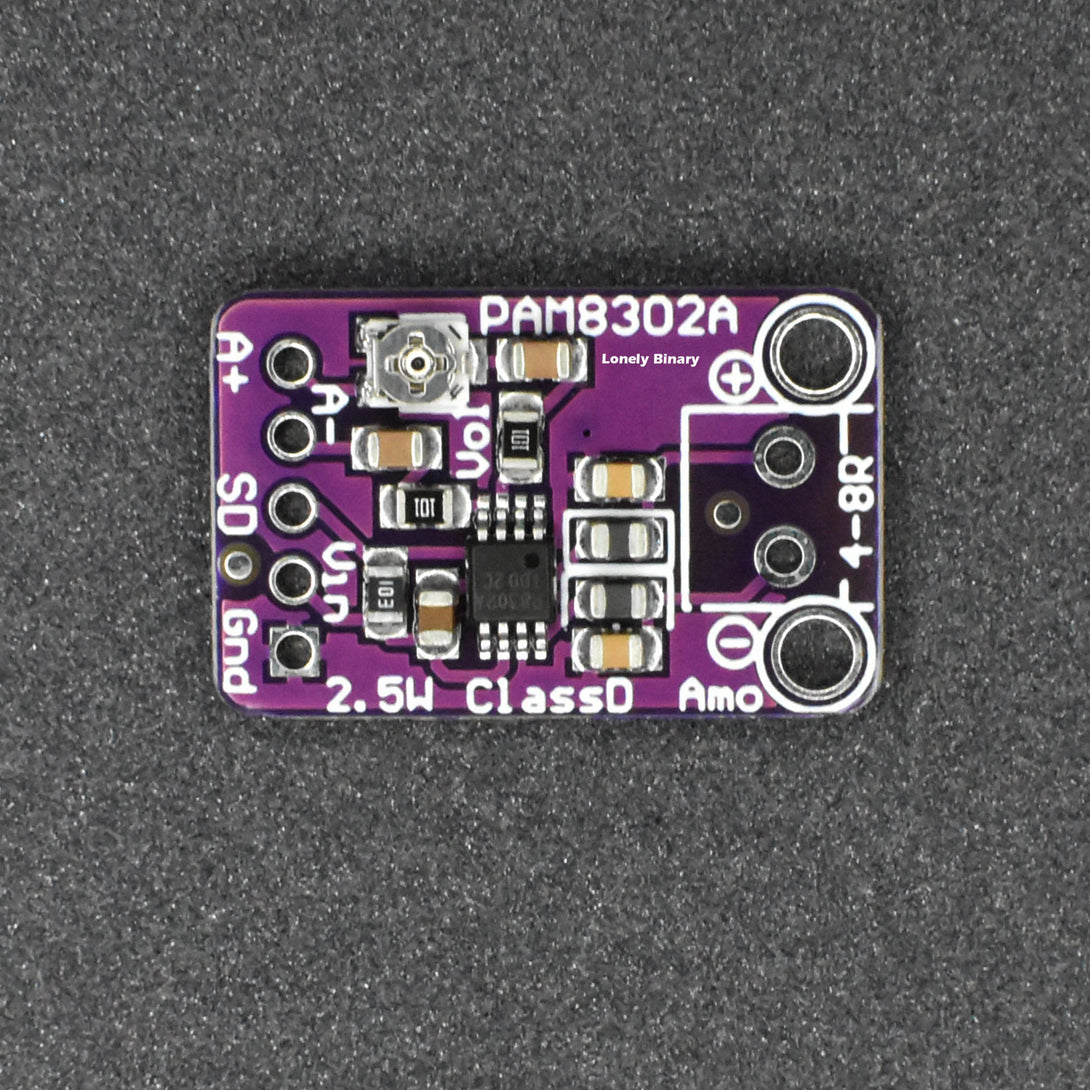

Introducing the Lonely Binary 2.5W Audio Amplifier - PAM8302: Unleash the Sound Beast!
Prepare to be blown away by the power of Lonely Binary's 2.5W Audio Amplifier - PAM8302. This mighty mini amplifier may be small in size, but it packs a punch, delivering up to 2.5 Watts of pure audio bliss to your 4-8 ohm impedance speakers. Prepare to have your senses rocked like never before!
Inside the heart of this miniature marvel resides a class D controller, capable of running on a voltage range of 2.0V to 5.5VDC. But don't let its size fool you - this amplifier is a powerhouse of efficiency, boasting over 90% efficiency when driving an 8Ω speaker at over half a Watt. It's the perfect match for your portable and battery-powered projects, ensuring your music never misses a beat.
We've got your back when it comes to protection, too. With built-in thermal and over-current safeguards, this amplifier stays cool under pressure. We barely noticed it breaking a sweat! And if that's not enough, we've even included a volume trim pot, allowing you to fine-tune the volume right on the board. It's the epitome of control at your fingertips. Lonely Binary knows how to keep the party going!
The A+ and A- inputs of the amplifier pass through 1.0uF capacitors, providing a fully 'differential' audio experience. Don't have differential outputs? No worries! Simply connect the Audio- pin to ground and let the magic unfold. The output is "Bridge Tied" - meaning the output pins connect directly to the speaker pins without any connection to ground. Get ready for high-frequency 250KHz square wave PWM that gets 'averaged out' by the speaker coil, resulting in incredible sound quality. Be prepared to be transported to audio nirvana.
But that's not all! The Lonely Binary 2.5W Audio Amplifier - PAM8302 comes fully assembled and tested, ready to rock right out of the box. We even include headers for easy breadboard connection and 3.5mm screw-terminal blocks for effortless speaker attachment and detachment. In just 15 minutes, you'll be rocking and rolling with pure audio ecstasy. Please note that the speaker is not included, but fear not - you can use any 4 ohm or greater impedance speaker and let the music take over.
Join the audio revolution with Lonely Binary's 2.5W Audio Amplifier - PAM8302. It's time to unleash the sound beast within. Get yours today and experience audio power like never before. Lonely Binary has your back, delivering pure sonic satisfaction one beat at a time!
|Impressive Output Power||The Lonely Binary 2.5W Audio Amplifier - PAM8302 delivers a whopping 2.5W at 4Ω, 10% THD, and 1.5W at 8Ω, 10% THD, with a 5.5V supply. Experience the full force of your audio with Lonely Binary's powerful amplifier.|
|Exceptional PSRR||Enjoy superior audio quality with a remarkable 50dB PSRR (Power Supply Rejection Ratio) at 1KHz. Immerse yourself in the crystal-clear sounds produced by the PAM8302, and let Lonely Binary's expertise take your audio experience to new heights.|
|Filterless Design||With a filterless design, this audio amplifier ensures simplicity and convenience. The ferrite bead and capacitors on the output provide stability and enhance the audio output, eliminating the need for additional components.|
|Adjustable Input Volume||Fine-tune your audio experience with the onboard trim potentiometer. The fixed 24dB gain, combined with the adjustable input volume, allows you to customize the sound to your preferences. Lonely Binary puts control in your hands.|
|Built-in Protection||The PAM8302 is equipped with thermal and short-circuit/over-current protection, ensuring the safety and longevity of your audio system. Enjoy your music without worrying about potential damage or overheating.|
|Energy-Efficient||The PAM8302 is designed with low current draw in mind. It operates with a mere 4mA quiescent current and only 0.5mA in shutdown mode (thanks to the pullup resistor on the SD pin). Enjoy efficient power usage without compromising on performance.|
|Net Weight||1 g|
|Dimension||(L) 23 mm x (W) 15 mm x (H) 2 mm|
What’s in the Box
There are 3 pieces in the retail box.
The listing price is for
- 1 x PAM8302 Module
