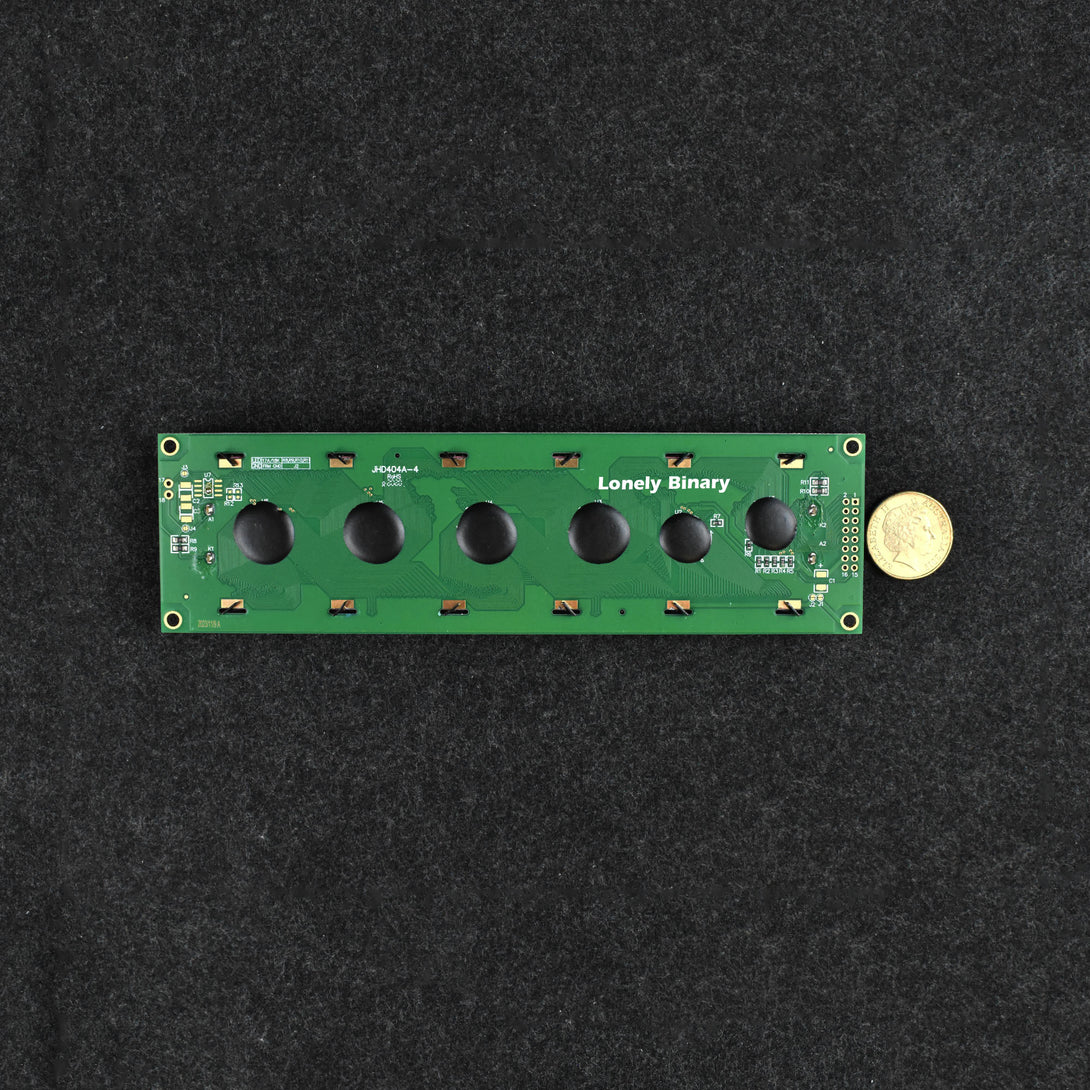

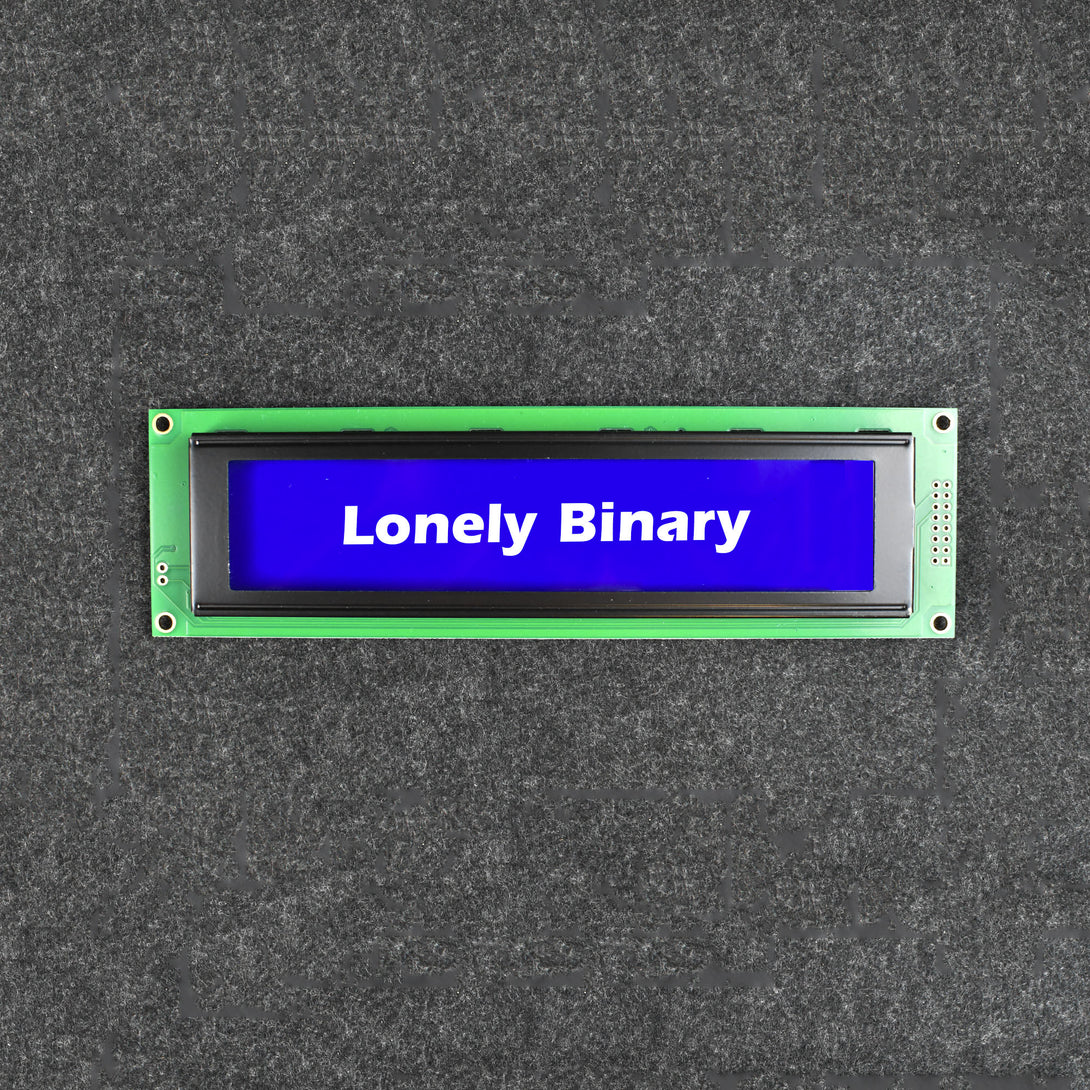

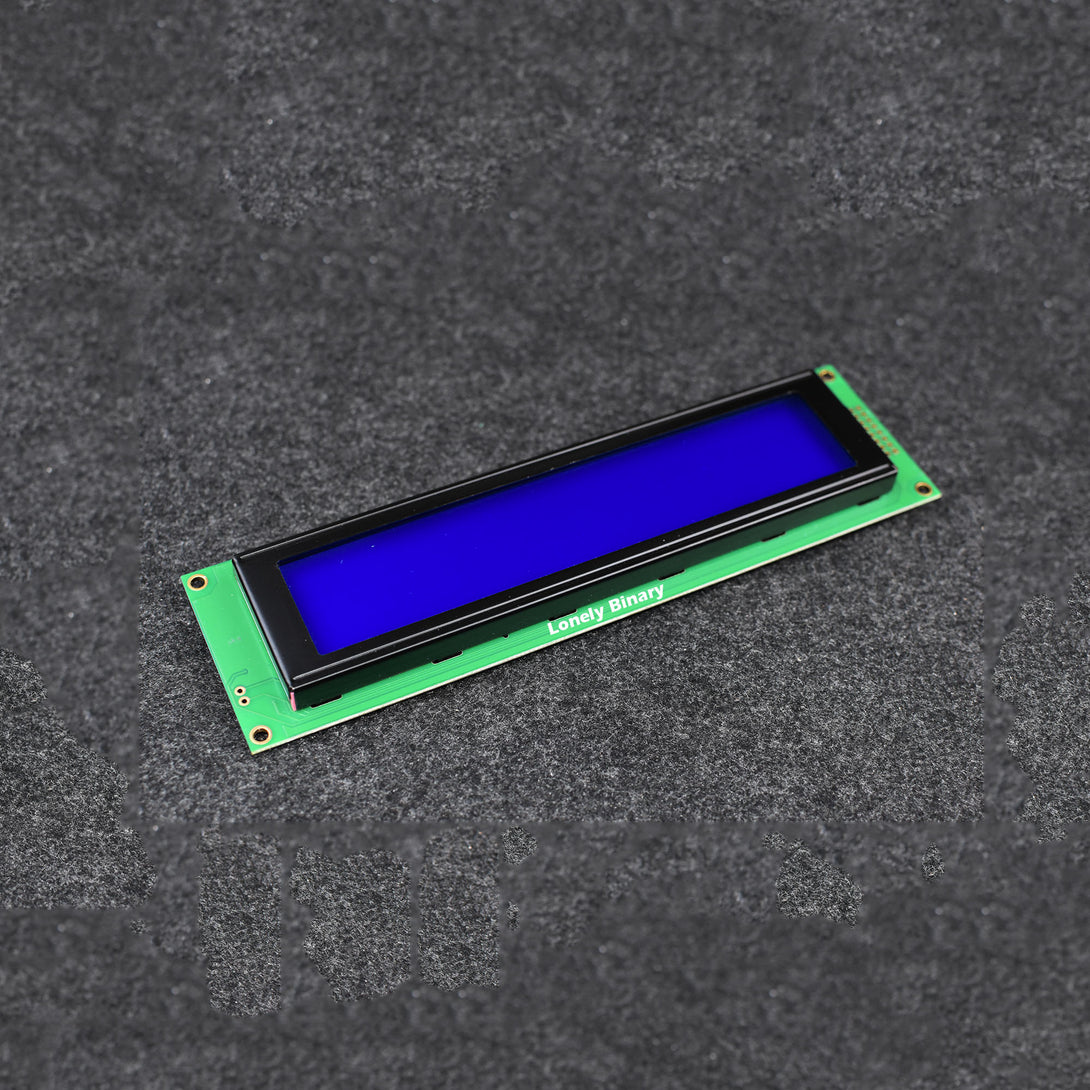

Blue 4004 40x4 Character LCD Display Module

$22.00 USD
Choose between the cosmic energies of 3.3V or 5V power supply and the optional pin header connection, because at Lonely Binary, we believe in giving you the power of choice. So, whether you're a pixel poet or a tech maestro, the Lonely Binary 4004 is your canvas – paint your digital dreams with the strokes of innovation!
Add to Wishlist

visamasterapple paygoogle paypaypal
SKU: DISP-LCD4004-BLUE
Overview

Behold the majesty of the Lonely Binary 4004, a 40x4 Character LCD Display Module – where every character is a pixelated poet, and the display is a canvas for your creative symphony! 🎭🌟

Picture a sprawling 40 characters wide, standing tall in 4 majestic rows – a visual extravaganza curated for the connoisseurs of the LCD arts. At its core lies the AIP31066 controller, a maestro orchestrating the pixel ballet with the precision of an HD44780-compatible virtuoso. This isn't just a display; it's a visual sonnet to the tech gods!

The interface, a dance of 6800 4/8-bit parallel magic, invites you to connect and play. And oh, the backlight – a single LED luminary in a hue of yellow-green, waiting to be tamed by the wizardry of resistors or PWM. It's like having your own LCD genie, ready to grant your brightness wishes! πŸ’«πŸ’‘

But that's not all – the STN-LCD positively radiates a dark blue text on a yellow-green stage, setting the scene for a display drama unlike any other. With a wide operating temperature range, it laughs in the face of environmental challenges, proudly wearing the ROHS compliance crown.

And the character set? Oh, it's a linguist, supporting English, Japanese, and maybe even the language of the future. Dive into the SPLC780C datasheet for a sneak peek into its linguistic prowess – a literary treat for the text enthusiasts!

This LCD maestro is a team player, ready to be conducted by your favorite MCU – 8051, PIC, AVR, ARDUINO, ARM, or even the Raspberry Pi. It's not just a display; it's a versatile virtuoso, seamlessly fitting into embedded systems, industrial devices, security setups, medical marvels, and the coolest hand-held gadgets in town.

Choose between the cosmic energies of 3.3V or 5V power supply and the optional pin header connection, because at Lonely Binary, we believe in giving you the power of choice. So, whether you're a pixel poet or a tech maestro, the Lonely Binary 4004 is your canvas – paint your digital dreams with the strokes of innovation! πŸš€πŸŽ¨

Β

Tech Specs

IC ST7066
Power supply 3V/5V
Display Connector Pin Header
Operating Temperature -20 ~ +70℃
Net Weight 120 g
Dimension (L) 190 mm x (W) 55 mm x (H) 13.3 mm

Documents

Resources

What’s in the Box

  • 1 x 40x4 LCD Display Module
