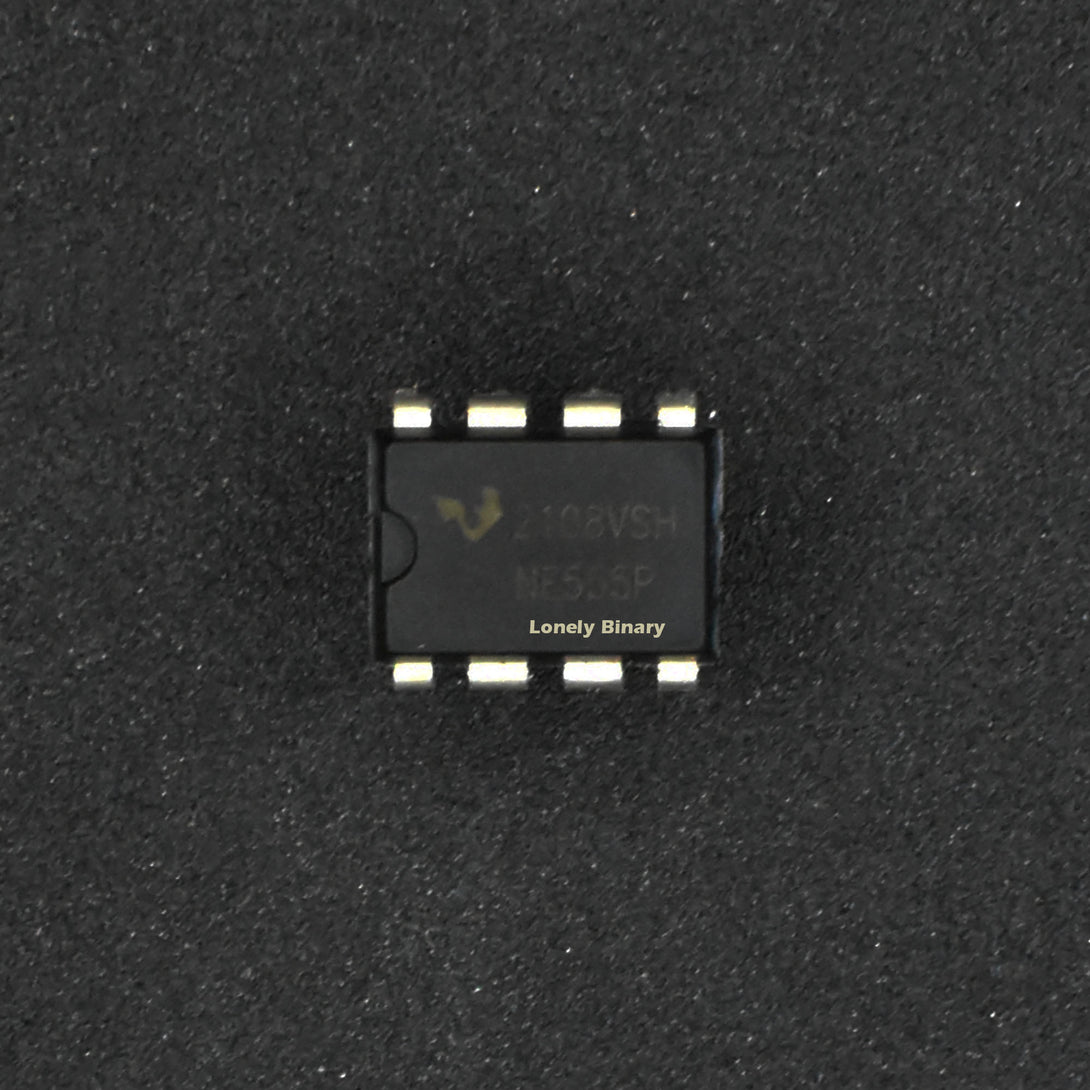

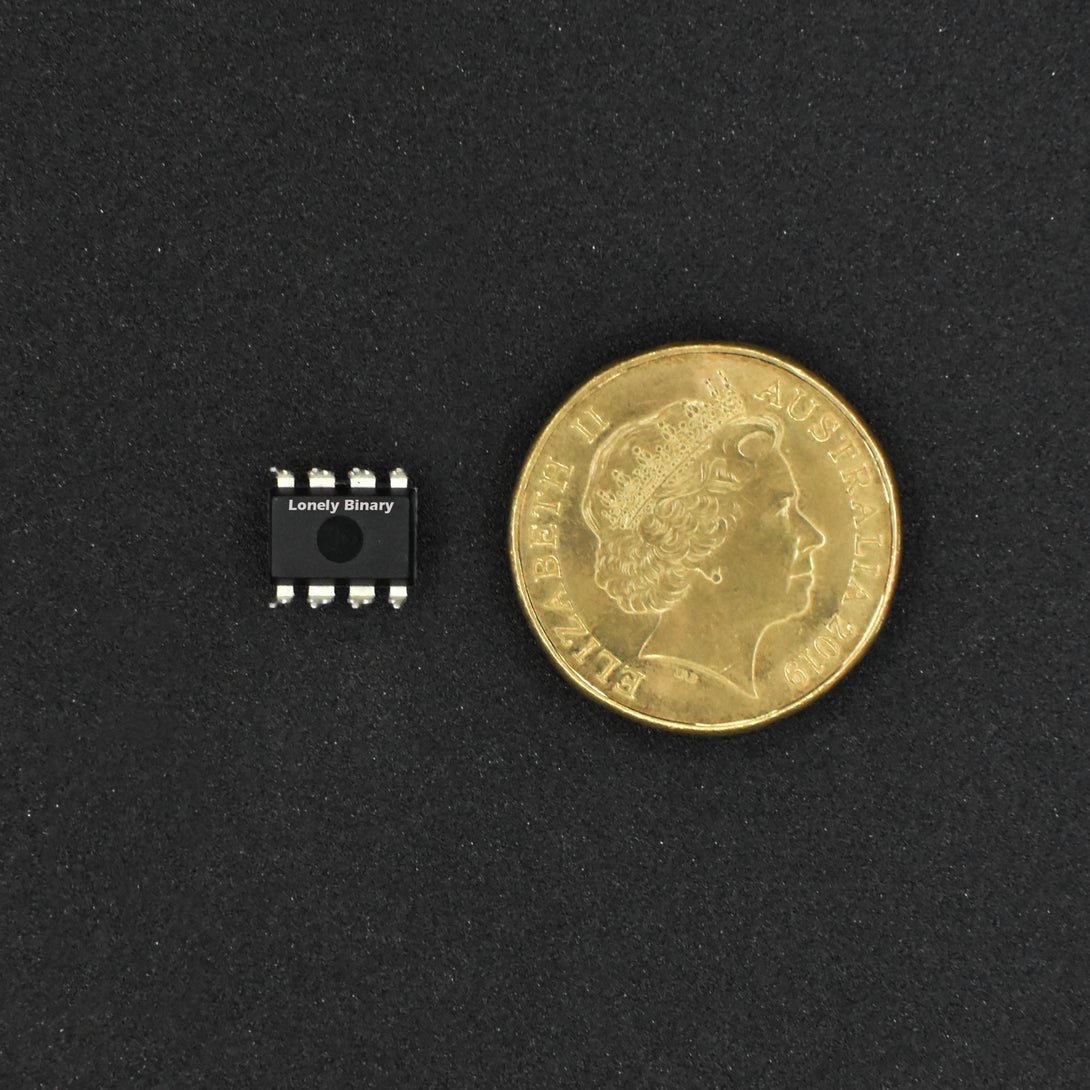

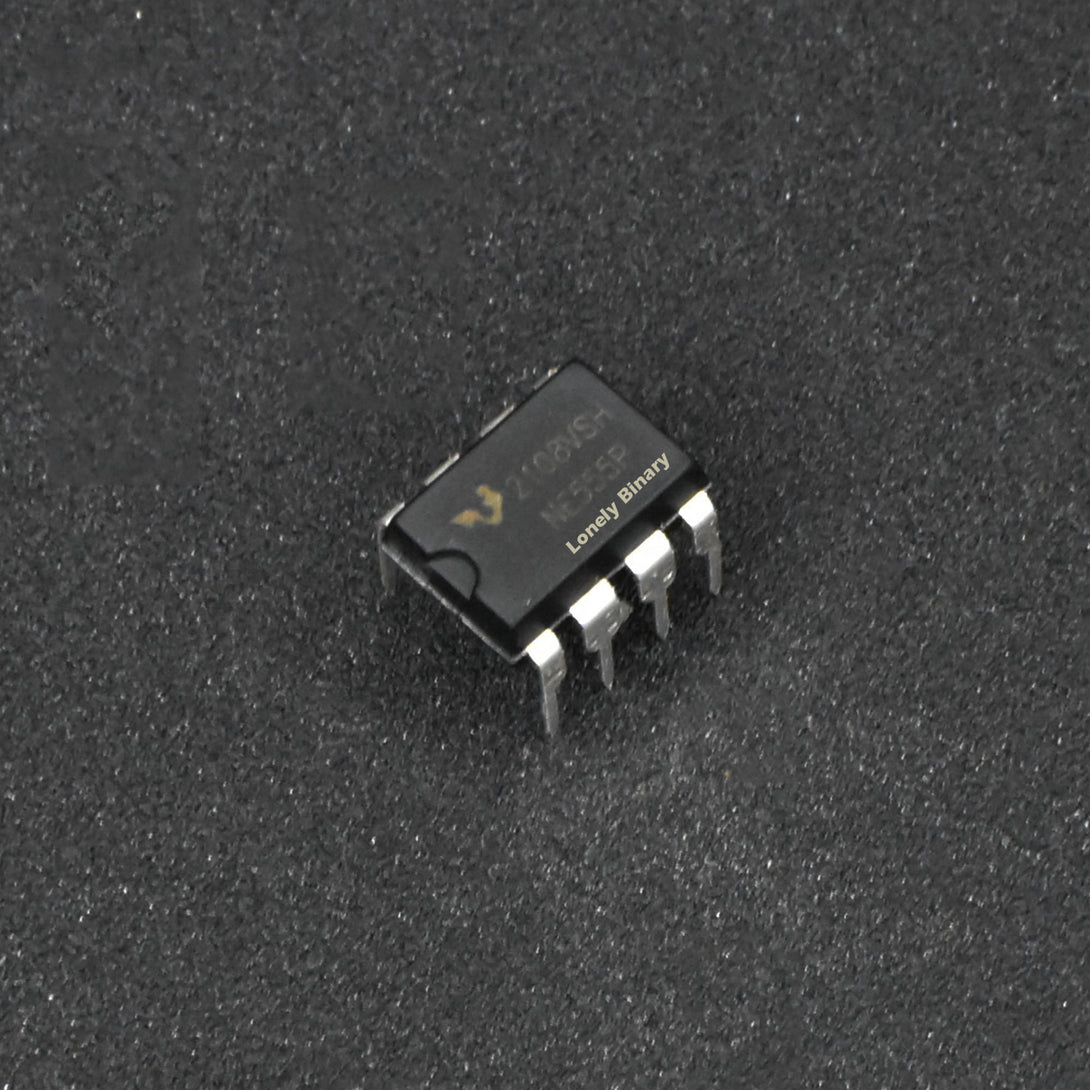

NE 555 Timer Linear IC

The Lonely Binary NE555 Precision Timers are exceptional devices designed to deliver precise and accurate timing control. Whether you need to create time delays or oscillations, these timers have got you covered. With the ability to operate in both time-delay and astable modes, you have the flexibility to tailor your timing requirements.

In the time-delay mode, a single external resistor and capacitor network allow you to set the desired timed interval. This feature ensures reliable and consistent timing accuracy, perfect for applications that require precise control.

Switching to the astable mode opens up a whole new realm of possibilities. By utilizing two external resistors and a single capacitor, you can independently control the frequency and duty cycle. This versatility empowers you to create custom timing patterns and explore various oscillation possibilities.

The Lonely Binary NE555 Precision Timers also offer adjustable threshold and trigger levels. With the control-voltage terminal, you can modify these levels to suit your specific needs, providing even greater control over your timing circuits.

The flip-flop mechanism within these timers ensures seamless operation. When the trigger input falls below the trigger level, the flip-flop is set, causing the output to go high. Conversely, if the trigger input is above the trigger level and the threshold input surpasses the threshold level, the flip-flop is reset, resulting in a low output.

For ultimate convenience, the RESET input allows you to initiate a new timing cycle at any time. It takes precedence over other inputs and provides a clean slate for your timing operations.

Additionally, the Lonely Binary NE555 Precision Timers offer a discharge path when the output is low. This ensures a smooth and reliable path to ground, enhancing the overall performance and functionality of your timing circuits.

Unlock the world of precise time control with the Lonely Binary NE555 Precision Timers. With their exceptional features and reliable performance, these timers are your key to mastering the art of timing in your projects. Choose Lonely Binary for top-notch precision and unrivaled timing control.
