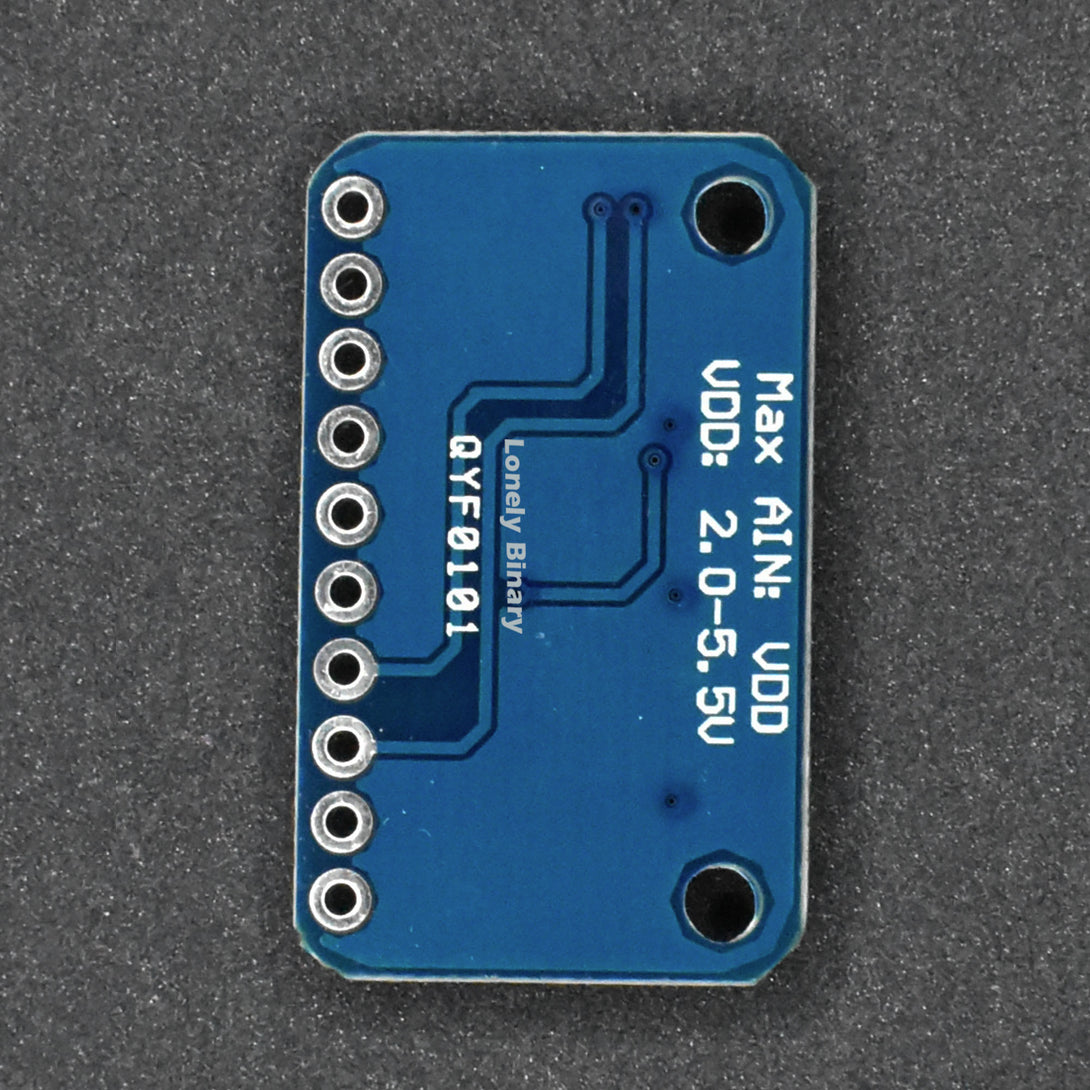

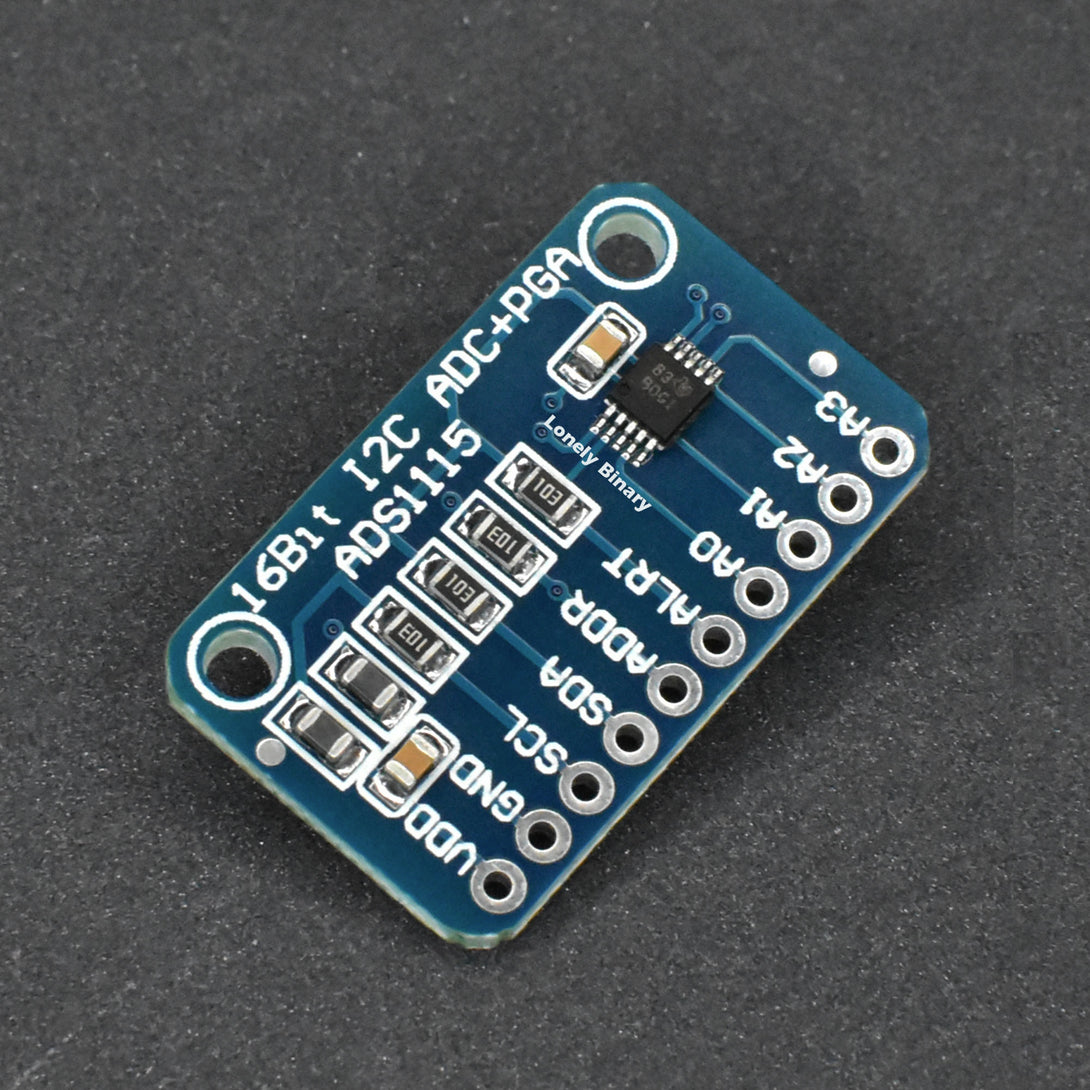

ADS1115 16-Bit Analog-to-Digital ADC Converter

$6.00 USD
Step into the realm of analog signal conversion like never before and witness the seamless harmony the series sensors.
Add to Wishlist

visamasterapple paygoogle paypaypal
SKU: MOD-ADS1115
Categories: Expansion Module
Overview

Introducing the extraordinary Lonely Binary ADS1115, the ultimate solution for accurate analog signal collection and conversion. Unlock the true potential of your Raspberry Pi with this powerful ADC module that opens up a world of possibilities. Prepare to embark on an adventure of sensor exploration and discover the wonders of this universe!

We understand that Raspberry Pi is a true genius in the realm of master control boards, but its limitations in reading only digital signals can sometimes be a bummer. Fear not, for Lonely Binary has come to the rescue with the ADS1115 16-bit ADC module, specifically designed to seamlessly integrate with Raspberry Pi and the magnificent series analog sensors.

Gone are the days of complex analog-to-digital conversion setups. With the ADS1115, you can effortlessly connect a vast array of series analog sensors to your Raspberry Pi and effortlessly measure a wide range of signals. Say goodbye to tedious soldering and embrace the plug-and-play convenience that Lonely Binary brings to the table.

Immerse yourself in a world of limitless possibilities as you explore the extensive selection of series sensors perfectly tailored for your Raspberry Pi. With our user-friendly ADC module, you can now perceive this world in all its analog glory, capturing its nuances and intricacies with unprecedented accuracy.

Don't settle for ordinary. Trust in the exceptional quality and performance that Lonely Binary delivers with every product. Step into the realm of analog signal conversion like never before and witness the seamless harmony between Raspberry Pi and the series sensors. Embrace the convenience, embrace the innovation, embrace Lonely Binary.

Unlock the full potential of your Raspberry Pi with the Lonely Binary ADS1115. Immerse yourself in the world of analog signals and discover a universe of sensor possibilities. Experience the convenience of plug-and-play functionality and indulge in the extensive range of series sensors. With Lonely Binary by your side, the possibilities are endless.



Tech Specs

Wide Supply Voltage Experience the flexibility of supporting a wide range of supply voltages, from 3.3V to 5.0V. No need to worry about compatibility issues!
Plug and Play Say goodbye to complex setups and hello to simplicity. The I2C interface ensures hassle-free connectivity, allowing you to effortlessly connect and play with a variety of analog sensors.
Cascade Capability Expand your possibilities with the on-board I2C address selection switch, enabling you to cascade two ADC modules. Double the channels, double the fun!
User-Friendly Design The color-coded 3-pin headers make it a breeze to connect and play with analog sensors. No soldering required, just pure convenience.
Wide Detection Range Capture every nuance with the ADS1115's impressive analog signal detection range, spanning from 0 to VCC. No detail will go unnoticed!
Multiple Analog Channels With four analog channels at your disposal, you have the freedom to connect and monitor multiple sensors simultaneously.
Precise ADC Resolution Experience exceptional accuracy with the ADS1115's impressive 16-bit ADC resolution. Every bit counts when it comes to capturing analog signals.
Low Power Consumption Enjoy efficient operation with an operating current of just 2-3mA (excluding sensor module). Save power without compromising performance.
High and Low Interface Levels The ADS1115 supports both high (3.3V) and low (0V) interface levels, providing flexibility for different applications.
Net Weight 1.5 g

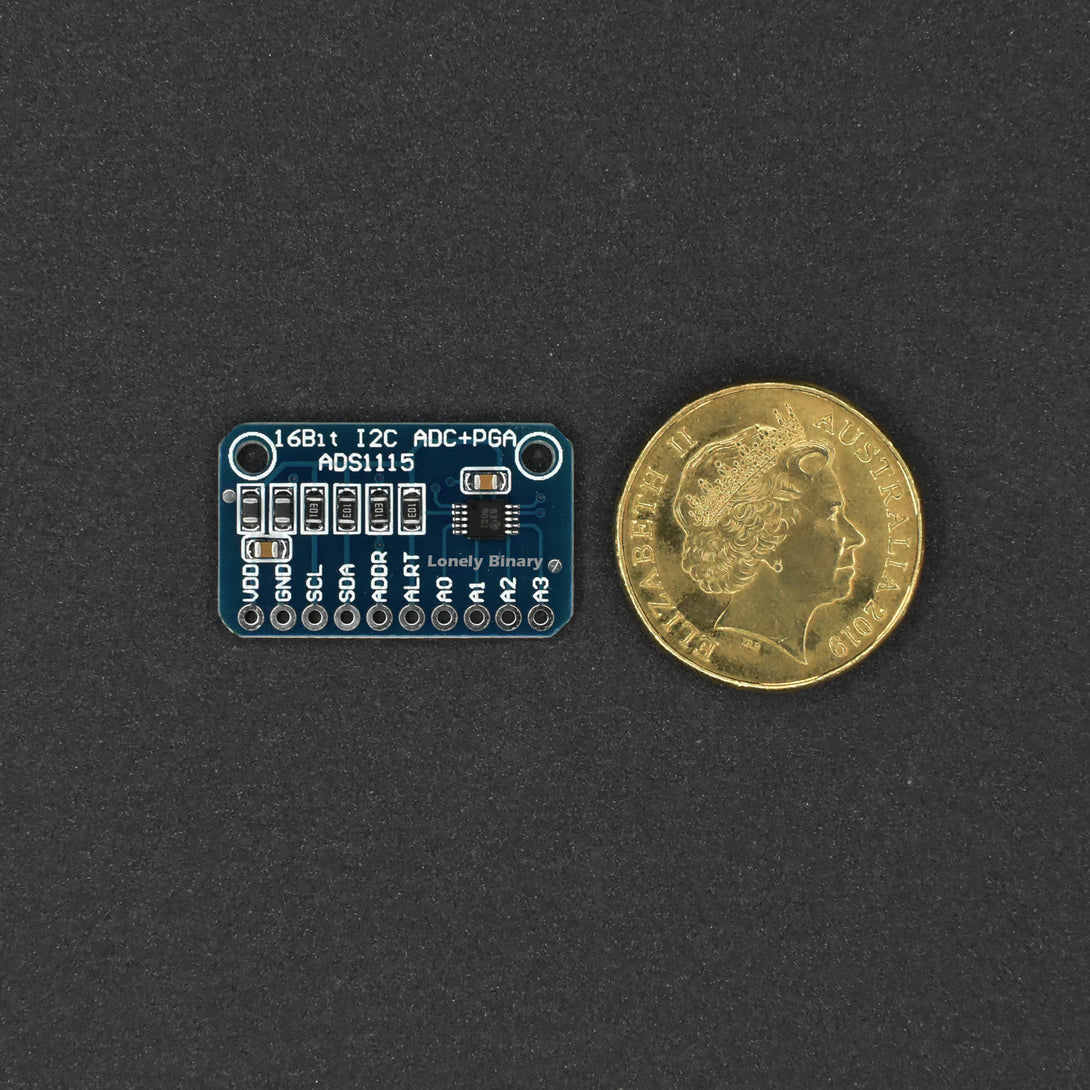

Dimension (L) 26 mm x (W) 15 mm x (H) 1.1 mm

Documents

What’s in the Box

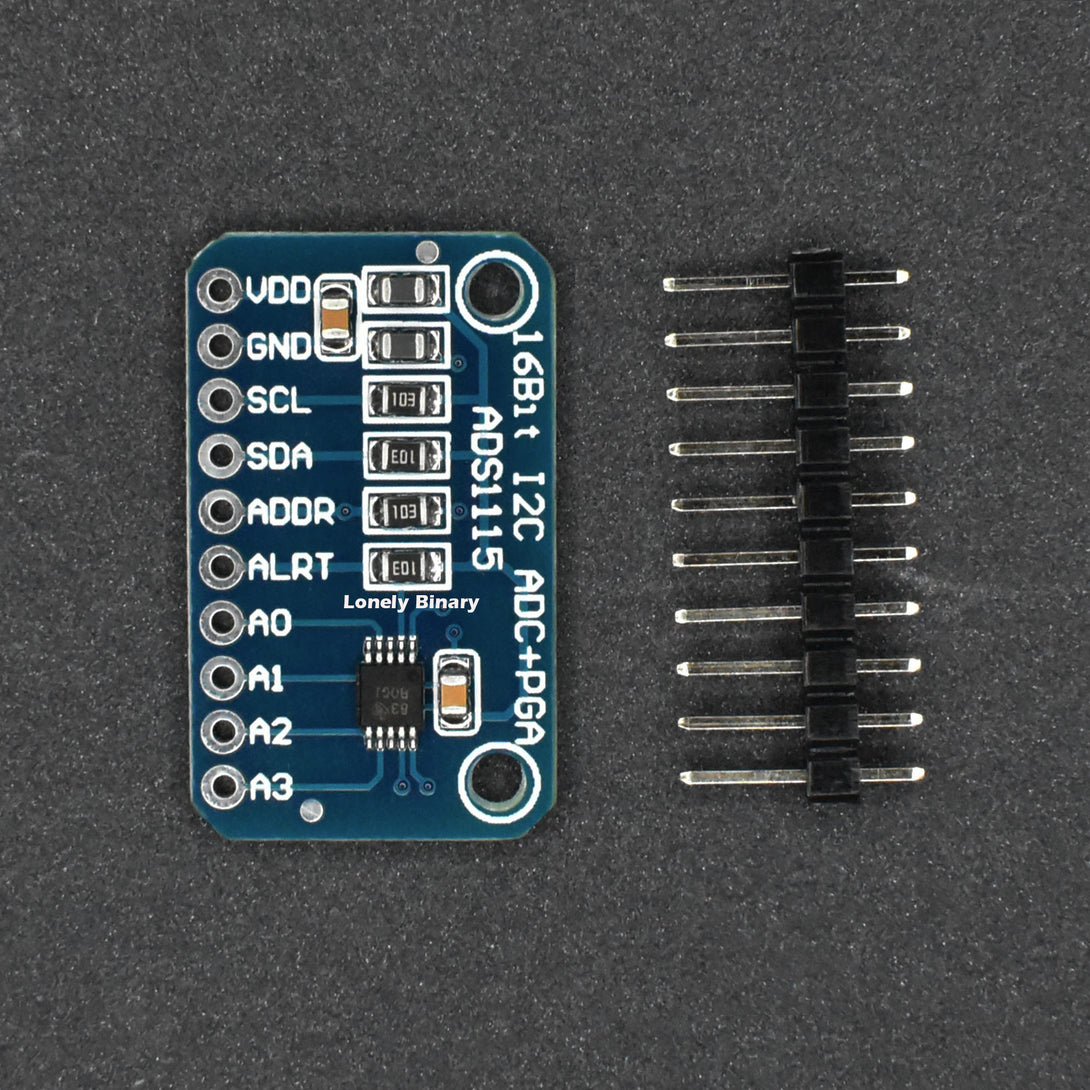

  • 1 x ADS1115 Module
