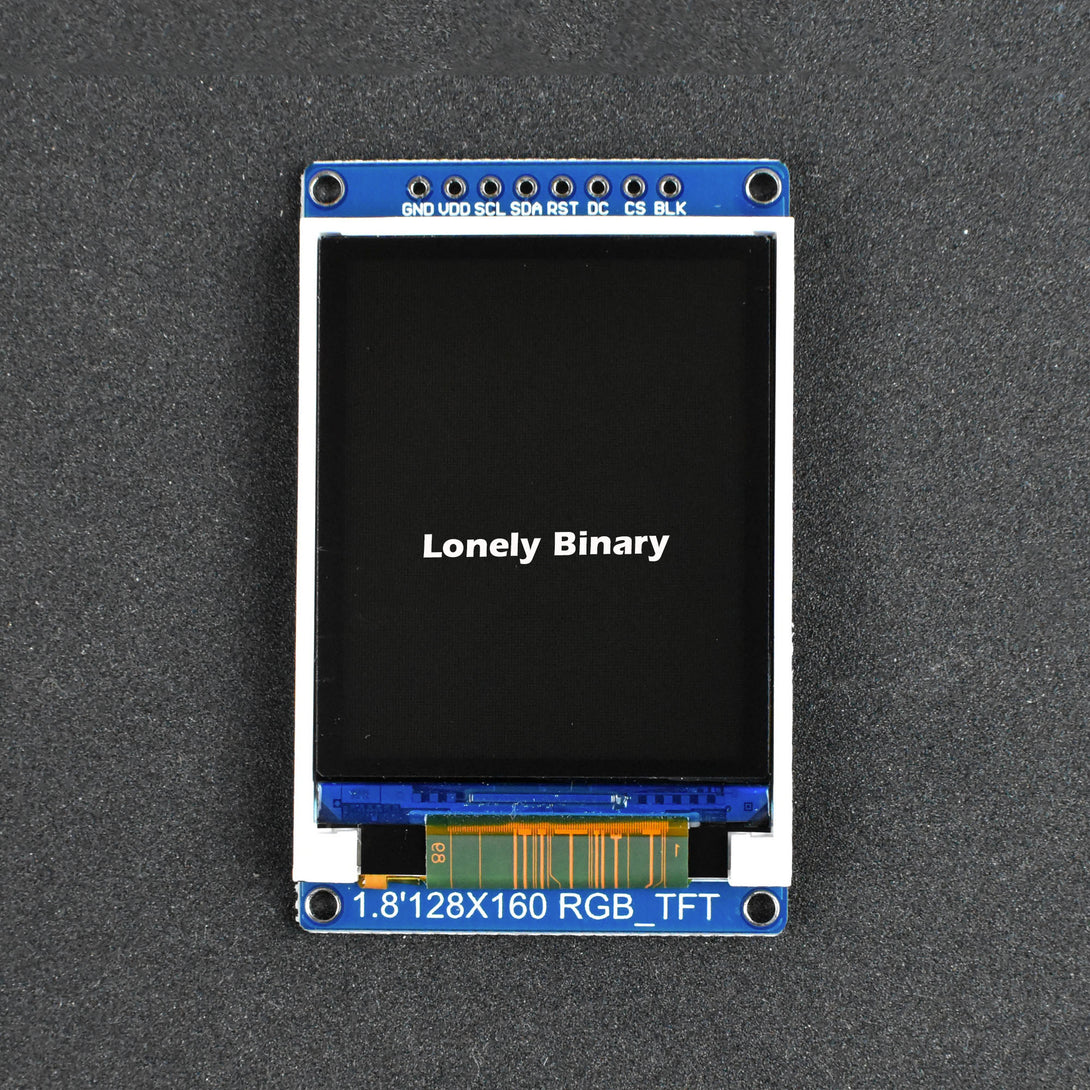

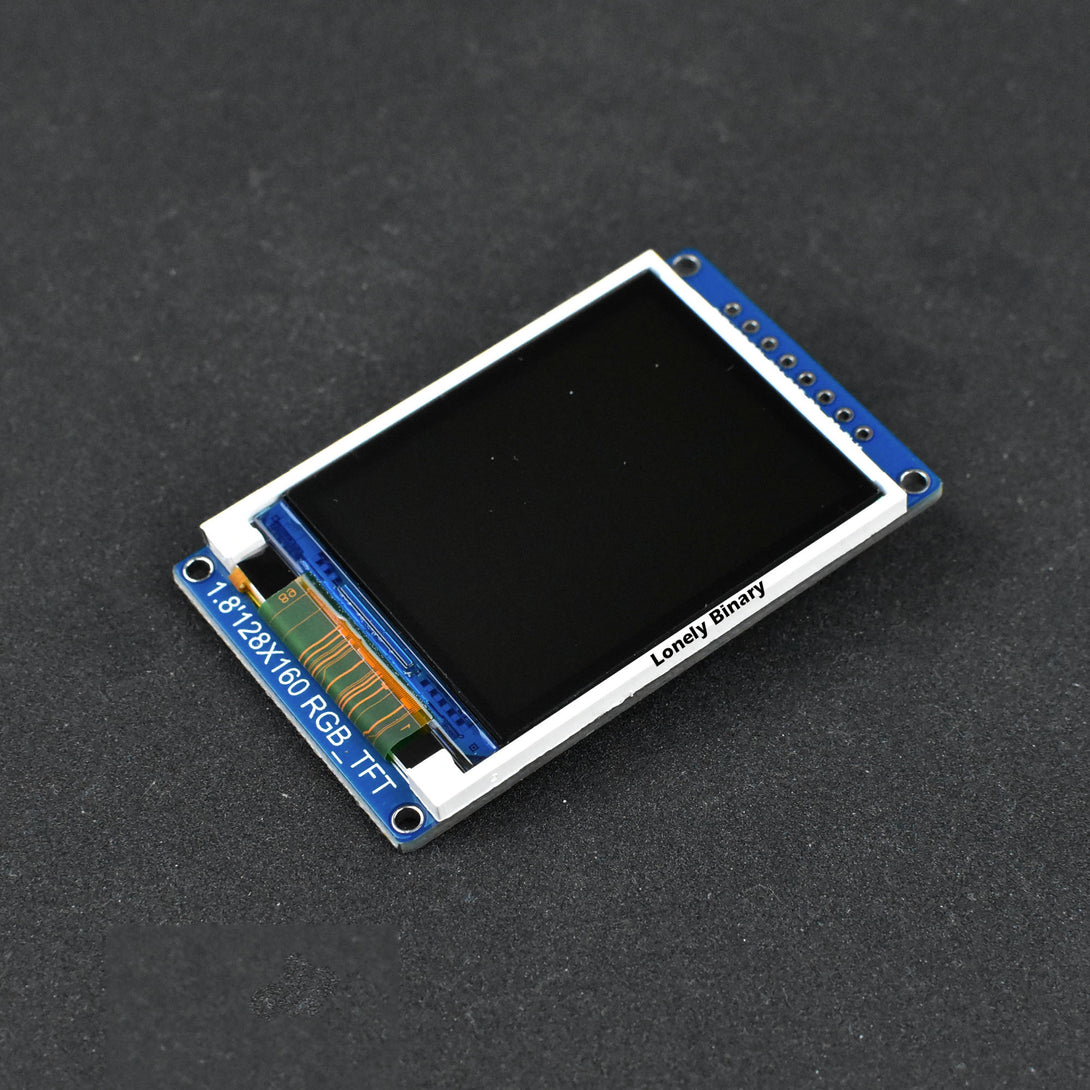

1.8 inch TFT Display

$10.00 USD
So, why settle for the ordinary when you can have the extraordinary? Elevate your projects, embrace the brilliance of the Lonely Binary 1.8-inch TFT Display – where pixels paint a picture, and your brand is the signature stroke!
Add to Wishlist

visamasterapple paygoogle paypaypal
SKU: DISP-TFT-1IN8
Overview

Introducing the Lonely Binary 1.8-inch TFT Display – because who said size doesn't matter? It's not just a display; it's a pocket-sized powerhouse of pixels, a technicolor dream waiting to bring your projects to life!

Behold, the petite wonder that defies the limits of microcontrollers – a display so vibrant, so dazzling, it's practically a pixelated Picasso. With a pixel-perfect resolution of 128x160, this 1.8-inch delight is here to prove that good things do come in small packages.

But what sets this display apart from the mundane is its storytelling prowess. It communicates through the eloquent language of 4-wire SPI, making it the perfect conversationalist for any microcontroller – big or small. Picture this: a display with its own pixel-addressable frame buffer, a true TFT that can dance with every kind of microcontroller, even the shy ones with low memory and few pins available!

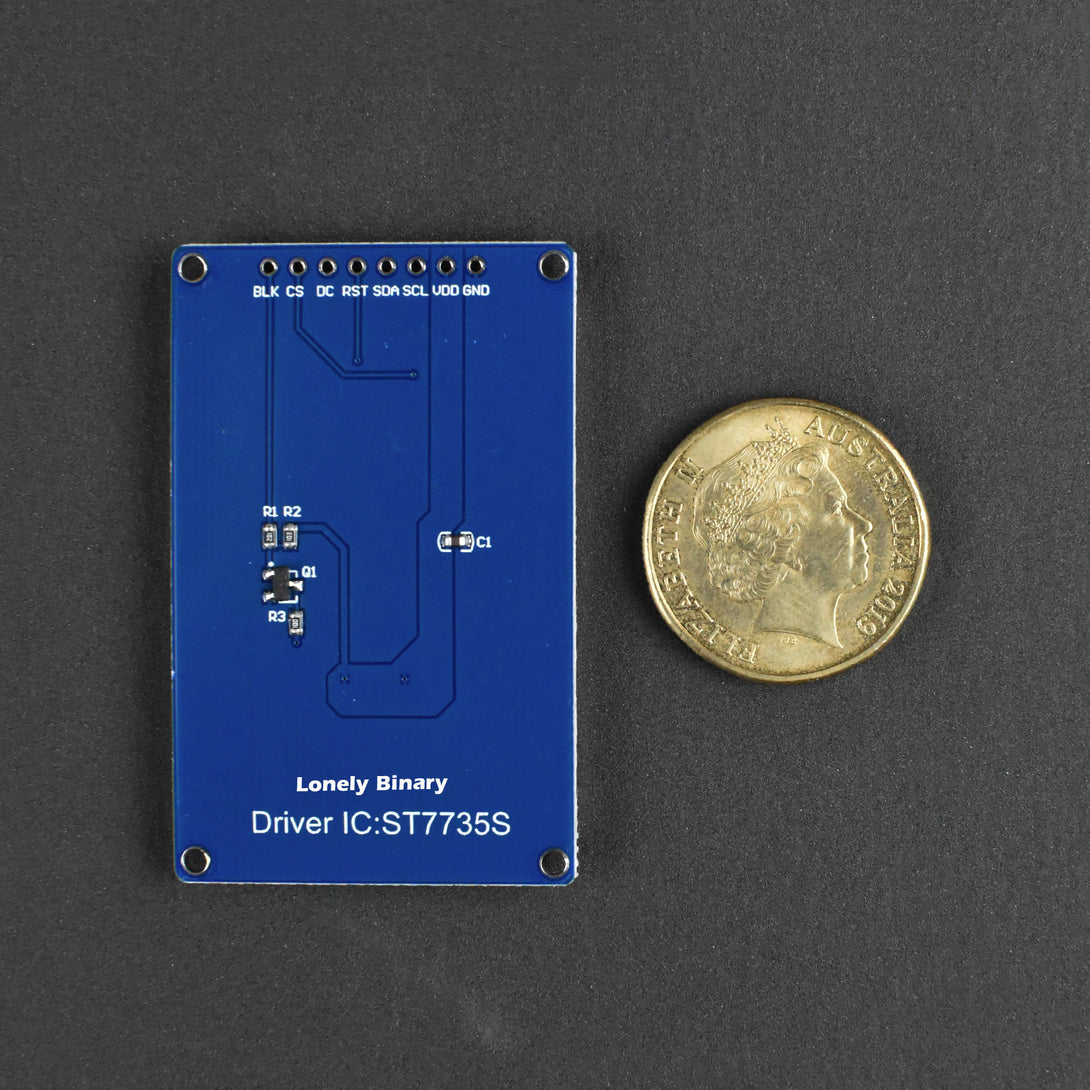

Now, let's talk color – not just any color, but a palette of 262,144 shades, thanks to the magnificent ST7735S TFT driver. Unlike those other displays that play the color game on the lower end, this one brings a full 18-bit color to the canvas. No compromises, no shortcuts – just pure, unadulterated technicolor joy!

And here's the best part – the LCD will always come adorned with the Lonely Binary insignia, ensuring that your code, your creation, is seamlessly translated from one display to another. Consistency, thy name is Lonely Binary!

So, why settle for the ordinary when you can have the extraordinary? Elevate your projects, embrace the brilliance of the Lonely Binary 1.8-inch TFT Display – where pixels paint a picture, and your brand is the signature stroke!



Tech Specs

Resolutions 128xRGBx160
Voltage VCC 2.8V~3.3V
Total Power 0.11W
Operating temperature -20~70℃
Storge Temperature -30~80℃
Assemble Soldering
Net Weight 22 g
Dimension (L) 46 mm x (W) 34 mm x (H) 2.3 mm

Documents

What’s in the Box

  • 1 x 1.8 inch TFT Display
