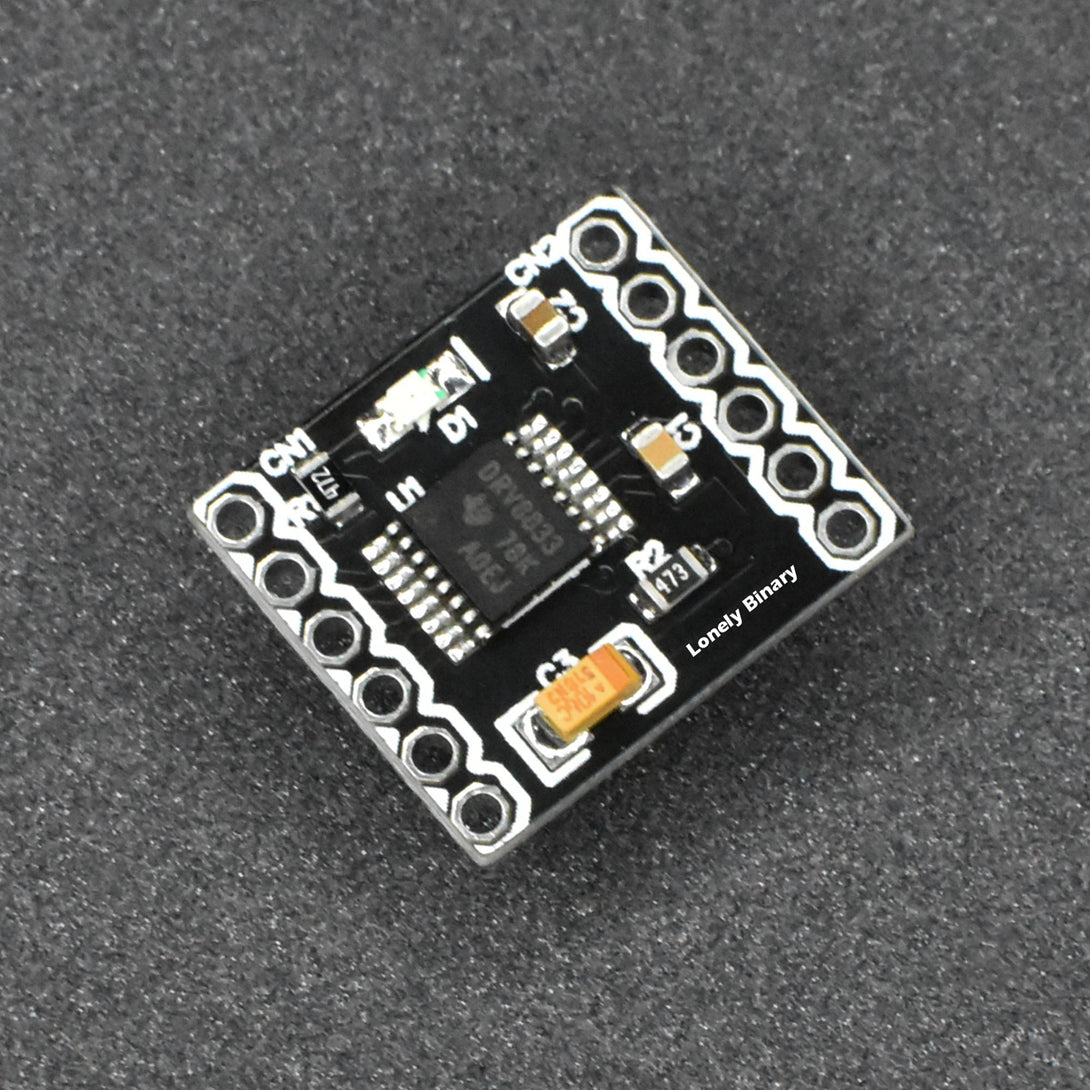

Introducing the Lonely Binary DRV8833 - The Mighty Motor Master!
Rev up your toys, printers, and mechatronic marvels with the power-packed DRV8833. With its dual bridge motor driver solution, Lonely Binary unleashes a motor-driving masterpiece that will leave you in awe.
Prepare for a wild ride as this tiny titan boasts not one, but two H-bridge drivers. It fearlessly conquers the realm of DC brush motors, bipolar stepper motors, solenoids, and even those mischievous inductive loads. Lonely Binary's DRV8833 is the ultimate companion for all your motor-driven escapades.
Inside each H-bridge lies a brigade of N-channel power MOSFETs, eagerly waiting to flex their muscles and spin those motor windings. With unrivaled precision, the DRV8833 ensures a smooth and regulated current flow, guaranteeing optimal performance.
Worried about those unexpected mishaps? Fear not! The DRV8833 has your back with its arsenal of internal shutdown functions. From overcurrent protection to short-circuit defense, undervoltage lockout to overtemperature vigilance, this motor master has got you covered. Safety is Lonely Binary's top priority, so you can enjoy endless hours of excitement worry-free.
Wrapped in a 16-pin WQFN package with PowerPAD™ technology, the DRV8833 not only brings the power but also carries an eco-friendly charm. Compliant with RoHS standards and free from Sb/Br, it's a win for both your projects and the planet.
But wait, there's more! The DRV8833 knows when it's time to rest. With its low-power sleep mode, it conserves energy while keeping your motors in standby, ready to spring back into action when duty calls. Efficiency and power-saving go hand in hand with Lonely Binary.
So, gear up, embrace the power of Lonely Binary, and let the DRV8833 take you on an electrifying motor-driven adventure. Your toys, printers, and mechatronic dreams await. Get your hands on the DRV8833 now and let the motor magic unfold before your eyes!
|Dual-H-Bridge Current-Control Motor Driver||The Lonely Binary DRV8833 features a powerful dual-H-bridge design, allowing you to drive two DC motors or one stepper motor with ease. Say goodbye to motor control limitations and embrace the freedom of versatile motor applications.|
|Low MOSFET ON-Resistance||With an impressively low HS + LS on-resistance of just 360 mΩ, the DRV8833 ensures efficient power delivery, maximizing the performance of your motors. Experience smooth and reliable motor operation like never before.|
|High Output Current||Amp up your motor-driven projects with the DRV8833's high output current capabilities. Choose from options like 1.5-A RMS, 2-A Peak per H-Bridge in PWP and RTY package options, or 500-mA RMS, 2-A Peak per H-Bridge in the PW package option. Power is in your hands!|
|Parallel Outputs for Extra Muscle||Need an extra boost of power? The DRV8833 allows you to parallel the outputs, unlocking even more motor-driving capability. Enjoy a whopping 3-A RMS, 4-A Peak in the PWP and RTY package options, or 1-A RMS, 4-A Peak in the PW package option.|
|Wide Power Supply Voltage Range||The DRV8833 accommodates a wide power supply voltage range, from 2.7 V to 10.8 V. Whether you're working with low-voltage systems or high-power setups, this motor driver can handle it all. Power up with confidence!|
|PWM Winding Current Regulation and Current Limiting||Take control of your motor's performance with PWM winding current regulation and current limiting features. Fine-tune the motor's behavior and protect against excessive current draw, ensuring safe and efficient operation.|
|Thermally Enhanced Surface-Mount Packages||The DRV8833 is designed with thermally enhanced surface-mount packages, ensuring efficient heat dissipation and maximizing the driver's overall performance. Rest easy knowing your motor driver stays cool even during demanding tasks.|
|Net Weight||1 g|

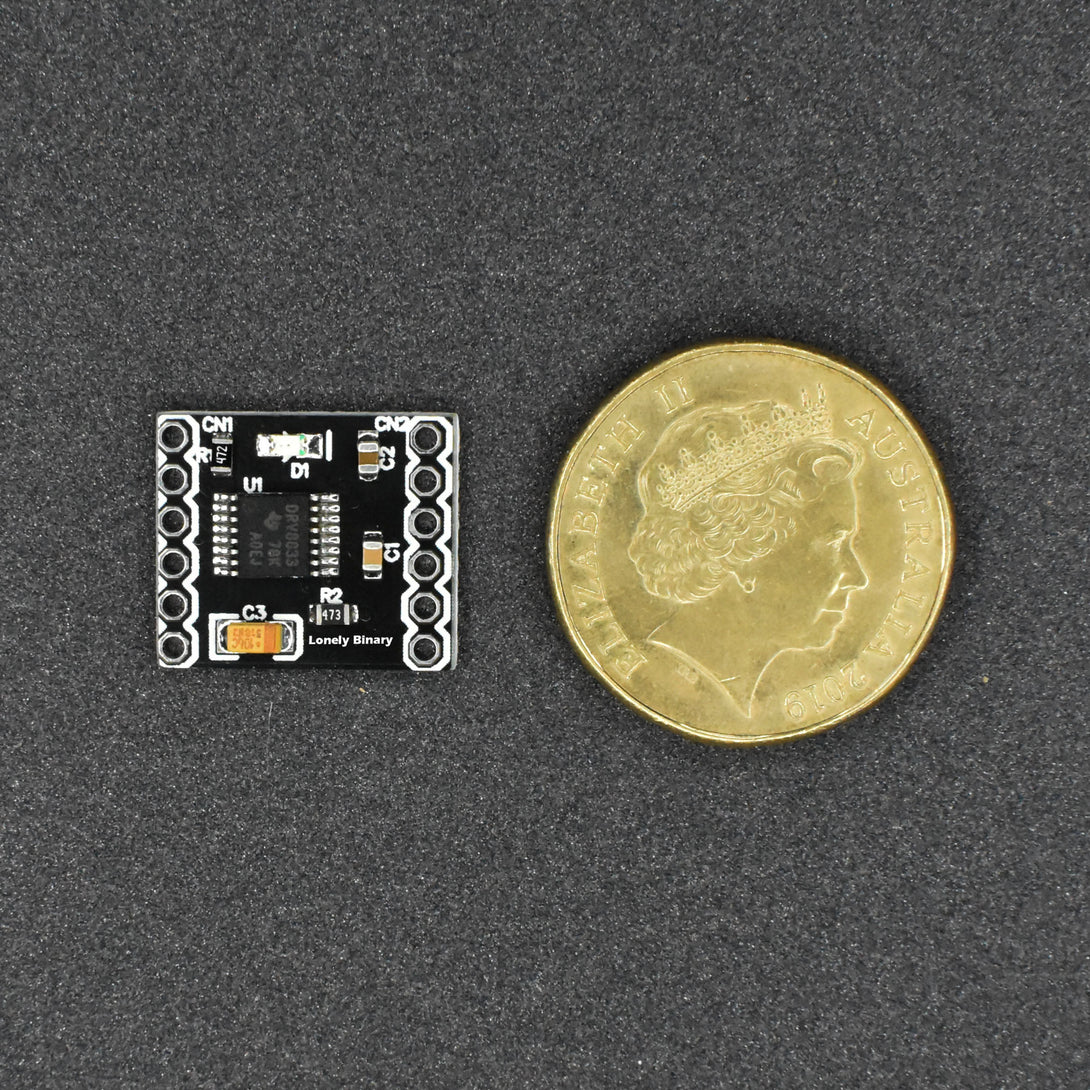

|Dimension||(L) 15 mm x (W) 15 mm x (H) 2 mm|
What’s in the Box
There are 2 pieces in the retail box.
The listing price is for
- 1 x DRV8833 Module
