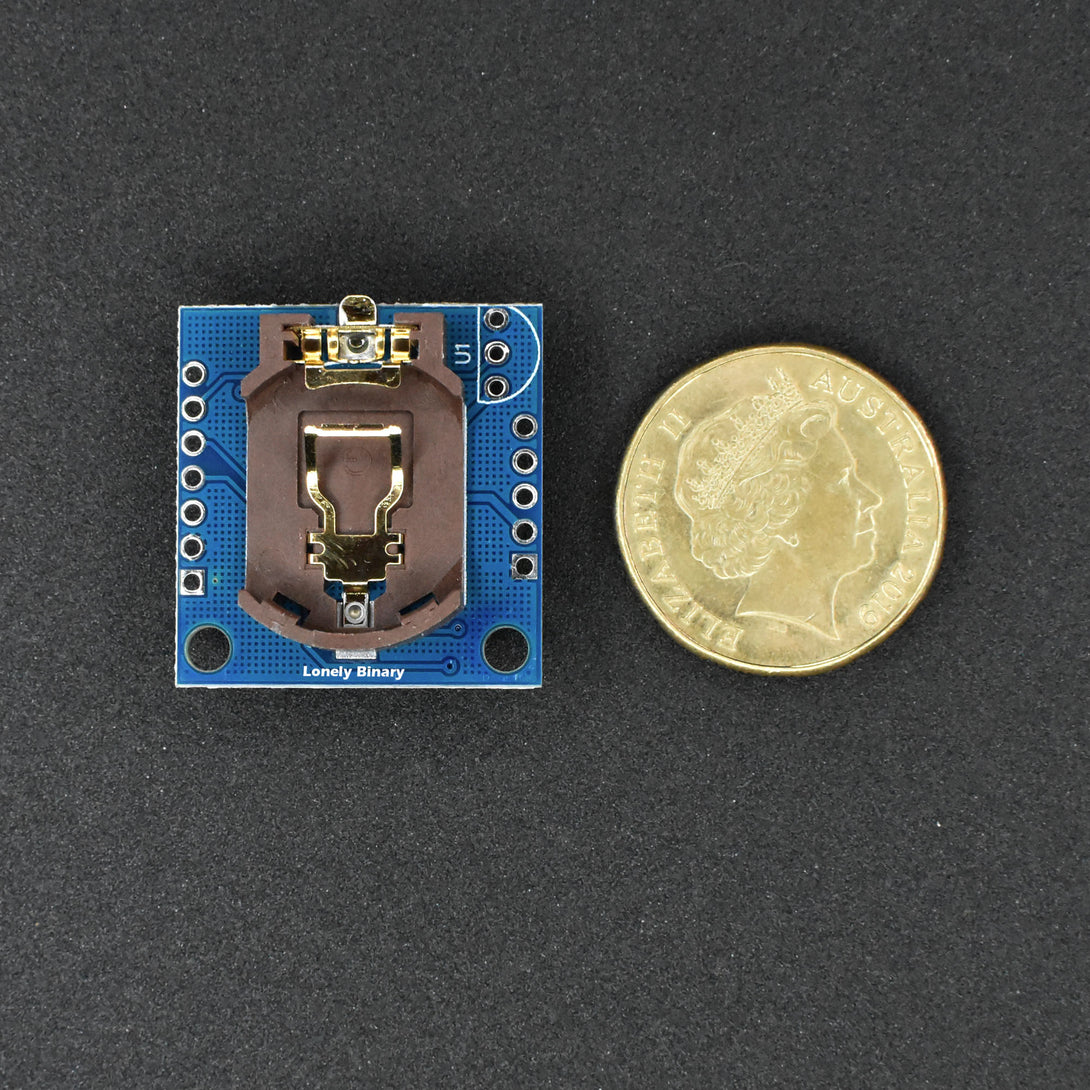

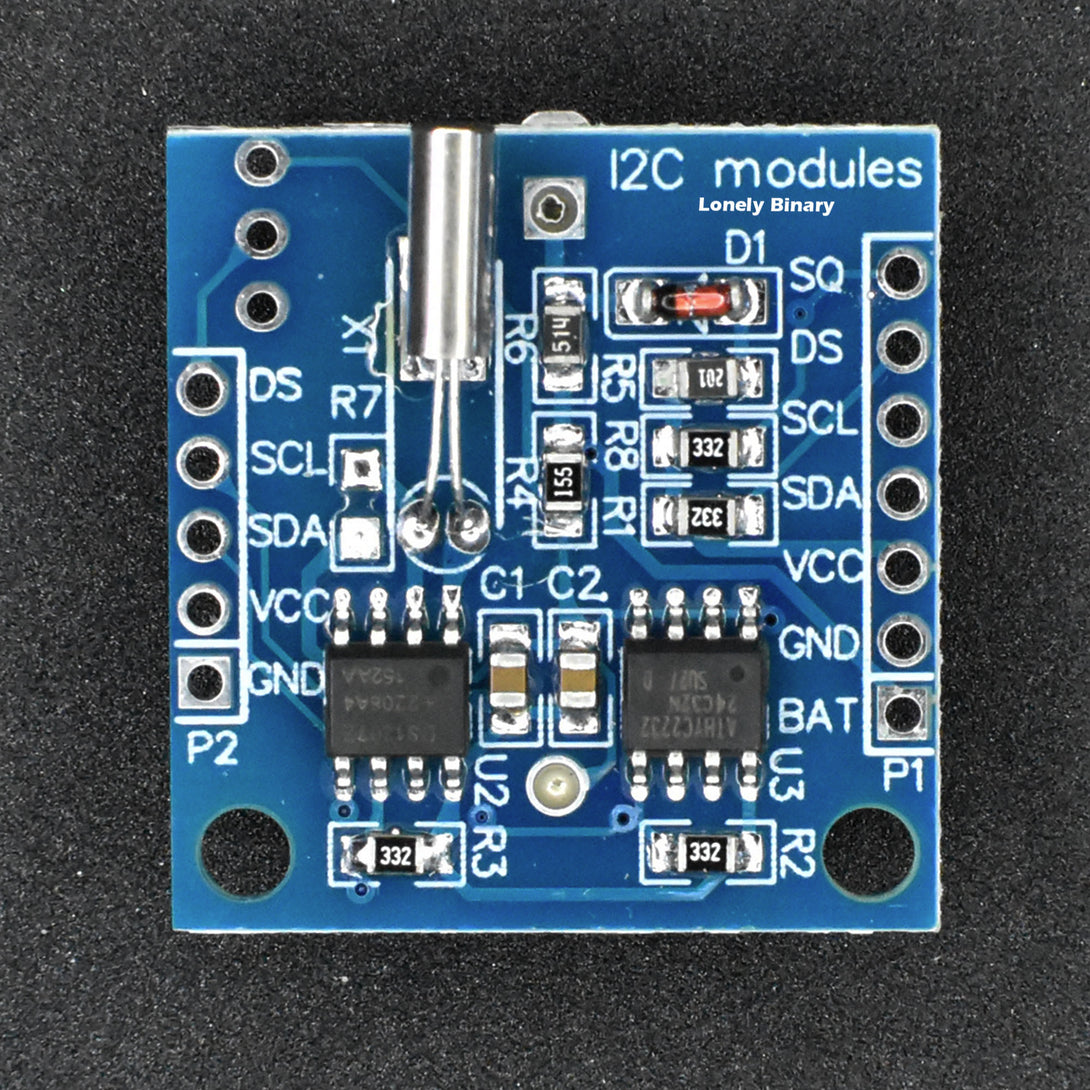

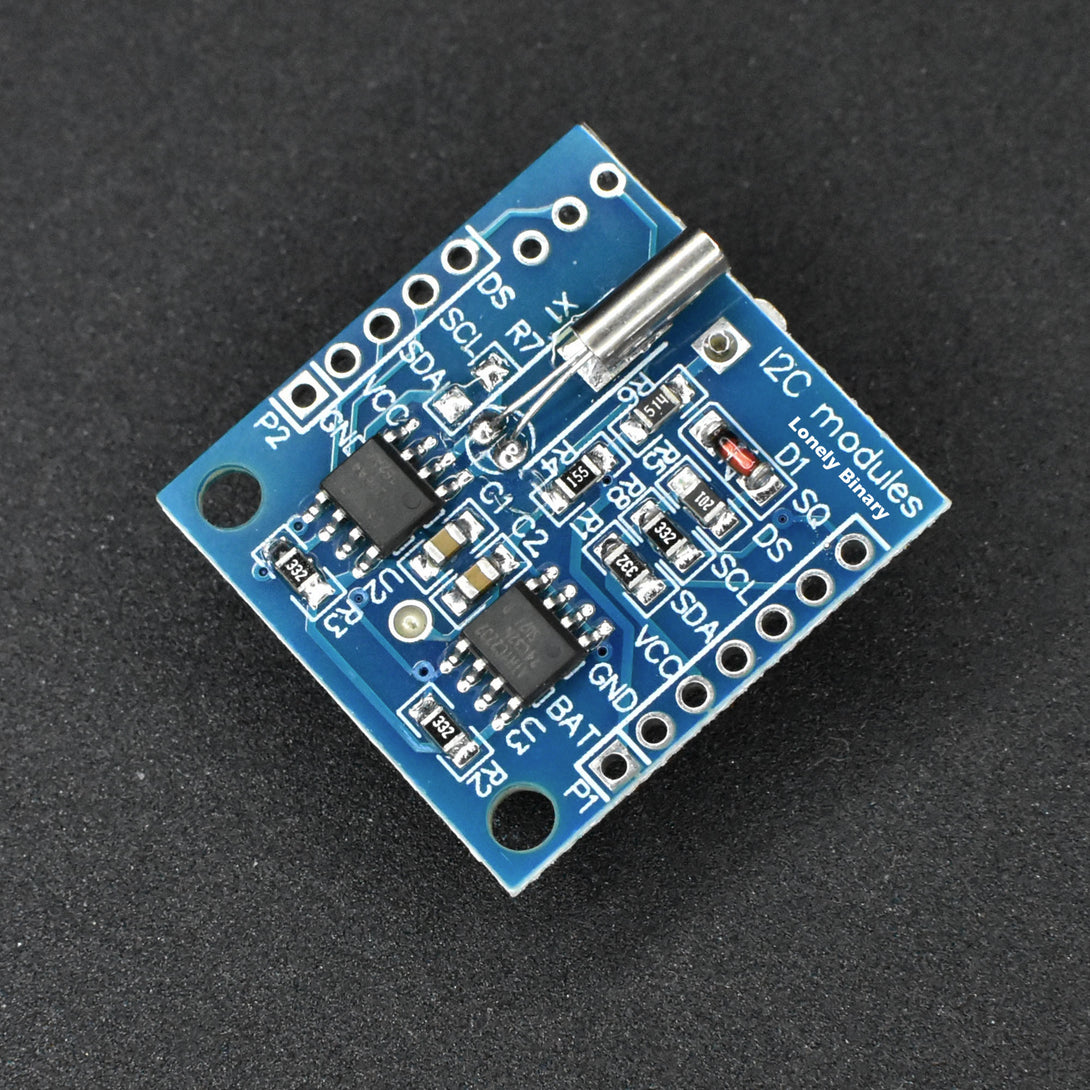

DS1307 Real-Time Clock RTC Module

Welcome to the fascinating world of Lonely Binary's DS1307 Real-Time Clock (RTC) Module!

Get ready to embark on a time-traveling journey with the ingenious DS1307 RTC chip and its trusty companion, the AT24C32 EEPROM, brought together in perfect harmony by Lonely Binary's masterful engineering team!

We've combined the timeless elegance of the DS1307 RTC chip with the delightful quirkiness of our brand, Lonely Binary, to create a match made in clockwork heaven.

Tick-tock, tick-tock – hear the rhythmic beats of accurate timekeeping powered by the DS1307. Its precision will make even the most punctual of wizards jealous!

But wait, there's more! The AT24C32 EEPROM adds a touch of memory magic to this module, letting you store and retrieve data with ease. It's like having your own pocket-sized time-traveling journal!

With the DS1307 RTC chip at its core, this module communicates seamlessly with your microcontroller through the enchanting I2C interface. The connection is so smooth; it's like telepathy between your components!

So, whether you're building a time machine, brewing a potion, or simply counting the seconds until the next Lonely Binary product launch, our DS1307 Real-Time Clock Module will keep you in perfect sync with the universe.

Don't settle for ordinary when you can have extraordinary! Embrace the magic of time with Lonely Binary's DS1307 RTC Module, because when it comes to precision and charm, Lonely Binary is your ultimate timekeeping sorcerer!



Tech Specs

Operating Voltage	5V DC - Provides a reliable and stable power supply to ensure accurate timekeeping.
Operating Temperature	-55°C to +125°C - Designed to withstand extreme temperature conditions, making it perfect for any environment.
Accuracy	±2ppm at 25°C - Offers precise timekeeping with an impressive accuracy of ±2ppm at the standard temperature.
Clock Operating Frequency	32.768KHz - A crystal-clear clock operating frequency for smooth and seamless timekeeping.
I2C Interface	Standard I2C interface, with 7-bit addressing - Seamlessly communicate with your microcontroller using the popular I2C interface with 7-bit addressing.
SRAM Memory	56 bytes of battery-backed SRAM - Safely store your essential data with 56 bytes of battery-backed SRAM.
Battery Backup	3V Lithium Coin Cell or equivalent - Ensures uninterrupted timekeeping even during power outages with a 3V Lithium Coin Cell or equivalent battery.
Operating Current	55uA (at 3V battery) - Ultra-low operating current ensures energy efficiency and extended battery life.
RTC Operating Current	Max. 200uA - The Real-Time Clock operates efficiently, consuming a maximum of 200uA.
I2C Communication Speed	100KHz and 400KHz - Enjoy the flexibility of communication speeds at 100KHz and 400KHz, tailored to your needs.
Real-Time Clock Counter	Hours, Minutes, Seconds, Day, Date, Month, and Year - Keep track of time with precision, down to hours, minutes, seconds, day, date, month, and year.
Net Weight	3.5 g
Dimension	(L) 27 mm x (W) 25 mm x (H) 5 mm

Documents

• DS1307 Datasheet

What’s in the Box

There are 5 pieces in the retail box.
The listing price is for

• 1 x DS1307 RTC Module
