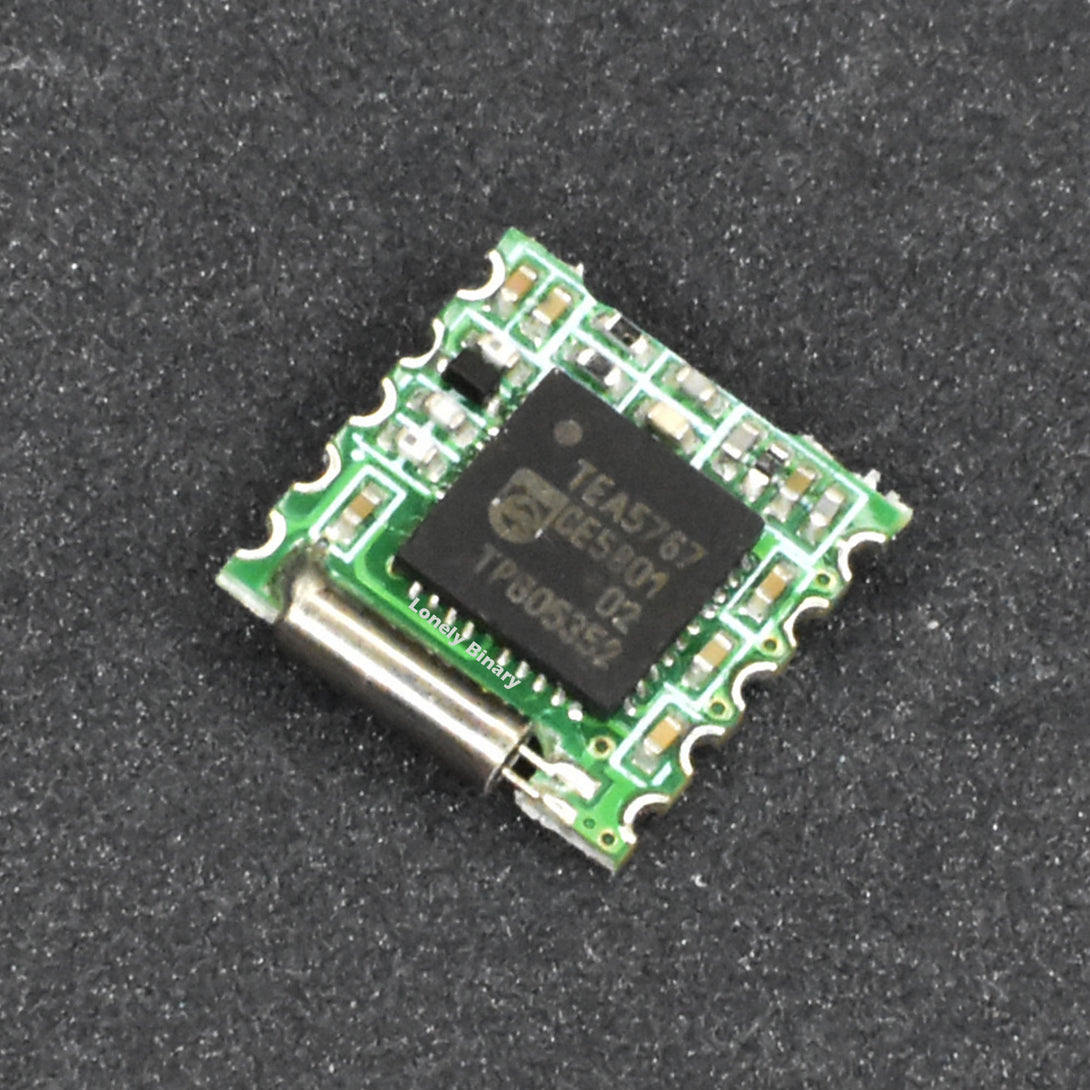

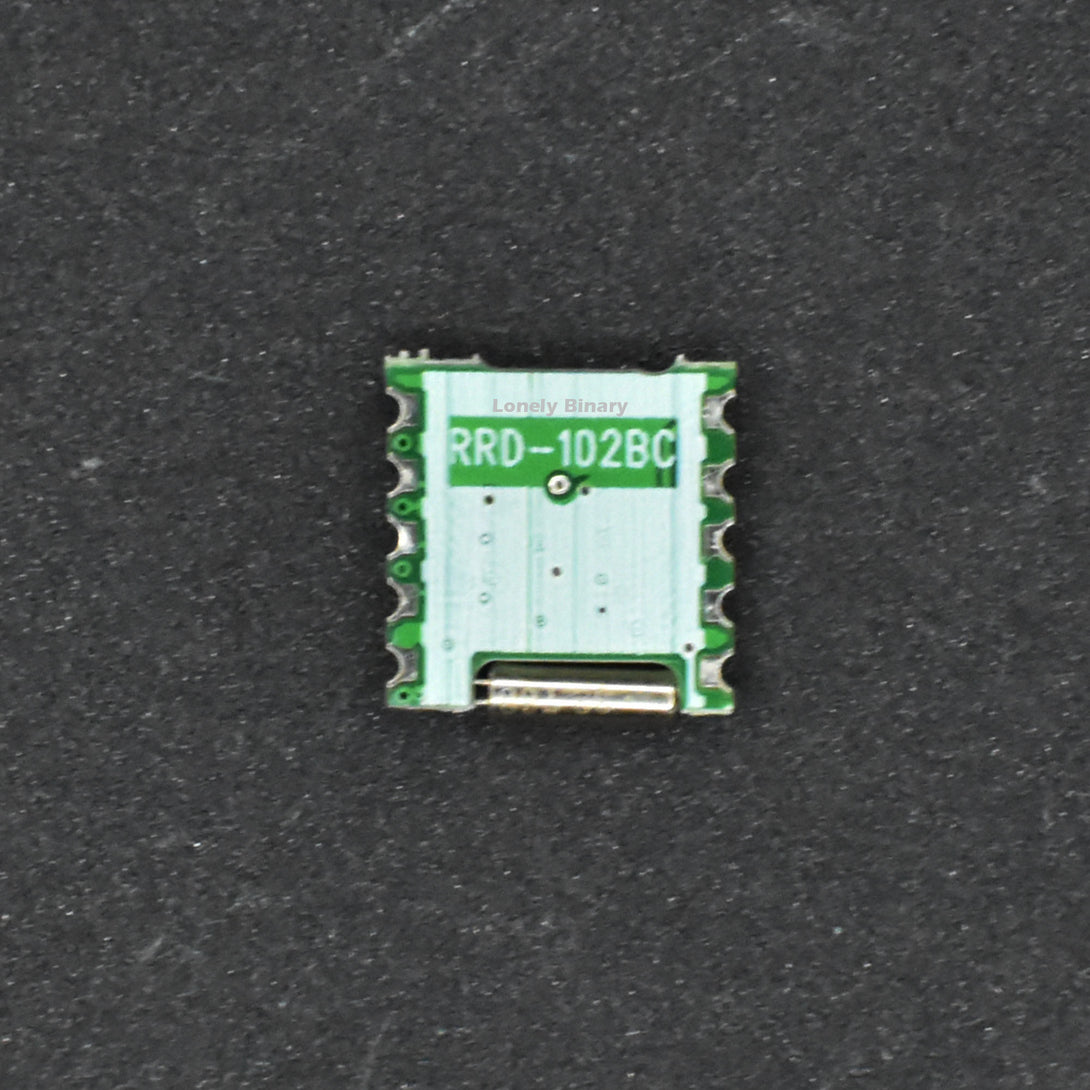

Introducing the Lonely Binary FM Module, the tiny wonder that brings the beats to your fingertips! Powered by the legendary Philips TEA5767 chip, this module is a radio revolution packed into a minuscule package.
With just a few external components and zero alignments needed, you can turn this module into a stereo FM radio that covers a frequency range from 87.6 MHz to 108 MHz. It's like having your very own concert station in your pocket! Say goodbye to complex circuitry and passive components, because this module is all about on-board silicon wizardry.
Not only does it save you money by reducing the bill of materials, but it also saves you time and headaches with its adjustment-free design. That means shorter design times, lower manufacturing costs, and increased quality and reliability for your end application. It's like having a radio genie granting all your wishes!
And let's not forget about the TEA5767's superpowers. It consumes incredibly low power, so you can groove to the music without worrying about draining your batteries. Its compact footprint makes it perfect for space-crunched projects, so you can rock out even in the tightest spots.
Whether you're tuning in to European, US, or Japanese FM bands, this module handles it all like a pro. And the best part? No external FM discriminator needed! It's a true plug-and-play experience that keeps interference at bay and lets the music flow freely.
Get ready to tune in, turn up the volume, and dance like nobody's watching with the Lonely Binary FM Module. It's time to embrace the radio revolution and unleash your inner DJ!
High sensitivity due to integrated low-noise RF input amplifier
US/Europe (87.5 MHz to 108 MHz) and Japanese (76 MHz to 91 MHz) FM band
Preset tuning to receive Japanese TV audio up to 108 MHz
RF Automatic Gain Control (AGC) circuit
I2C-bus and 3-wire bus, selectable via pin BUSMODE
Soft mute, SNC and HCC can be switched off via the bus
Adjustment-free stereo decoder
Autonomous search tuning function
Net Weight : 0.6 g

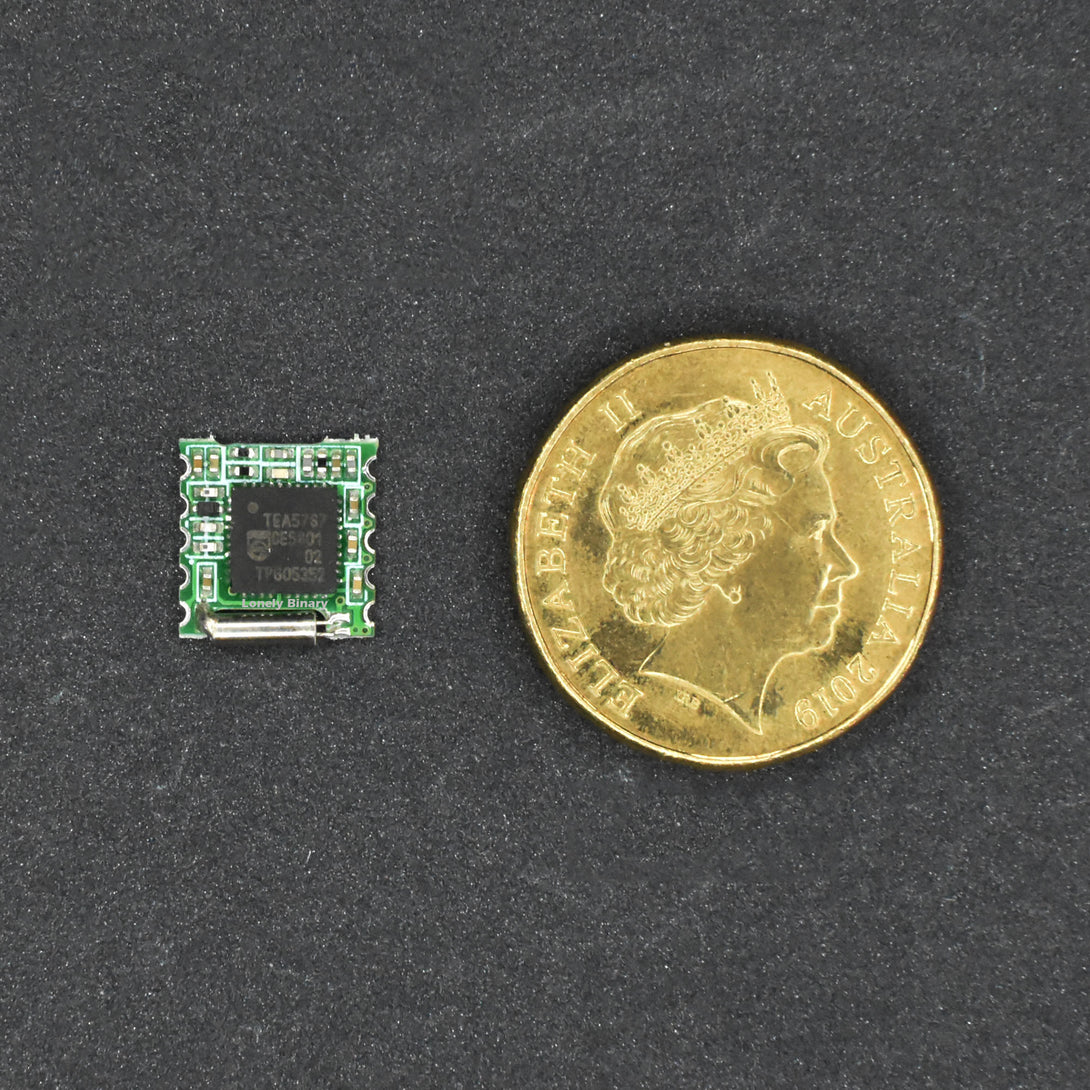

Dimension : (L) 11 mm x (W) 10 mm x (H) 2 mm
What’s in the Box
There are 3 pieces in the retail box.
The listing price is for
- 1 x FM Radio TEA5767 Module
