FM Wireless Microphone Transmitter Module

$14.00 USD
Setting up your transmitting frequency is a breeze. Simply connect your module to any MCU, such as Arduino, ESP32 or Raspberry PI and configure it through the serial port with TTL UART protocol. Enjoy accurate frequency output and a wide adjustable range, giving you full control over your wireless audio adventures.
Add to Wishlist

visamasterapple paygoogle paypaypal
SKU: SOUND-FM-TRANSMITTER
Categories: Audio Module
Overview

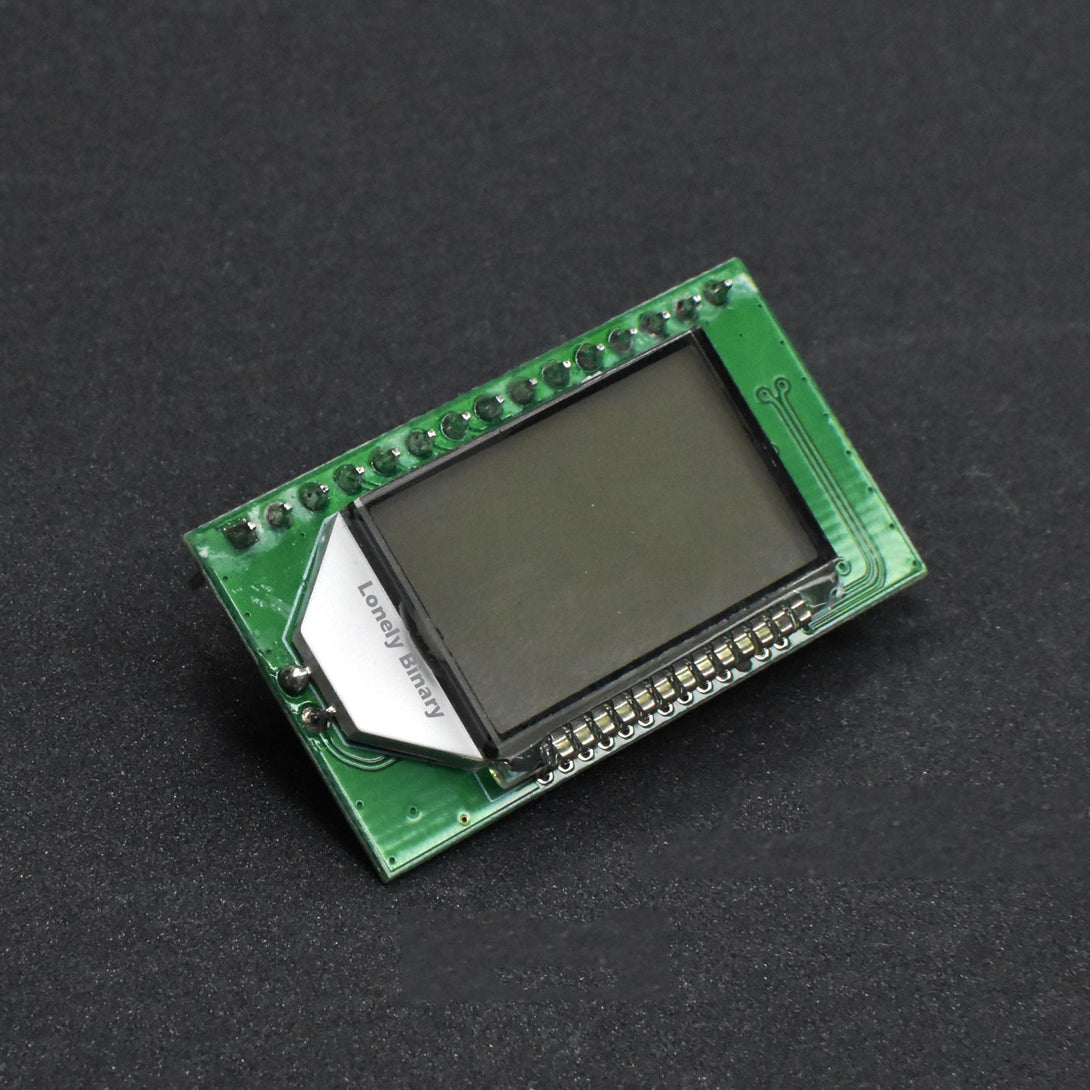

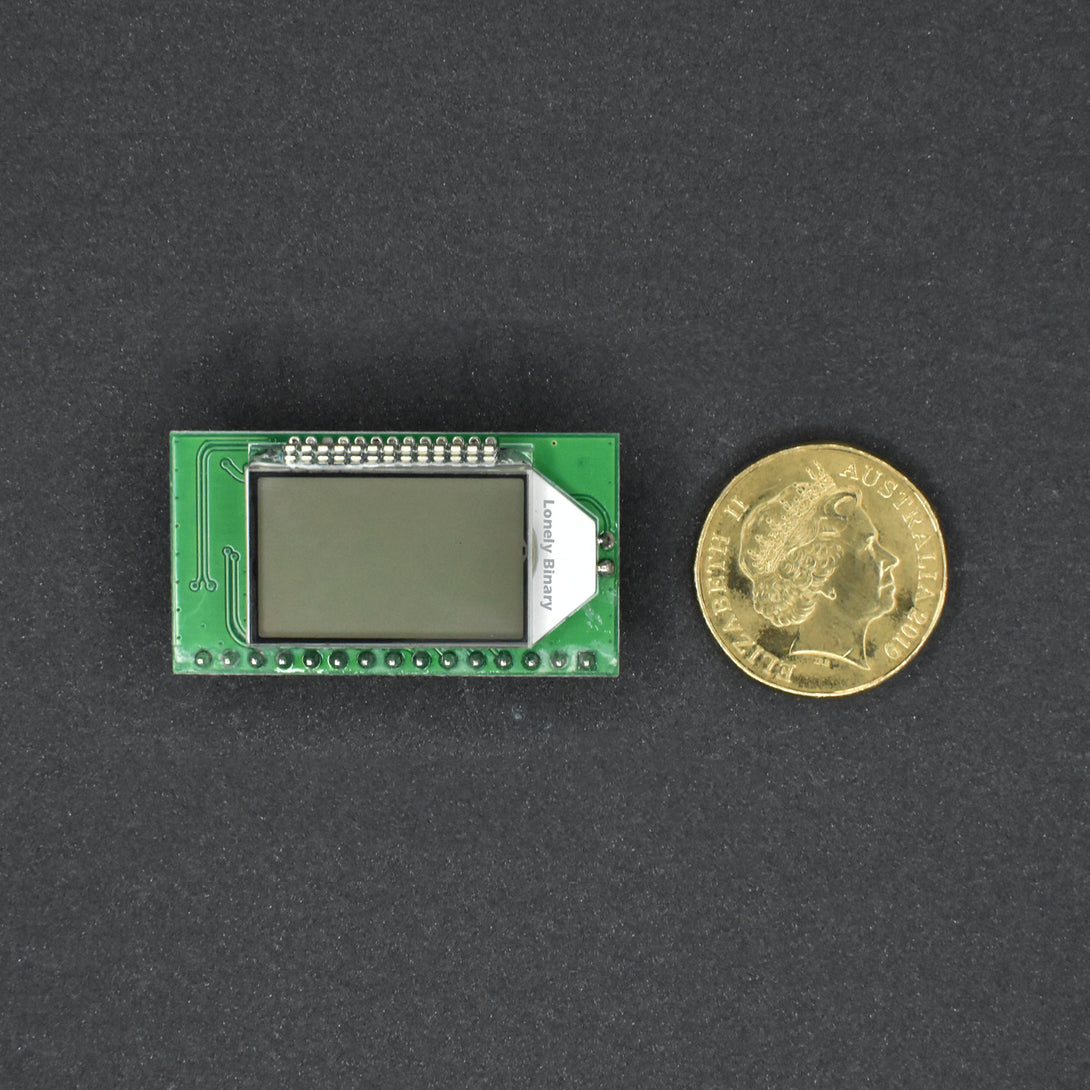

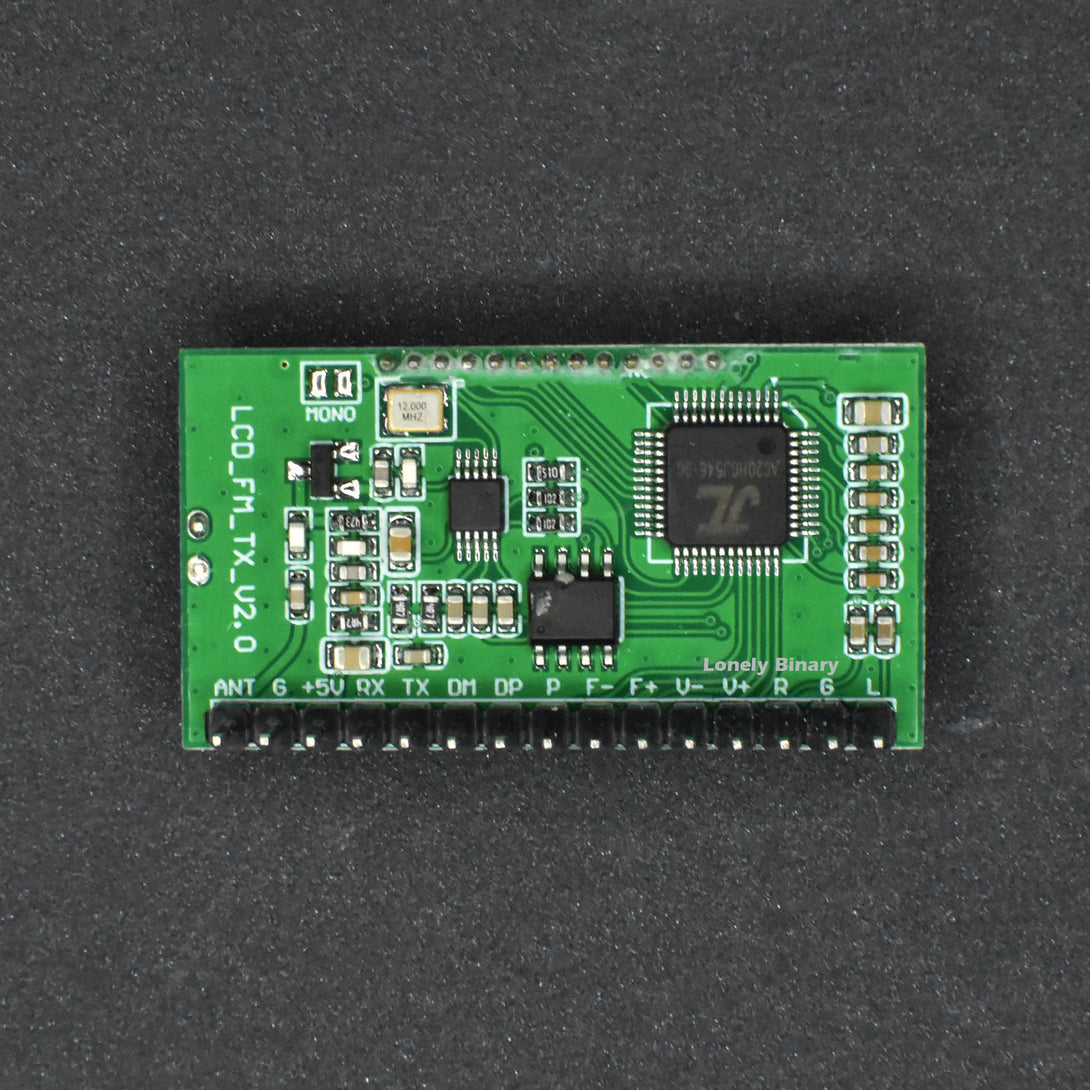

Introducing our Lonely Binary FM Wireless Microphone Transmitter Module: the ultimate gadget to bring some wireless fun to your audio experience! With advanced FM phase-locked loop modulation technology, this little gem ensures realistic and stable sound quality without any pesky frequency shifts. Say goodbye to noise interference thanks to our low-power consumption preamplifier, which guarantees crystal-clear audio.

But wait, there's more! Our transmitter remembers the frequency even after a power failure, so you can pick up right where you left off. We've also added high-precision patch quartz crystal frequency stabilization to eliminate any transmission frequency drifting caused by temperature or voltage changes. Talk about staying in tune!

Setting up your transmitting frequency is a breeze. Simply connect your module to any MCU, such as Arduino, ESP32 or Raspberry PI and configure it through the serial port with TTL UART protocol. Enjoy accurate frequency output and a wide adjustable range, giving you full control over your wireless audio adventures.



Tech Specs

Output power 100mW
Audio frequency response range 50Hz-18KHz
Transmitting frequency FCC-approved range of 76.0MHz-108.0MHz
Modulation mode standard FM
Channel mono
Supply voltage DC 3.0V-5.0V
Working current 35mA
Transmitting antenna 75cm rod antenna (not included)
Emission distance Up to 100 meters (Note
Net Weight 7.5 g
Dimension (L) 40 mm x (W) 20 mm x (H) 7 mm

What’s in the Box

  • 1 x FM Wireless Microphone Transmitter Module
