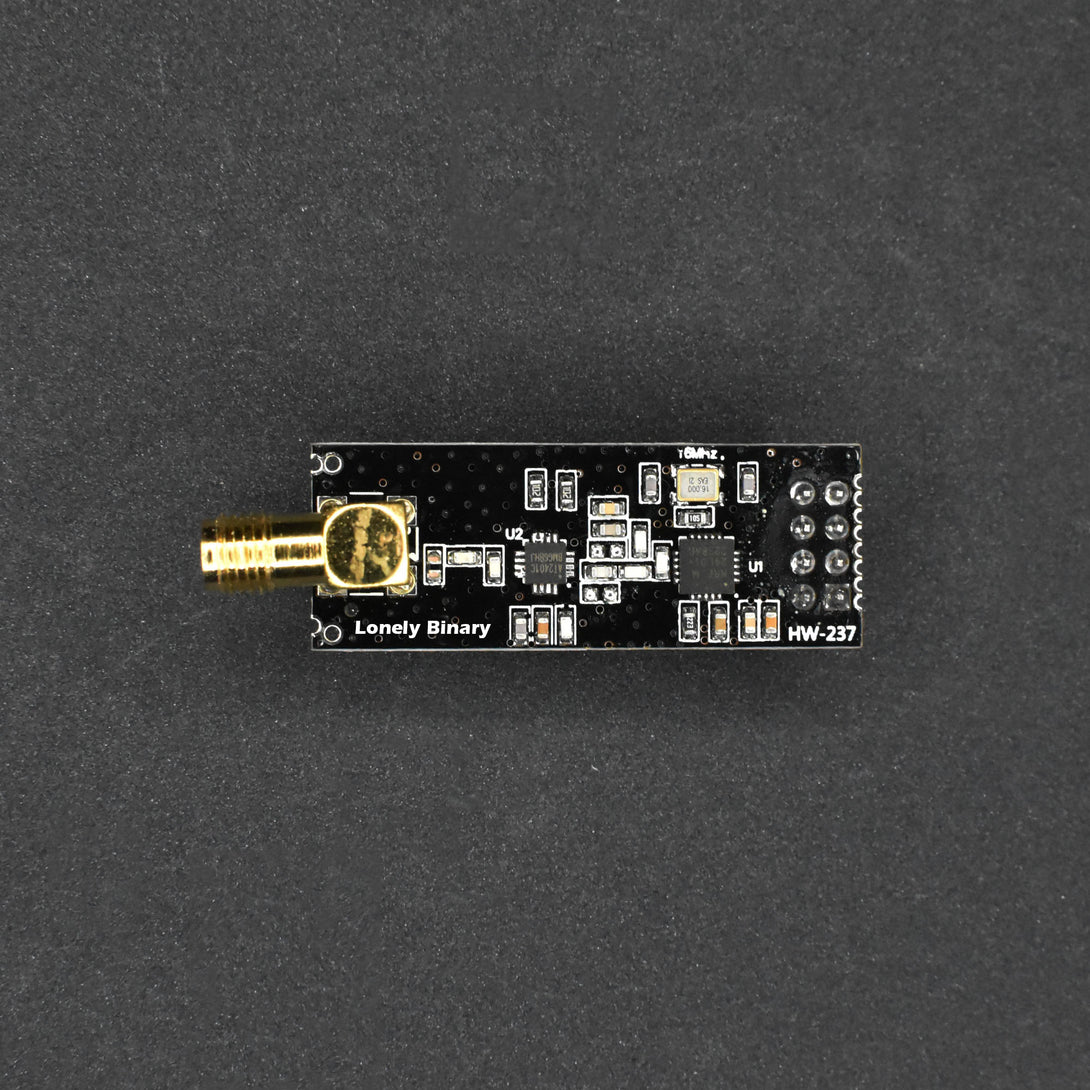

nRF24L01+PA+LNA Wireless Module with External Antenna

Introducing the extraordinary Lonely Binary NRF24L01, a wireless module that will redefine the way you experience data transmission. With its high-power and high-sensitivity capabilities, this module is designed to push the boundaries of connectivity, allowing for ultra-long-distance communication. Whether you're seeking point-to-point applications or building a star network, the Lonely Binary NRF24L01 + PA + LNA Division has got you covered in the 2.4G ISM band. Its integration is top-notch, with optimized RF performance and compact size, making it conveniently embedded in your projects. Trust in the excellence and innovation of Lonely Binary as you embark on a wireless journey like never before. Get ready to unleash the power of seamless connectivity and explore endless possibilities with the Lonely Binary NRF24L01 + PA + LNA by your side.



Tech Specs

Superior Build	Crafted with high-quality materials, this module is built to last, ensuring durability and long-term performance.
Powerful Transceiver	The NRF24L01 is a 2.4GHz ISM band transceiver that boasts a fully integrated frequency synthesizer, power amplifier, crystal oscillator, demodulator, modulator, and enhanced protocol engine.
Easy Communication	Communicate and configure the nRF24L01+ effortlessly using the 4-pin serial peripheral interface (SPI). Access configuration registers conveniently through an SPI connection.
Customizable Parameters	Tailor your wireless setup with ease. Adjust frequency channel from a vast selection of 125 optional channels, fine-tune output power, and select data rates of 250kbps, 1Mbps, or 2Mbps.
Hassle-Free Integration	Designed to simplify your projects, this module supports a 5V withstand voltage input and allows direct SPI pin connection to compatible devices.
Regulatory Compliance	Enjoy peace of mind as the module meets RF regulatory standards with internal filtering.
Enhanced Radio Performance	The module utilizes Gaussian Frequency Shift Keying (GFSK) modulation and fast automatic gain control (AGC), delivering superior radio performance for your applications.
Net Weight	5 g
Dimension	(L) 48 mm x (W) 15 mm x (H) 10 mm

Documents

• NRF24L01 Datasheet

What’s in the Box

There are 3 pieces in the retail box.
The listing price is for

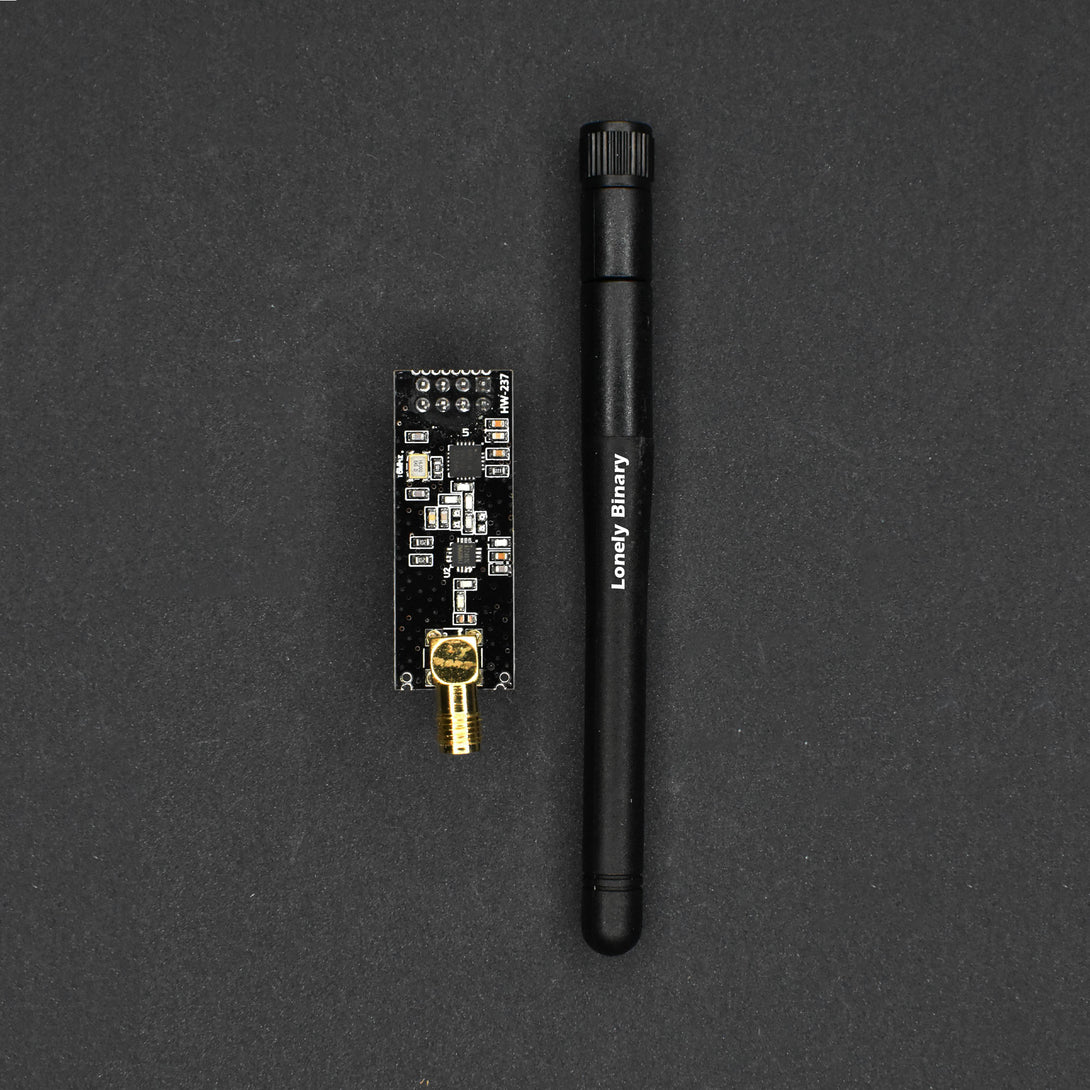

• 1 x NRF24L01+PA+LNA Wireless Module
• 1 x External Antenna
