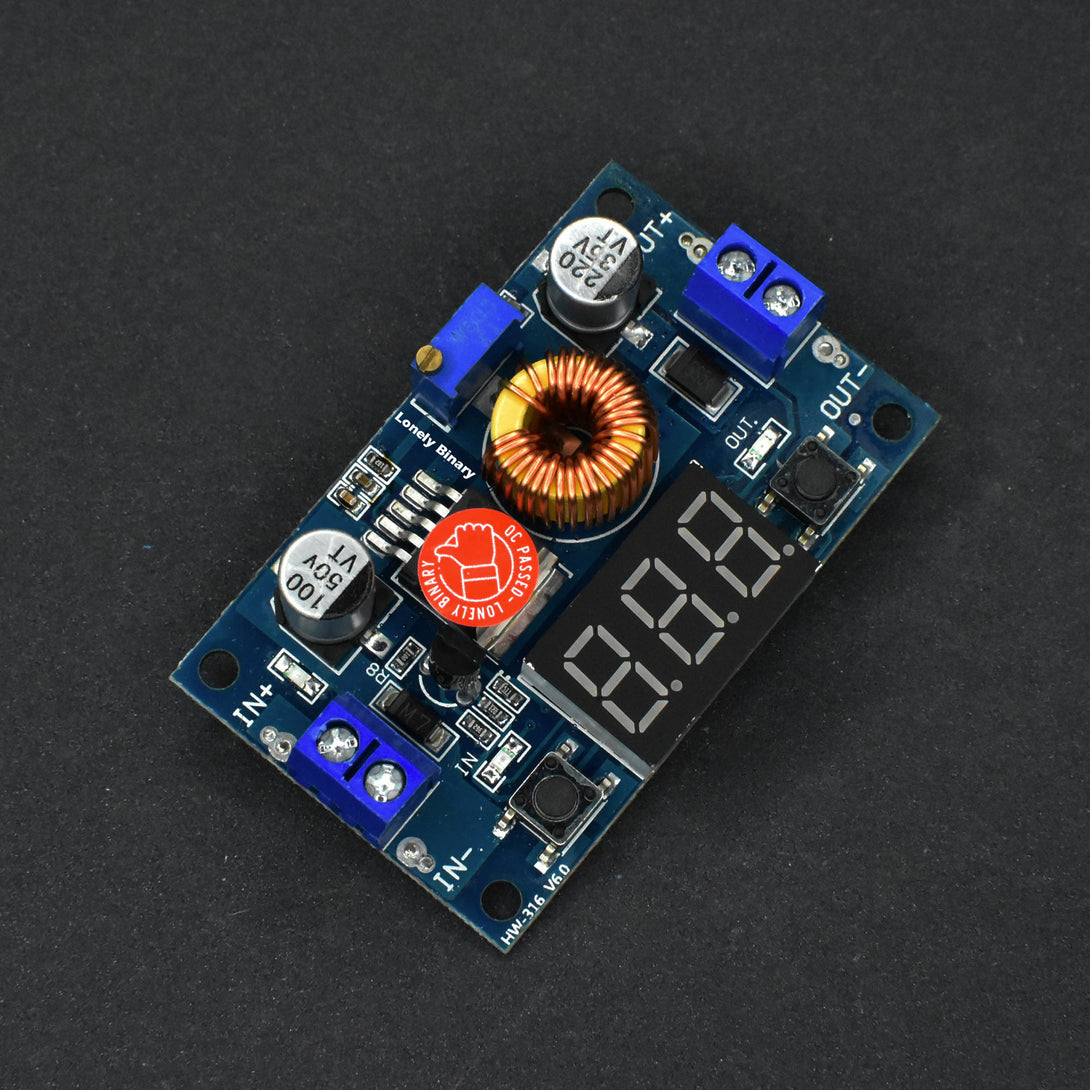

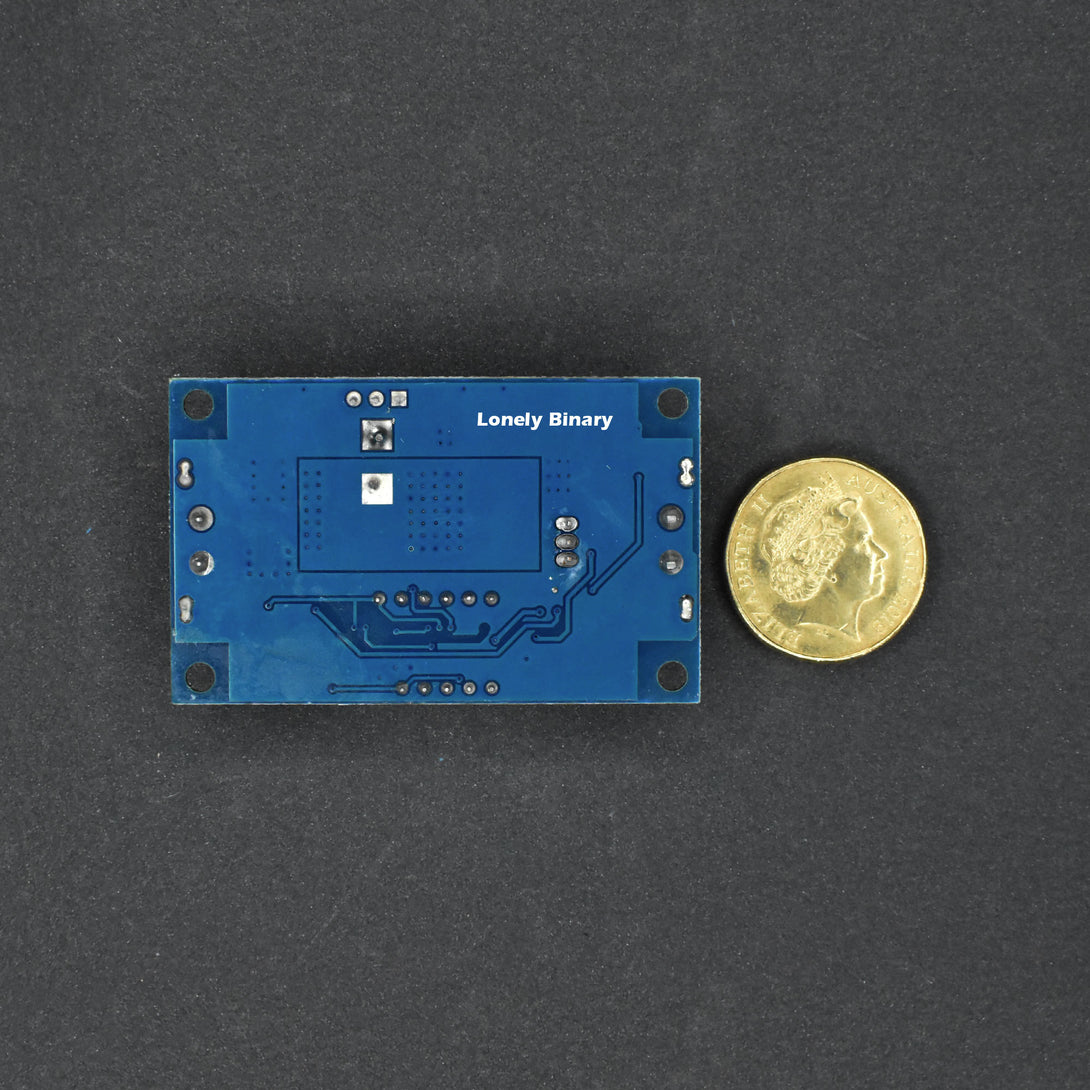

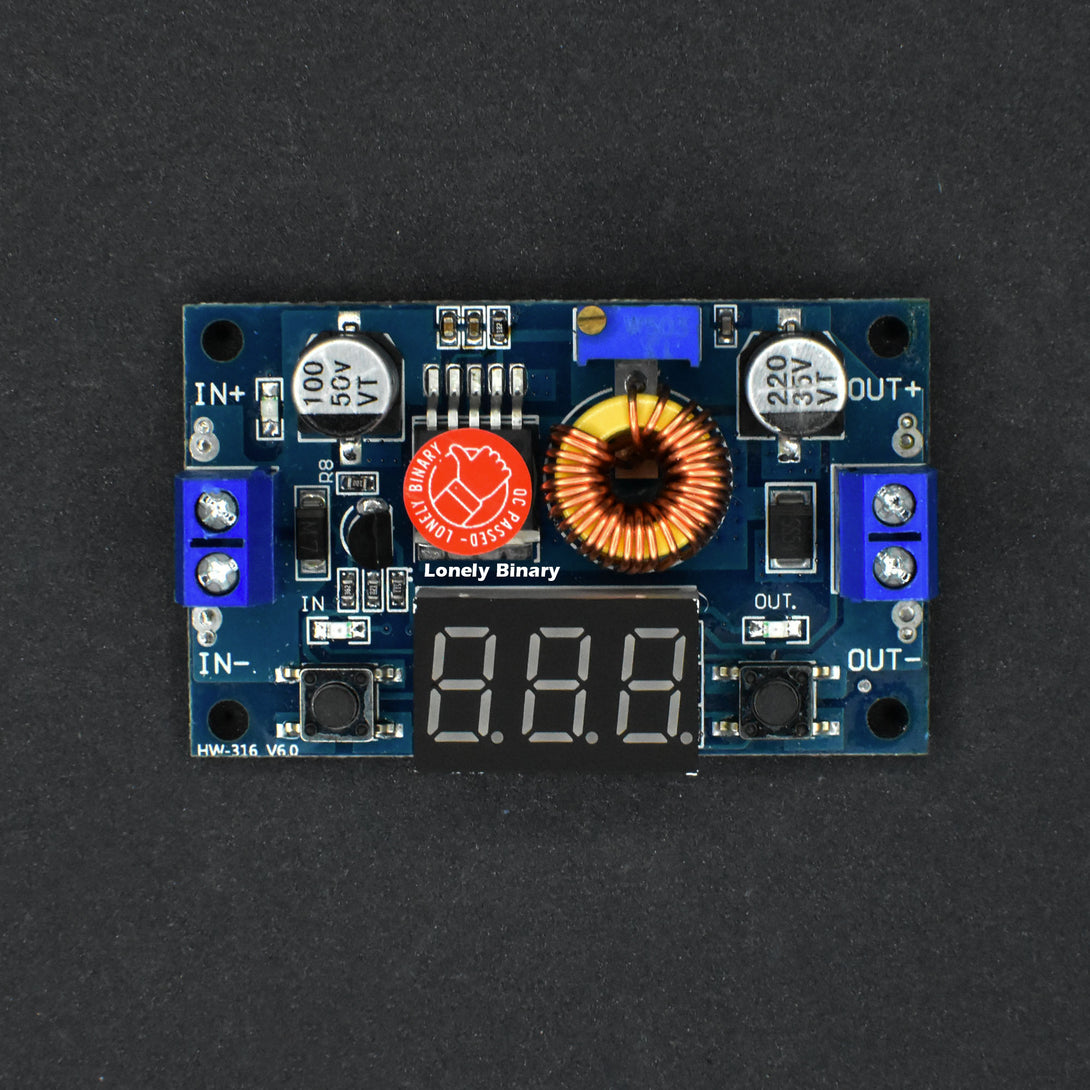

XL4015 Step Down Converter

Introducing the Lonely Binary XL4015 Power Module: The Marvel of Efficient Power Conversion!

Are you tired of bulky power modules that take up precious space in your projects? Say goodbye to those outdated designs and say hello to the Lonely Binary XL4015 Power Module! This sleek and compact module operates at a blazingly fast switching frequency of 180kHz, revolutionizing the way you handle power conversion.

Equipped with the mighty XL4015 switching regulator, this power module is a true powerhouse. It effortlessly drives a 5A load with impeccable line and load regulation, ensuring stable and reliable power delivery to your devices. Bid farewell to voltage fluctuations and welcome a world of steady and consistent power supply.

What sets the Lonely Binary XL4015 Power Module apart from the rest is its exceptional efficiency. Unlike conventional boost regulators, this module boasts an impressive output efficiency that maximizes power utilization while minimizing wastage. You'll be amazed at how it optimizes power delivery, saving you energy and prolonging the battery life of your devices.

Designed with space optimization in mind, the Lonely Binary XL4015 Power Module is the perfect fit for any project. Its compact size and innovative toroidal ring inductor make it a true space-saving marvel. Now you can enjoy powerful and efficient performance without sacrificing valuable real estate in your electronic creations.

Lonely Binary is proud to offer you this cutting-edge power solution, engineered to meet the highest standards of quality and performance. Trust in the brand that's synonymous with innovation and reliability. Trust in Lonely Binary.

Upgrade to the Lonely Binary XL4015 Power Module today and experience the unparalleled efficiency and space-saving design that will take your projects to new heights. Unleash the power of efficiency with Lonely Binary!



Tech Specs

Wide Input Voltage Range	Accepts input voltages from 4V to 38V, ensuring compatibility with various power sources.
Adjustable Output Voltage	Easily customize your output voltage from 1.25V to 36V, allowing for flexible power requirements.
High Output Current	With a maximum output current of 5A, this power module provides ample power to drive your devices and components.
Recommended Output Power	Enjoy a recommended power usage of up to 75W, perfect for a range of applications.
Heat Sink Recommendation	For output power exceeding 50W, it is advised to use a heat sink to ensure optimal performance.
Impressive Efficiency	Experience up to 96% efficiency, translating to minimal power loss and more energy savings.
Precise Load Regulation	Enjoy a load regulation of just 0.8%, ensuring stable and consistent output performance.
Accurate Voltage Regulation	Benefit from precise voltage regulation of 0.8%, keeping your devices powered with precision.
Onboard Potentiometer	Adjust your output voltage effortlessly using the onboard potentiometer, offering convenience and flexibility.
Power LED Indicator	Stay informed with the built-in power LED indicator, providing a visual cue for power status.
Thermal Protection	Rest easy knowing that thermal protection is enabled, safeguarding against overheating and ensuring device longevity.
Short Circuit Protection	The module is equipped with short circuit protection, limiting the current to 8A for enhanced safety.
Net Weight	23.5 g
Dimension	(L) 60 mm x (W) 35 mm x (H) 12 mm

Documents

• XL4015 Datasheet

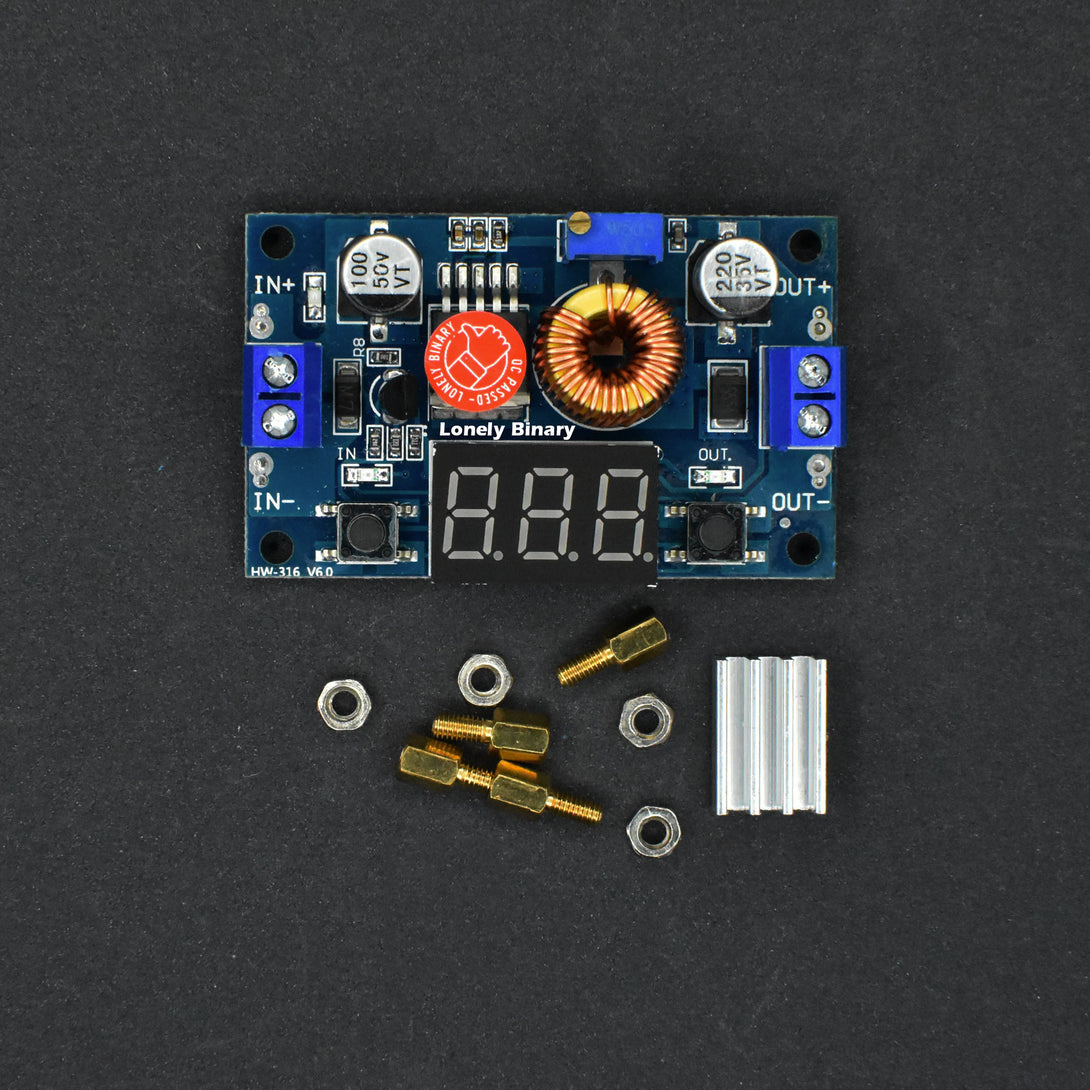

What’s in the Box

There are 3 pieces in the retail box.
The listing price is for

• 1 x DC-DC Converter XL4015
