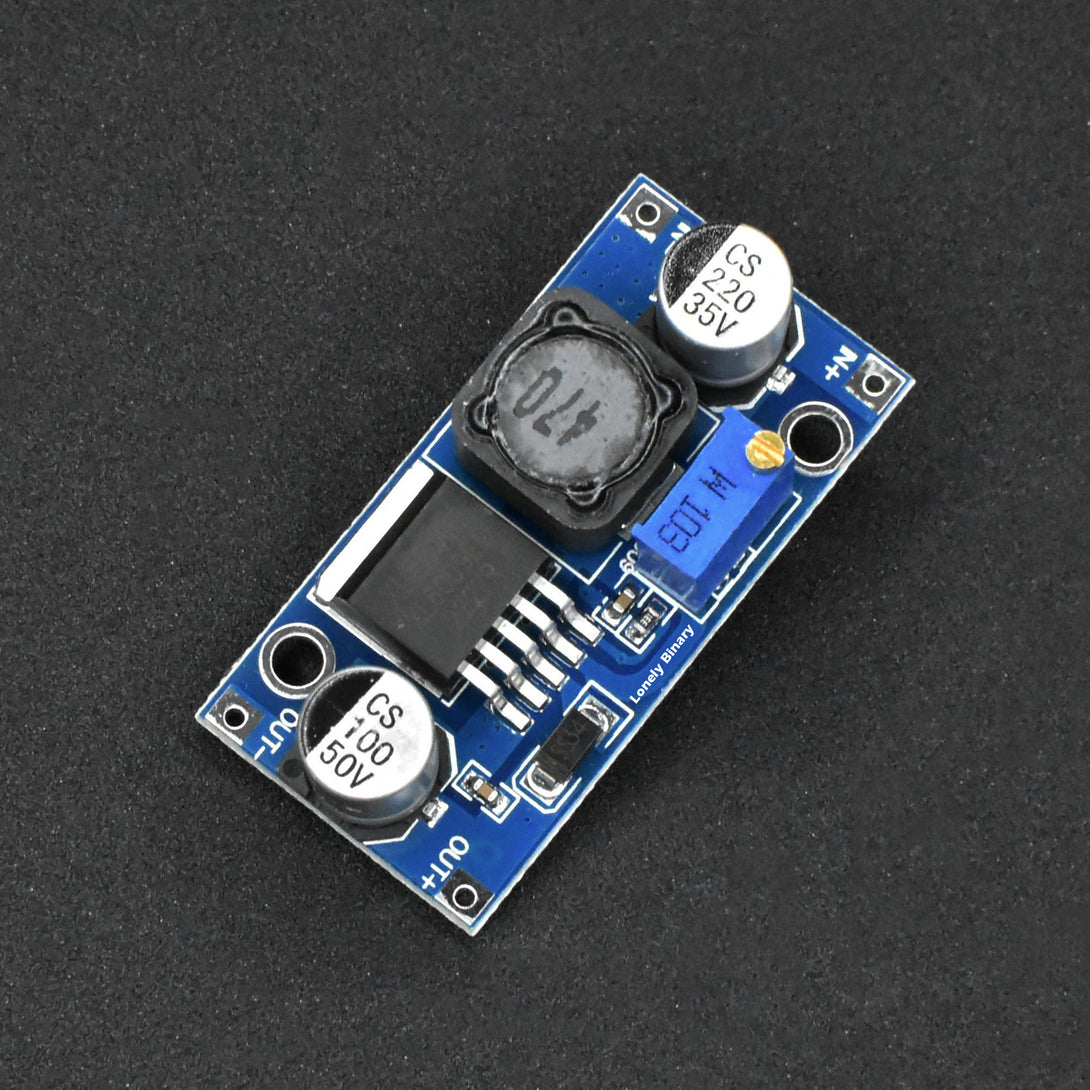

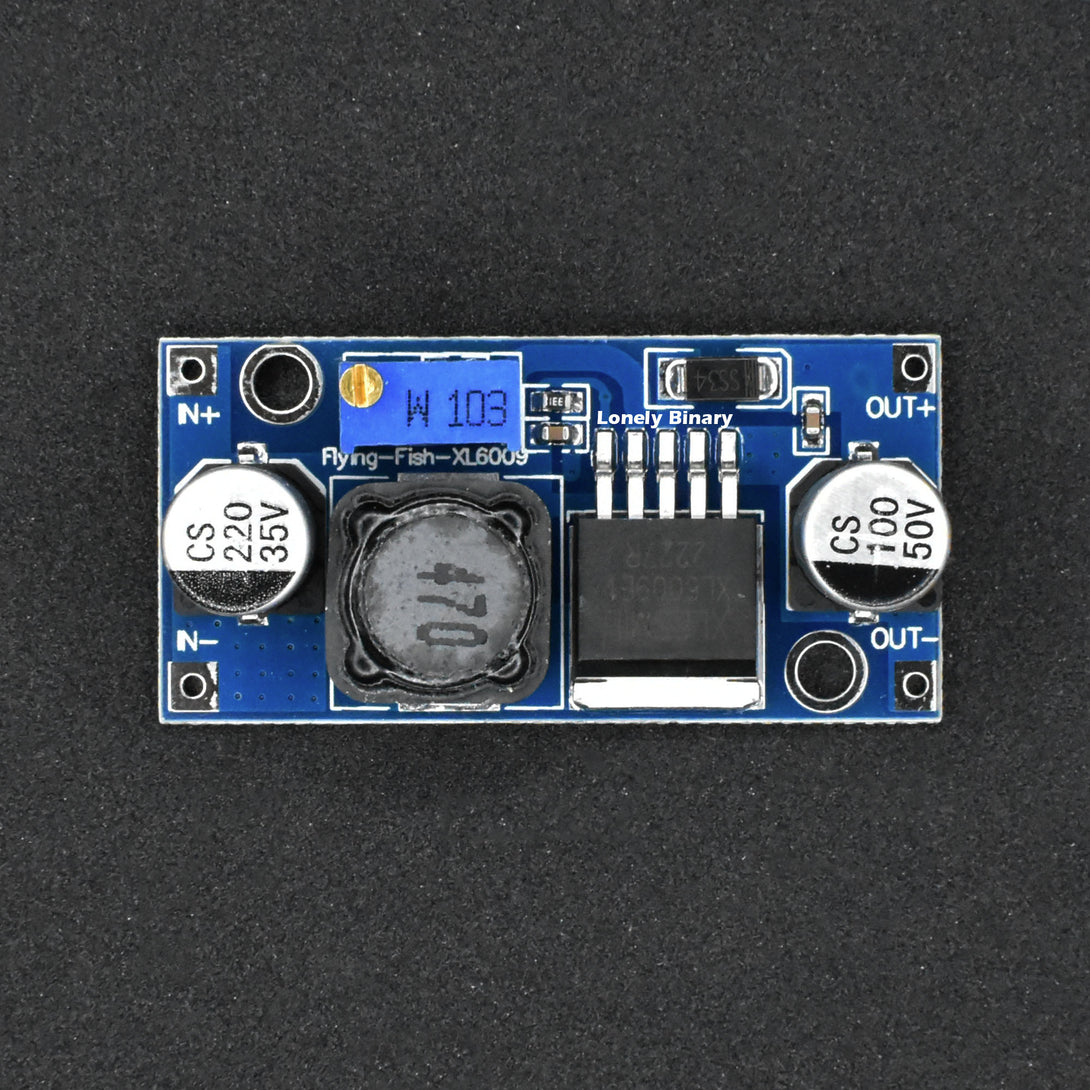

Introducing the Lonely Binary XL6009 module. This remarkable DC-DC switching boost converter is here to take your projects to the next level. With its outstanding line and load regulation, it can effortlessly drive a 4A load, ensuring stable and reliable performance. Operating at a frequency of 400kHz, this module utilizes smaller-sized filter components, making it a compact and efficient choice. Whether you need to step up or step down the voltage, the Lonely Binary XL6009 module has got you covered. Upgrade your power supply game and unleash your creativity with Lonely Binary. Get yours today and experience the power of innovation!
|Input voltage range||3 - 32V for versatile compatibility.|
|Voltage regulation accuracy||Achieve precise voltage regulation with an accuracy of 0.5% for stable operation.|
|Onboard adjustable potentiometer||Easily adjust the output voltage using the convenient onboard potentiometer.|
|Non-isolated constant voltage module||Designed to maintain a steady voltage output for enhanced reliability.|
|Non-synchronous rectification||Utilizes non-synchronous rectification for efficient power conversion.|
|Short circuit protection||Equipped with current limiting and recovery features for reliable short circuit protection.|
|Net Weight||10 g|

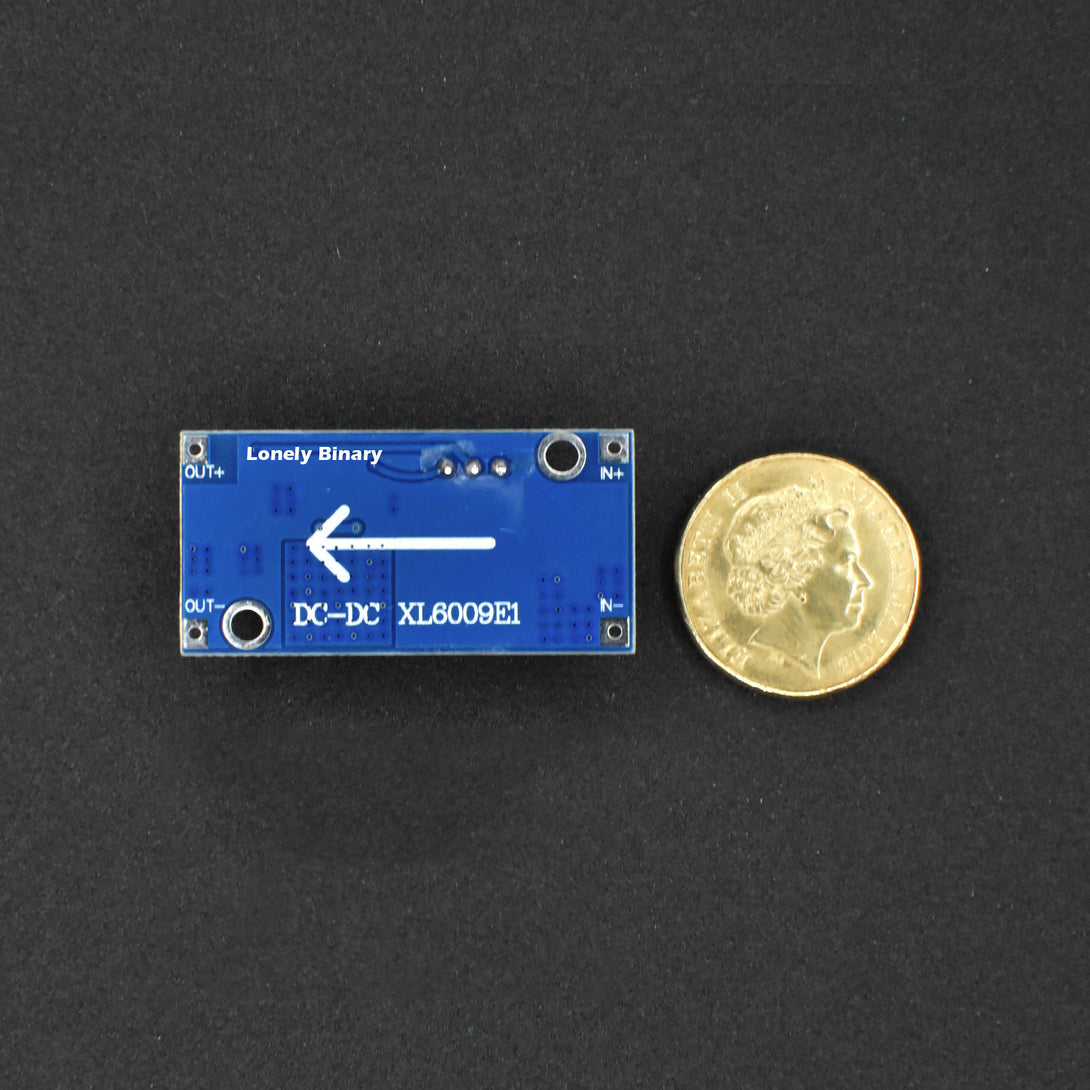

|Dimension||(L) 43 mm x (W) 20 mm x (H) 10 mm|
What’s in the Box
There are 3 pieces in the retail box.
The listing price is for
- 1 x XL6009 Module
- Australia Orders over $55 - Your order will enjoy free shipping via Australia Post Standard Shipping Services.
- International Orders over $99 - Your order will be posted via Australia Post Air Mail Services.
Raspberry Pi board / Micro:bit board / NVIDIA board will be excluded; All PCB orders will not enjoy free shipping. Distributors and wholesale orders are not eligible for free shipping.
At this time, LONELY BINARY is an online-only business, with our products available through lonelybinary.com. This allows us to keep the cost down for the customer. Orders cannot be picked up.
We ship Australia wide to all addresses, including PO Box, Parcel Locker, etc.All Australian orders will be shipped via Australia Post, Courier Please or Fastway Couriers (Aramex). International Orders will be shipped via Australia Post or DHL. Your order will be shipped within one business day after we receive payment, providing the items are in stock.
Sent via standard Australia Post stamped letter mail, typically 5-9 business days. No tracking/support available other than confirmation of dispatch.
Sent via Australia Post Express Service, Fastway Courier or Courier Please, 1 – 2 business days for metro orders, potentially longer for orders outside of metro zones, with full tracking.
Non-metro addresses in WA, NT, SA & TAS can take 2+ days in addition to the above information.
Shipping costs for international orders vary depending on location and package size, where possible we have kept this to flat rate charges to reduce confusion. International orders are shipped through Australia Post and DHL courier service depending on the most economical at the time.
|Shipping Method via||Delivery Area||Delivery Time(business day)||Tracking No.||Weight Limit|
|western EU||2-3||YES||No Limit|
|eastern EU||3-5||YES||No Limit|
|North America||2-3||YES||No Limit|
|South America||3-5||YES||No Limit|
|South Africa||3-5||YES||No Limit|
We bought around around 100 of these devices for a project with the requirement of up stepping 3.3V to 9V. The specification states they will work from 3V, but in practice they will only work from 3.4V. When 3.3V is fed in, the output voltage will vary in the 40V range, well out of range of what was needed.
