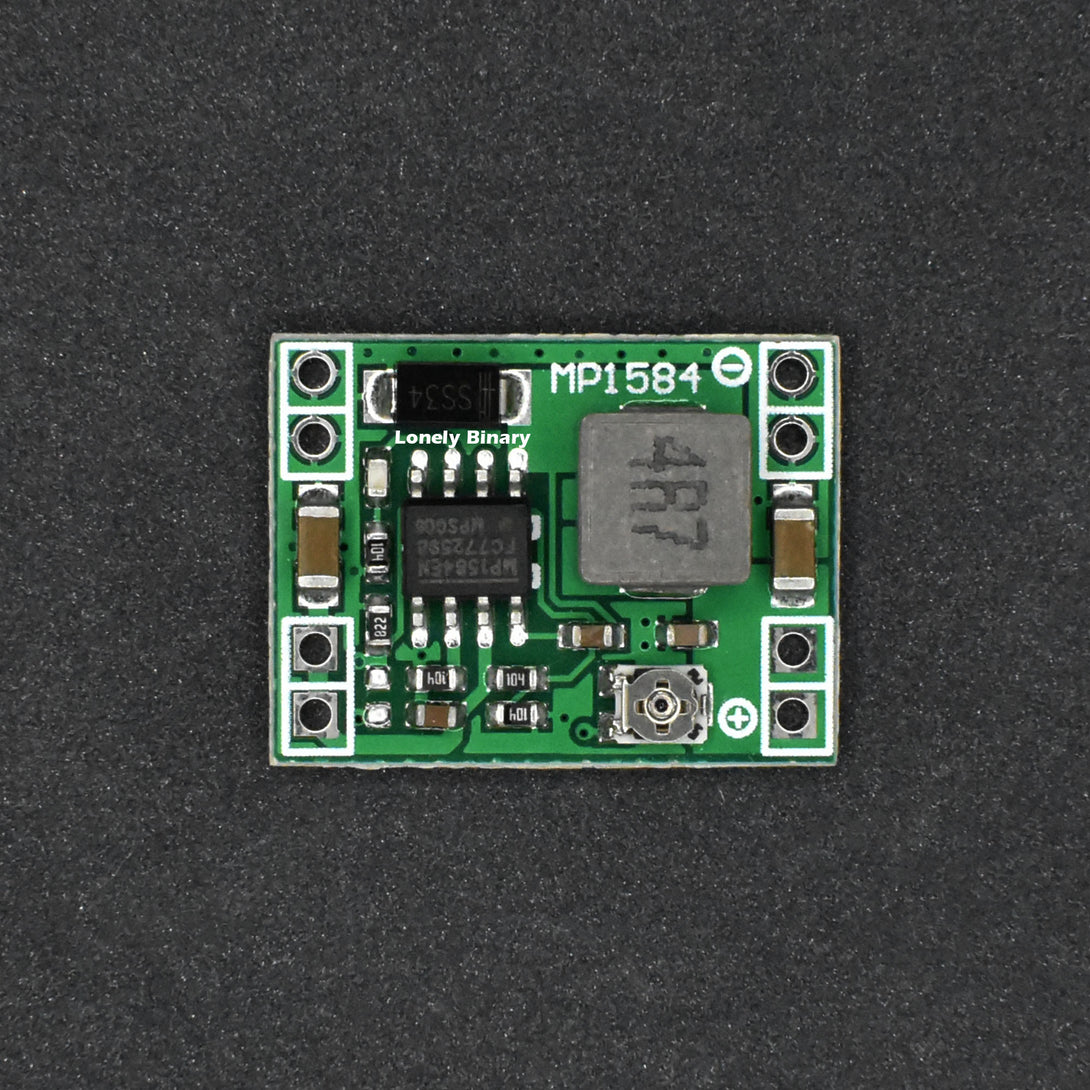

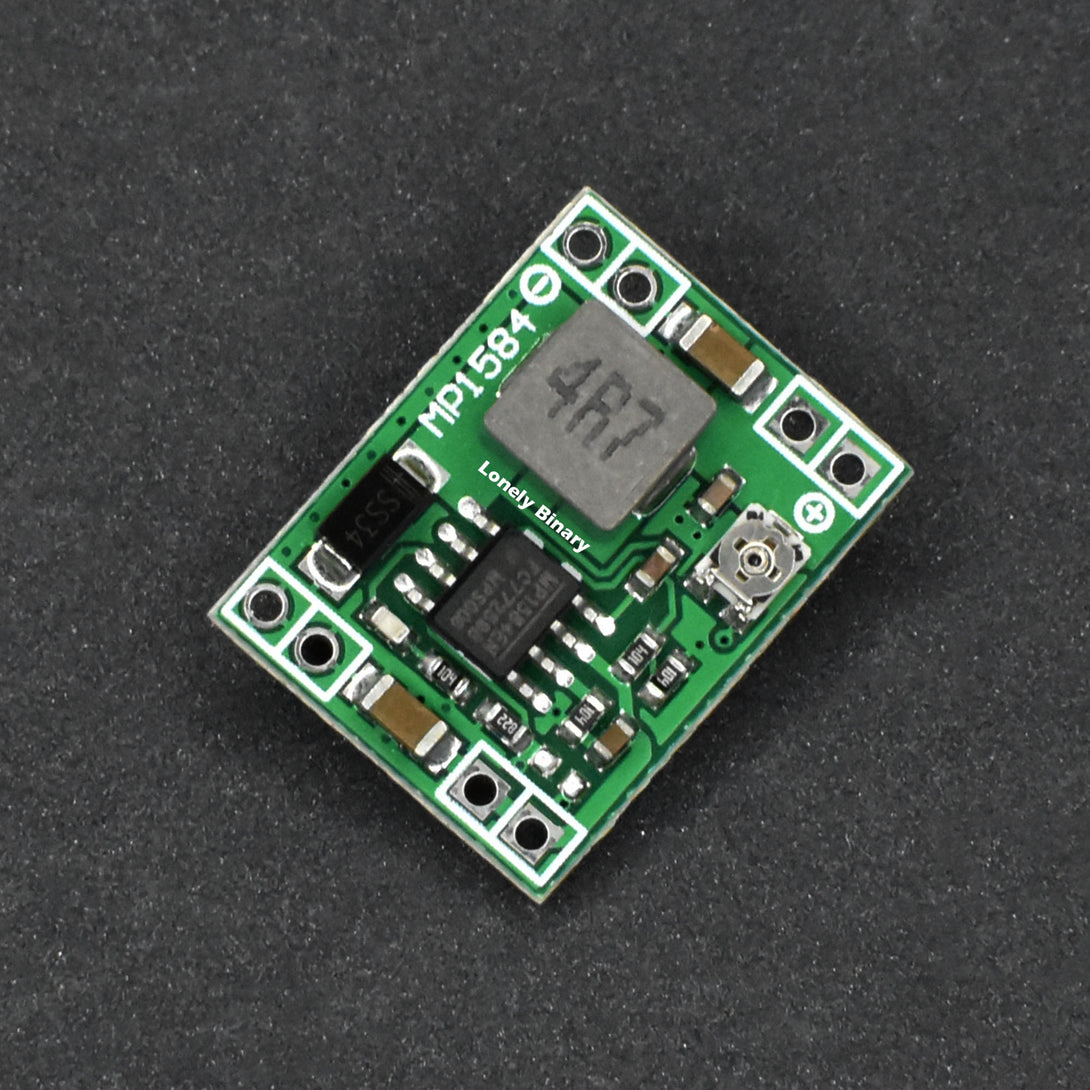

MP1584 Step Down Module

Introducing the Lonely Binary MP1584 Module, your ultimate power companion in a compact and versatile package. With our brand name echoing through every line, get ready to experience the power of Lonely Binary like never before.

Unleash the potential of your electronics with the DC-DC Step-Down converter, also known as the 'Buck' converter. It's like having a magical voltage genie that effortlessly transforms a higher voltage into a lower one while boosting the available current. Watch your devices come to life with precision and efficiency.

Adjustability is the name of the game. Our MP1584 Module allows you to dial in the perfect output voltage, ranging from a humble 0.8V to a mind-blowing 20V. That's right, we're giving you the power to customize your experience, all while maintaining a continuous current of up to 1.5A. Need a little extra oomph? No worries! Our module can handle short-term currents of up to 2A, delivering that extra punch when you need it most.

But wait, there's more! We've packed the MP1584 with the Lonely Binary magic. Say goodbye to worries about input voltage. Just make sure it's higher than the output voltage, and our trusty module will handle the rest. With a typical voltage drop-out of 1.6V, we've got you covered.

Safety is our top priority, and we've got your back. While the MP1584 is capable of handling up to 3A (impressive, right?), we recommend keeping the current around 1.5A or less for extended operation. With minimal heat sinking, we want to ensure your module stays cool and reliable, giving you the power you need without breaking a sweat. We've even included built-in over current and thermal limiting features to protect your precious devices and prevent any superhero-level mishaps.

And let's not forget the icing on the cake. Our MP1584 Module embraces the future with open arms, using low ESR bulk ceramic capacitors instead of those old-fashioned electrolytic caps. Not only does it make for a more compact design, but it also eliminates those long-term aging concerns. It's a win-win situation.

So, join the Lonely Binary revolution and experience the power of the MP1584 Module. Say goodbye to ordinary and embrace the extraordinary. Get ready to power up your world, one voltage at a time. Trust in Lonely Binary, your ultimate source of electrifying greatness.



Tech Specs

Adjustable Output Voltage	Customize your experience with a voltage range of 0.8V to 20V, tailored to your specific needs.
High Current Capability	Enjoy a continuous current output of up to 1.5A and short-term peaks of up to 2A for those extra power-hungry moments.
Efficient Performance	The MP1584 Module is designed to optimize efficiency, providing reliable power while minimizing energy waste.
Voltage Drop-Out Protection	With a typical drop-out voltage of 1.6V, rest assured that your devices will receive steady power, even with varying input voltages.
Safety Features	Built-in over current and thermal limiting features ensure the protection of your valuable electronics, shutting down the module if necessary.
Compact Design	We've packed all this power into a small form factor, allowing for easy integration into your projects without sacrificing performance.
Cutting-Edge Capacitor Technology	Say goodbye to aging concerns with low ESR bulk ceramic capacitors, providing stability and longevity to your module.
Net Weight	2 g

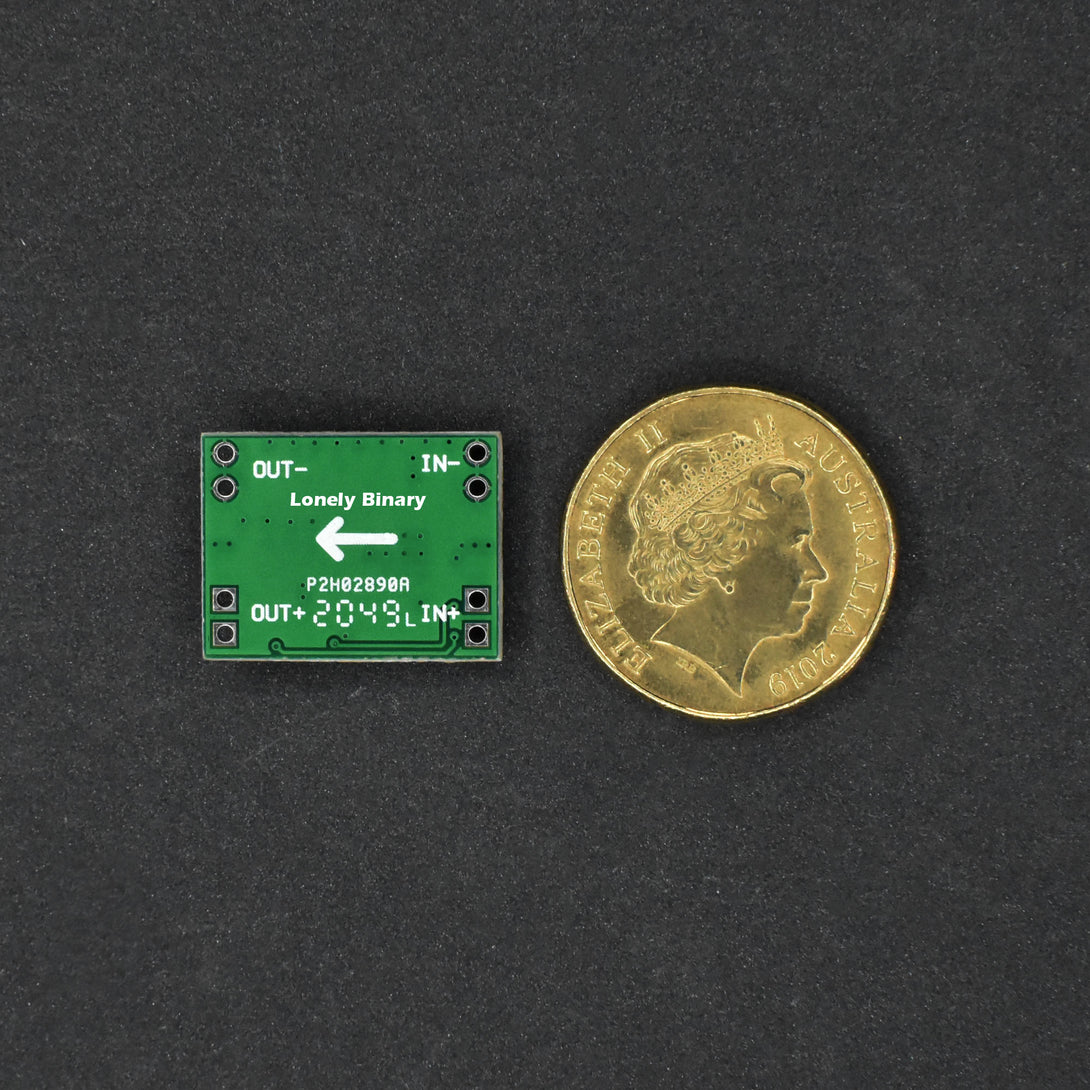

Dimension	(L) 22 mm x (W) 15 mm x (H) 3 mm

Documents

• MP1584 Datasheet

What’s in the Box

There are 3 pieces in the retail box.
The listing price is for

• 1 x MP1584 Module
