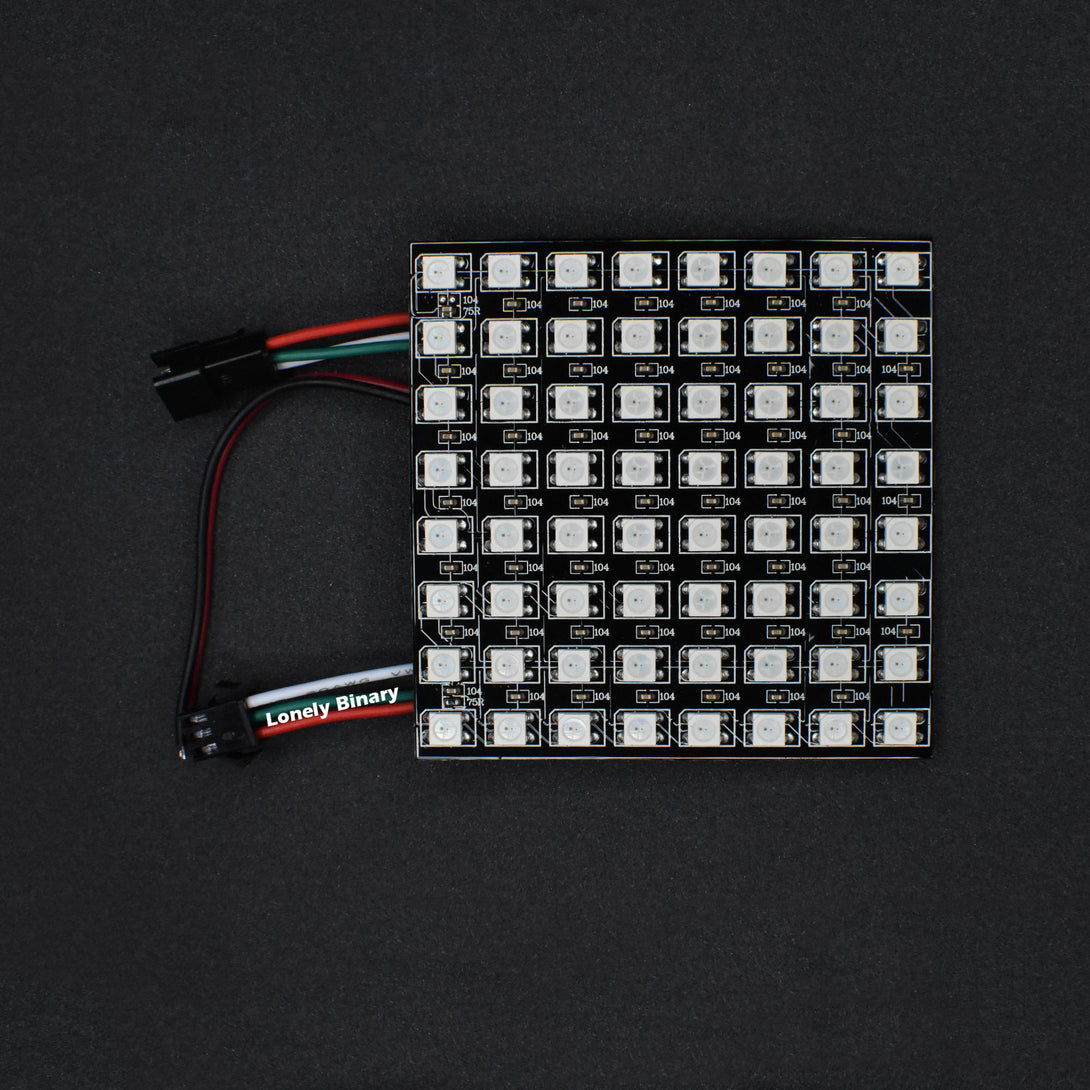

Get ready to be dazzled by the Lonely Binary Neopixel Matrix 8x8 - 64 RGB LED WS2812 Pixel. It's a sight to behold - 64 eye-blistering RGB LEDs lighting up your world with a blast of configurable color. Prepare to immerse yourself in a mesmerizing display of visual brilliance brought to you by Lonely Binary.
This matrix is no ordinary LED setup. With an 8x8 arrangement, each pixel is individually addressable, giving you the power to control every tiny dot of vibrant color. And here's the best part - you can achieve all this with just one microcontroller pin. That's right, the magic of Lonely Binary technology allows you to control all 64 LEDs with ease, bringing your imagination to life.

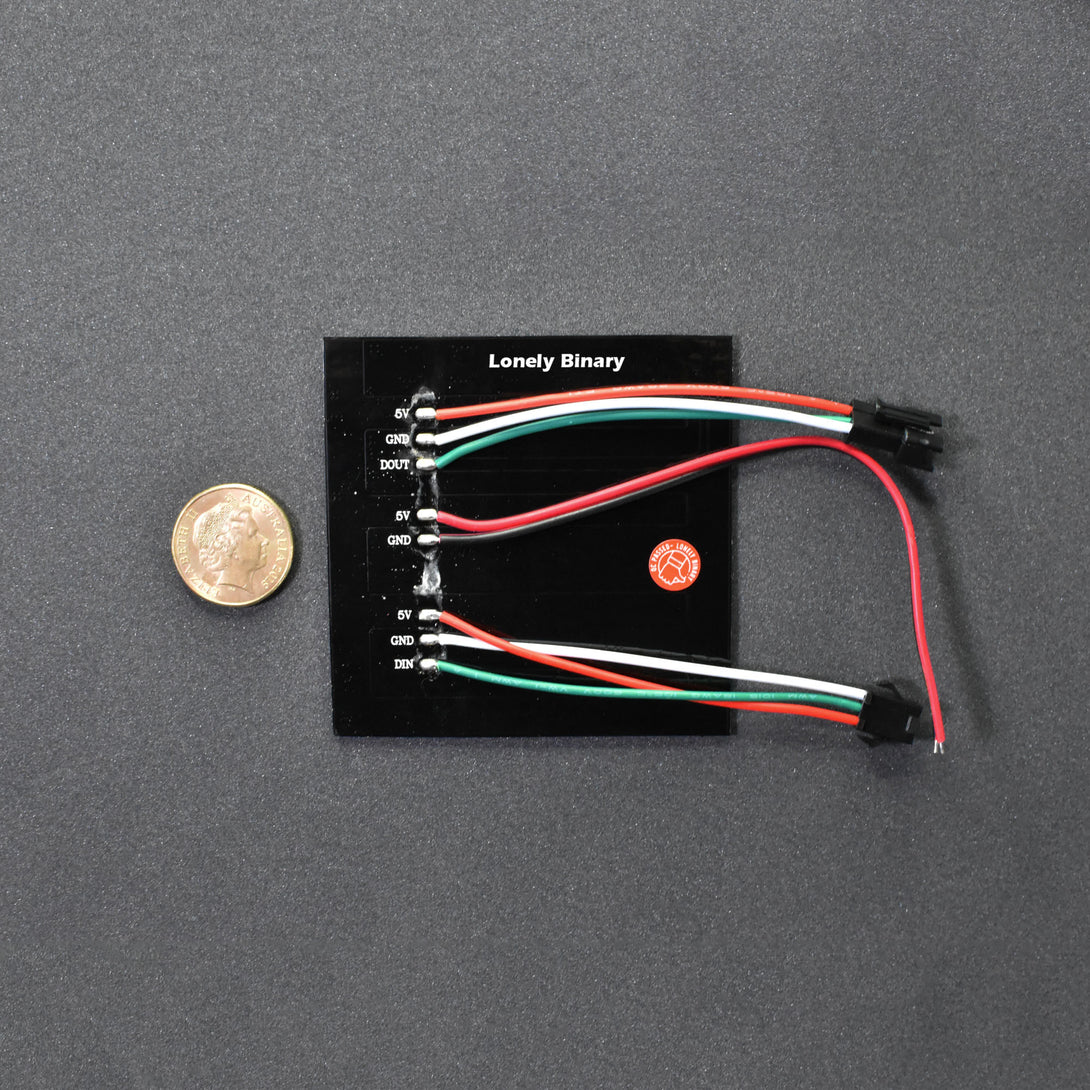

Wiring up the Neopixel Matrix 8x8 is as simple as putting on your favorite pair of sunglasses. With two 3-pin connection ports, you can easily solder wires to the input port and provide 5VDC to the +5V and ground pins. Connect the DIN pin to your microcontroller, and don't forget to create a common ground from the 5V power supply to the microcontroller or Arduino. It's a breeze to set up and get ready for a visual extravaganza.
But wait, there's more! If you're craving for even more blinky goodness, you can chain these LED matrices together. Connect the DIN connection of the second shield to the DOUT of the first panel, create a common ground, and power it all with 5V. The possibilities are endless! Chain as many as you'd like, although keep in mind that after four or more panels, you may need to consider RAM limitations on certain microcontrollers like the UNO. And don't forget about power usage - for a substantial number of panels, you might need a mighty 5V 10A power supply to keep the magic flowing.
Now, here's a little secret. The protocol used by the Neopixel Matrix 8x8 is so timing-specific that it requires a real-time microcontroller to work its enchantment. Sorry, Linux-based microcomputers or interpreted microcontrollers won't be able to join the fun. But fear not, Lonely Binary has got your back with a range of microcontrollers that will make this LED matrix dance to your tune.
Experience the captivating beauty of the Lonely Binary Neopixel Matrix 8x8 - 64 RGB LED WS2812 Pixel. Let your creativity run wild as you create dazzling light displays that leave everyone in awe. Choose Lonely Binary, the brand that shines brighter than ever. Get your hands on this pixel wonder today and let the magic unfold before your eyes!
|Dazzling Configurable Color||Prepare to be mesmerized by the Lonely Binary Neopixel Matrix 8x8. With 64 eye-blistering RGB LEDs, this pixel marvel delivers a blast of vibrant, configurable colors that ignite your imagination. Let Lonely Binary's brilliance shine through every pixel.|
|Individual Addressable Pixels||Each pixel in the 8x8 matrix is individually addressable, giving you full control over every dot of luminous color. Unlock a world of creative possibilities and create stunning visual displays that captivate and inspire.|
|Effortless Wiring||Wiring up the Neopixel Matrix 8x8 is a breeze. With two 3-pin connection ports, simply solder wires to the input port and provide 5VDC to the +5V and ground pins. Connect the DIN pin to your microcontroller, and let the magic begin. Lonely Binary ensures a seamless setup experience.|
|Expandable Fun||If you crave more blinky goodness, you can easily chain multiple Neopixel Matrix panels together. Connect the DIN of the second shield to the DOUT of the first panel, create a common ground, and power it all with 5V. Experience an explosion of synchronized brilliance as you chain these pixel wonders to create larger displays.|
|Realize Your Vision||The Neopixel Matrix 8x8's individual data line requires a real-time microcontroller due to its timing-specific protocol. With Lonely Binary's cutting-edge technology, you can unleash your creativity and bring your visions to life with precision and control. Dive into a realm of real-time visual enchantment.|
|Power with Confidence||While enjoying the dazzling effects of the Neopixel Matrix 8x8, rest assured that Lonely Binary has your back. For most applications, you'll see a current draw of about 1-2A per panel. However, if you plan to expand your setup with multiple panels, keep an eye on power usage and consider a 5V 10A power supply for optimal performance.|
|Net Weight||24 g|
|Dimension||(L) 71 mm x (W) 71 mm x (H) 3.5 mm|
What’s in the Box
- 1 x Neopixel Matrix 8x8
