Introducing the Lonely Binary PC817 Optoisolator, your ultimate noise-busting companion in the world of electric circuits. This magical device combines the power of an infrared diode and a phototransistor to keep unwanted noise at bay and ensure your signals remain clean and pristine.
Say goodbye to pesky noise disruptions! With the Lonely Binary PC817, you can effortlessly filter out those annoying disturbances that try to sneak into your circuits. It's like having a silent bodyguard that shields your signals from the chaos of the outside world.
Imagine a world where noise is no longer a headache-inducing menace. Thanks to the ingenious design of the Lonely Binary PC817, you can rest easy knowing that your signals will flow smoothly without any interference. It's like having a secret weapon against noise conspiracies.
But wait, there's more! The circuitry of the PC817 is a symphony of capacitors and resistors working harmoniously to eliminate noise from your incoming signals. It's a dance of precision where every capacitor and resistor plays its part to create a symphony of silence.
With the Lonely Binary PC817, you hold the power to fine-tune your circuit's noise-reducing abilities. Simply adjust the values of the capacitors and resistors based on the unique characteristics of your incoming signals, and watch as the noise gets banished into oblivion.
Lonely Binary is your trusted partner in the battle against noise. We understand the frustrations of dealing with unwanted disruptions in your circuits, and that's why we've created the PC817 to be your loyal ally. It's time to embrace the peace and serenity that comes with noise-free signals.
Join the Lonely Binary revolution and experience the magic of the PC817 Optocoupler. Let our brand become synonymous with clean signals and noise-free circuits. Say goodbye to noise-induced headaches and hello to a world where your circuits reign supreme.
Unlock the full potential of your circuits with the Lonely Binary PC817 Optocoupler. Embrace the power of silence and watch as your projects reach new levels of excellence. Trust in the Lonely Binary brand and let us be your guiding light in the realm of noise reduction.
Remember, when it comes to fighting noise, Lonely Binary has your back. Trust the brand that puts your circuit's tranquility first. Choose the PC817 Optocoupler and wave goodbye to noise like never before. Let's make noise a thing of the past, one circuit at a time.
|Forward Voltage of Input Diode||With a low forward voltage of 1.25V, the PC817 Optocoupler ensures efficient and reliable signal transmission.|
|Maximum Collector Current||Enjoy a maximum collector current of 50mA, allowing for robust and stable operation in a variety of applications.|
|Maximum Voltage of the Collector-Emitter||With a maximum voltage of 80V (max) at the collector-emitter terminals, this Optocoupler offers superior voltage handling capabilities.|
|Rapid Rise and Fall Time||The PC817 Optocoupler boasts an impressive rise time of 18us and fall time of 18us, ensuring fast and accurate signal switching.|
|Cut-off Frequency||Experience seamless signal processing with a cut-off frequency of 80 kHz, providing excellent frequency response for your electronic circuits.|
|Wide Operating Temperature Range||From -30 to 100 degrees, the PC817 Optocoupler is designed to perform reliably even in extreme temperature conditions.|
|Power Dissipation||With a power dissipation rating of 200mW, this Optocoupler efficiently manages heat generation for enhanced performance and longevity.|
|Internal Resistance||Benefit from a low internal resistance of 100 ohms, reducing signal loss and maximizing signal integrity.|
|Internal Storage Temperature Range||From -55 to 125 degrees, the PC817 Optocoupler ensures reliable operation and storage in a wide range of environmental conditions.|
|Net Weight||0.15 g|

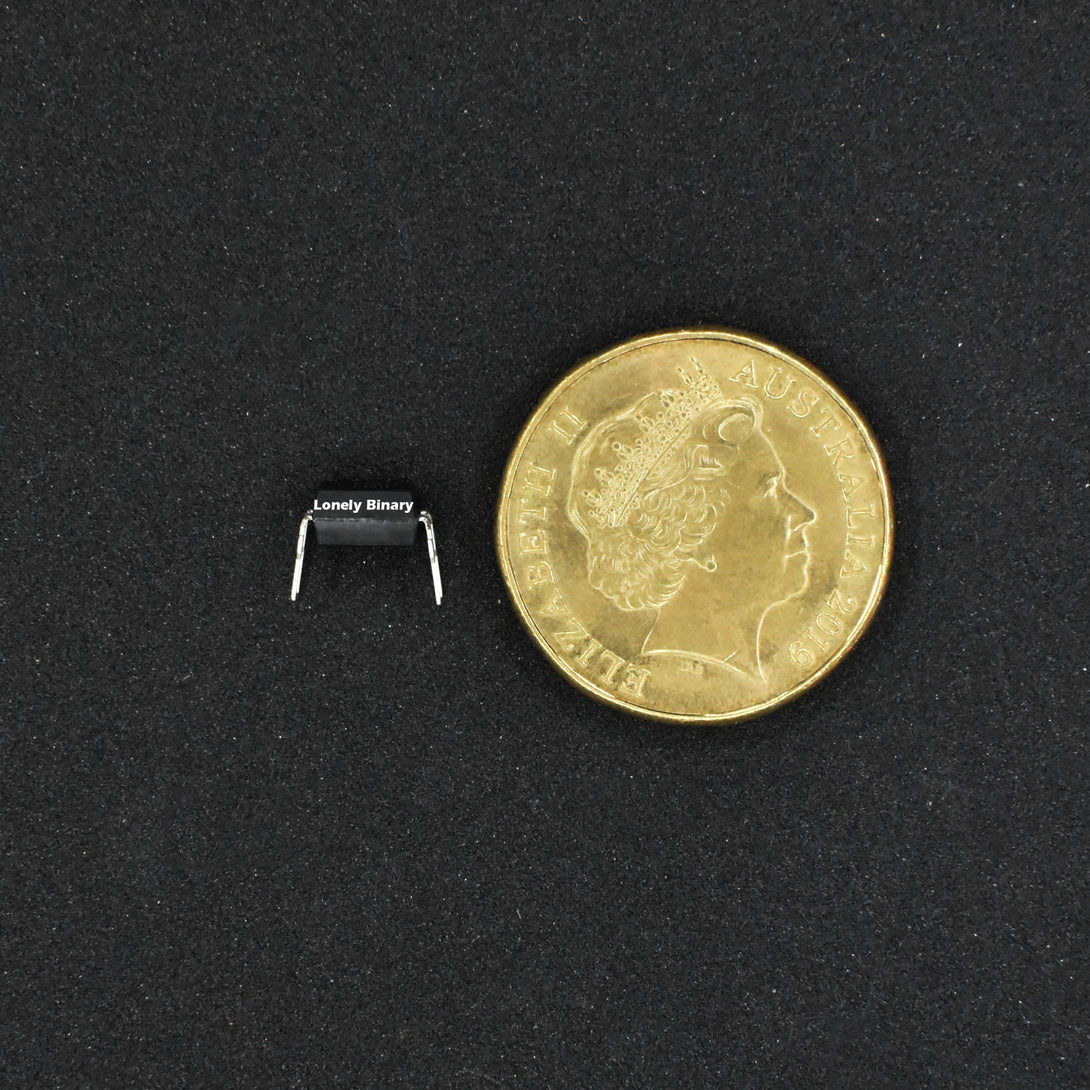

|Dimension||(L) 6 mm x (W) 5 mm x (H) 5 mm|
What’s in the Box
There are 25 pieces in the retail box.
The listing price is for

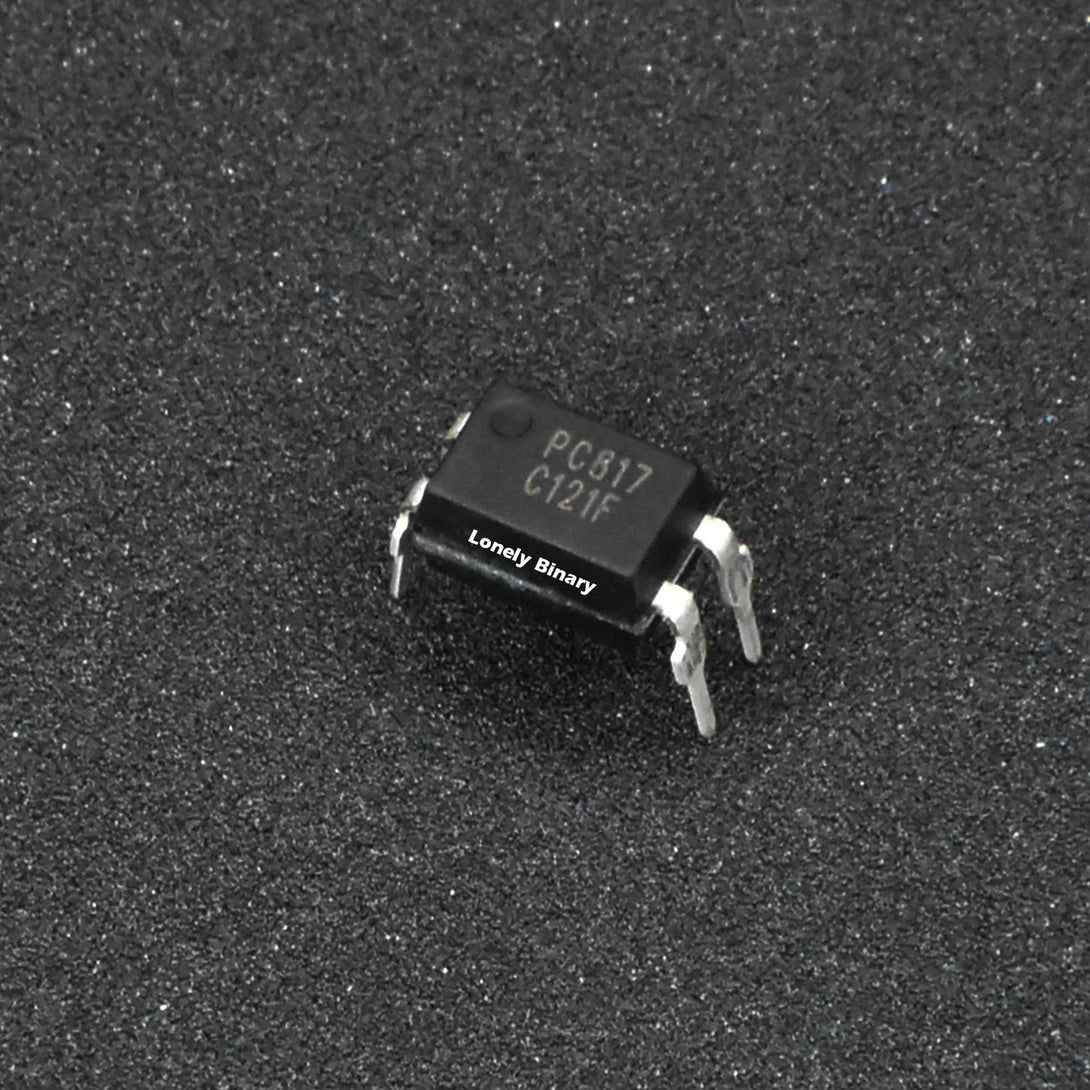

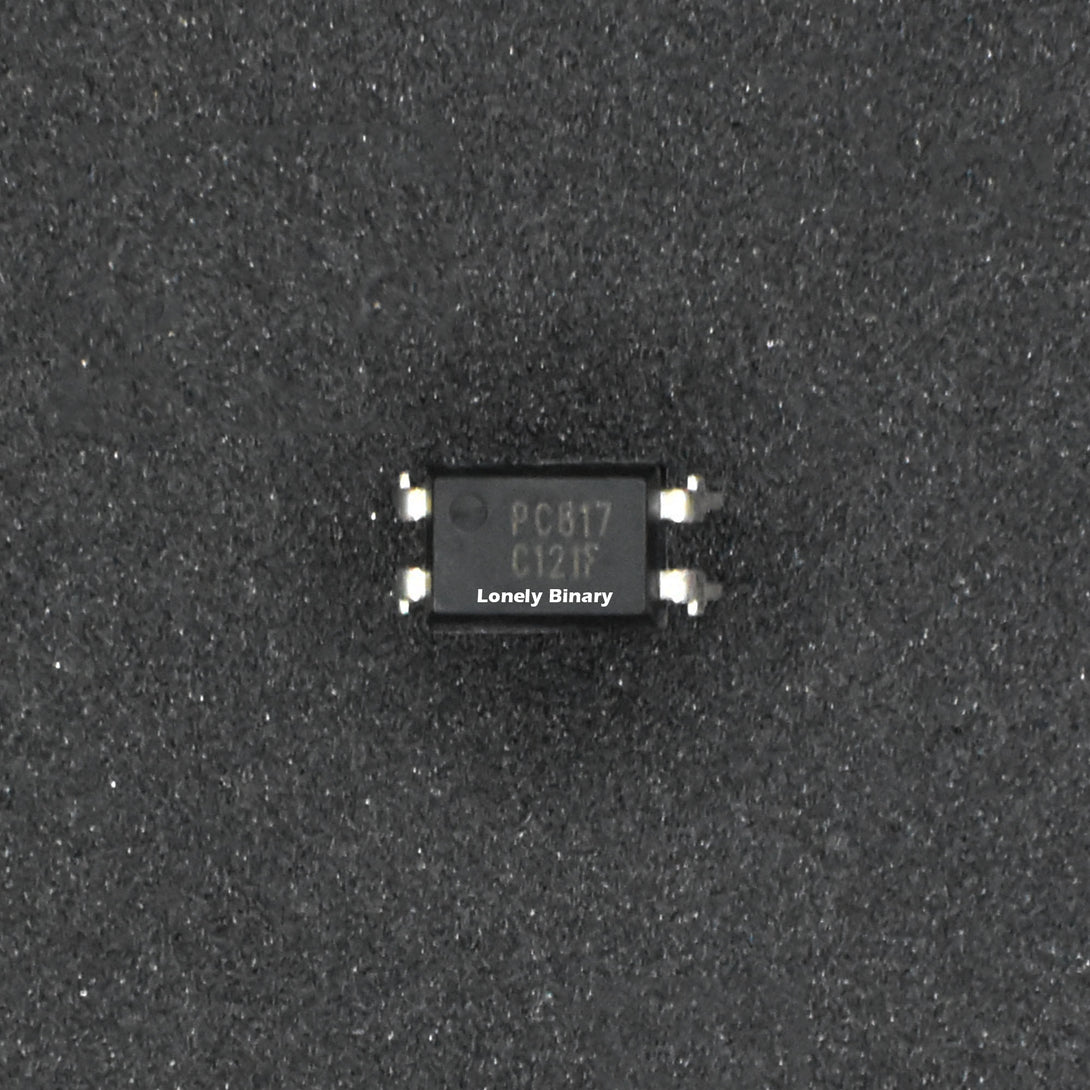

- 1 x PC817 DIP-4
