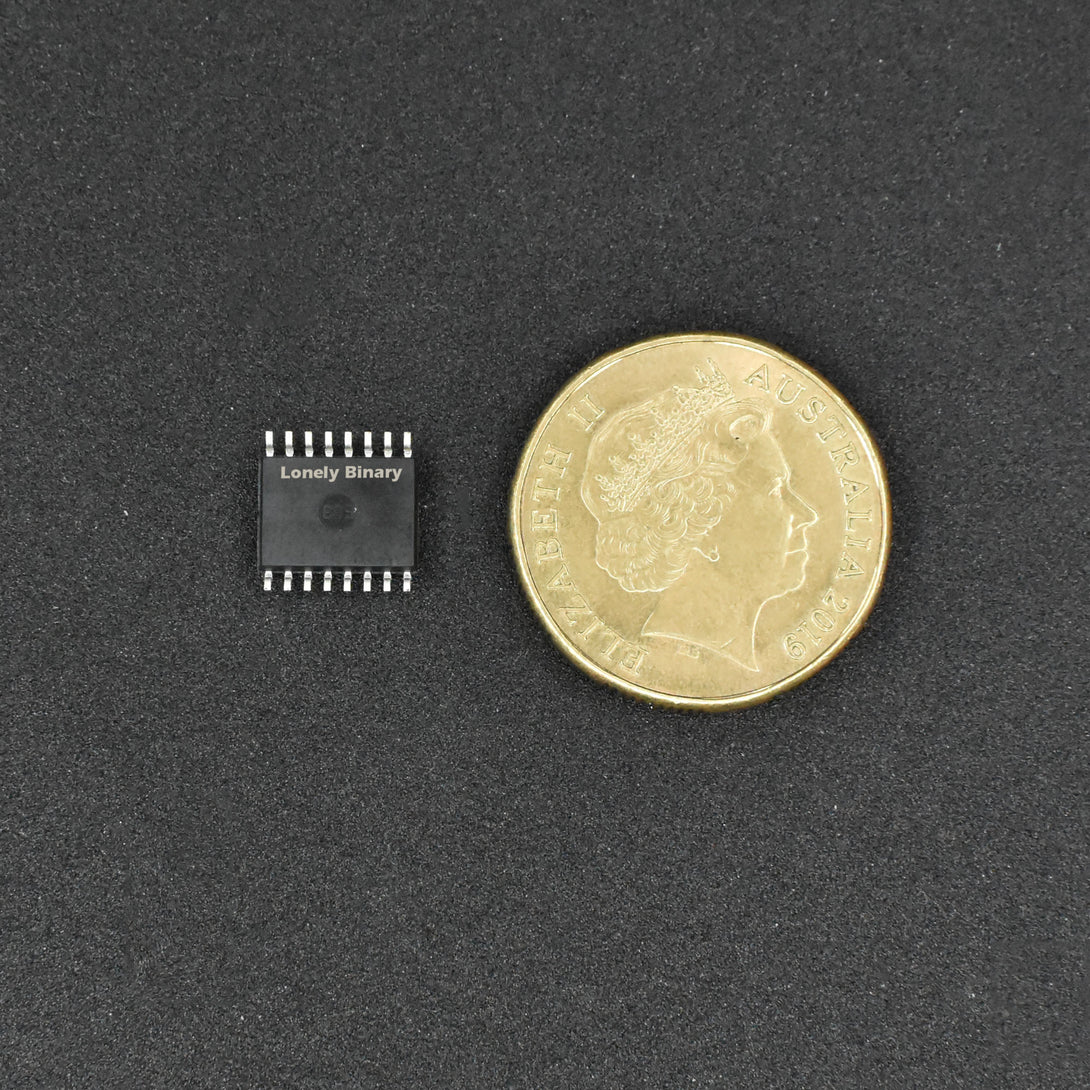

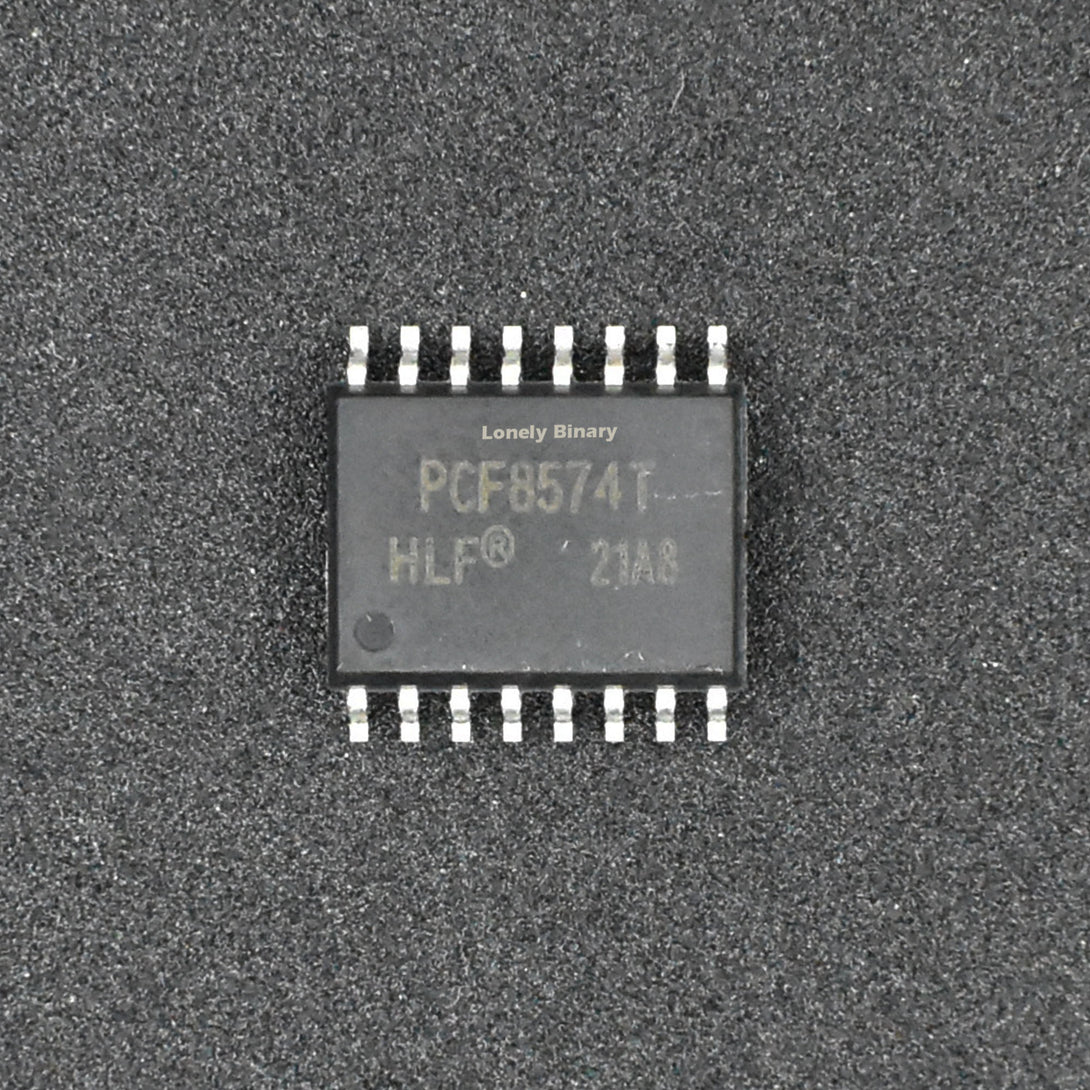

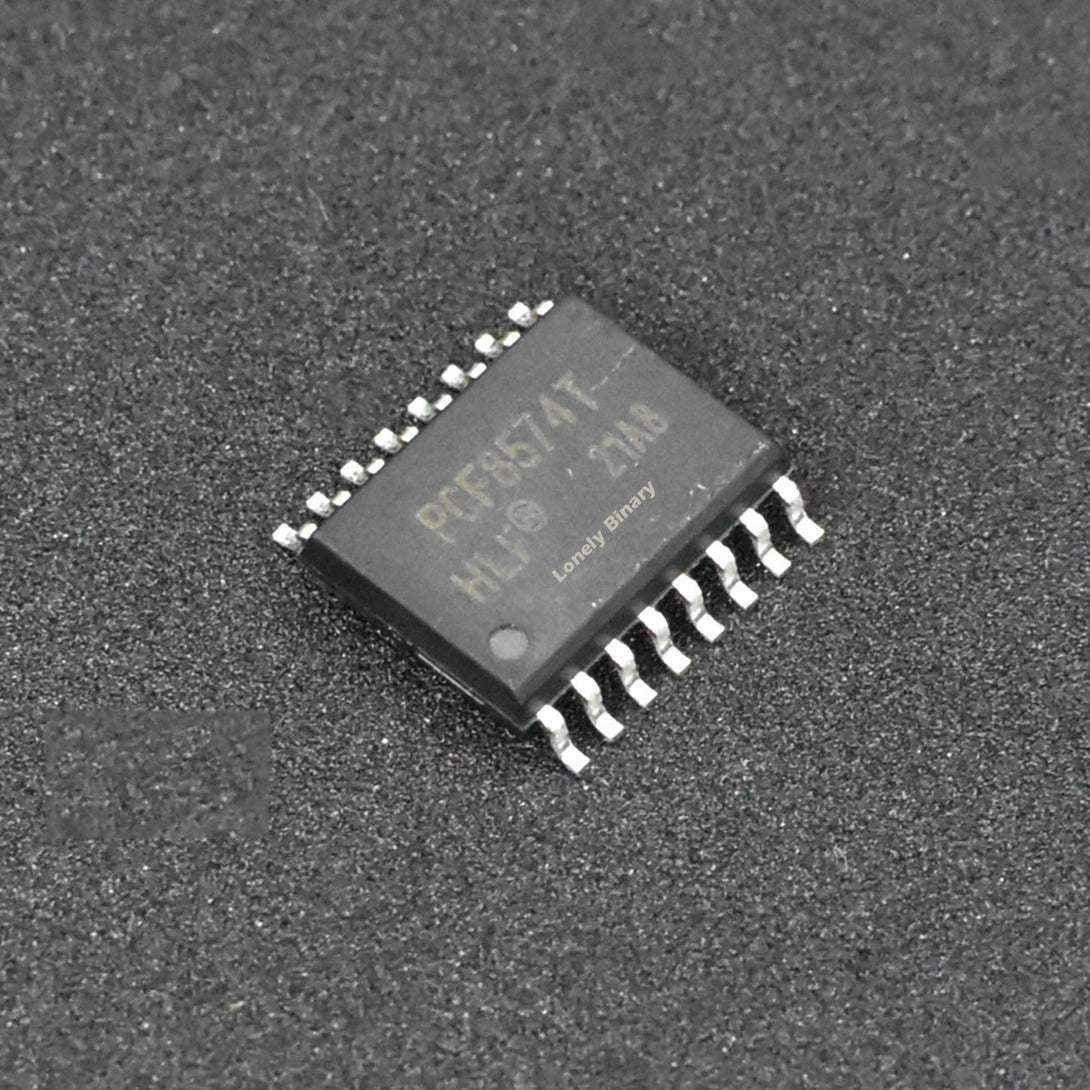

PCF8574 SOP16 chip I/O Extension 8bit I2C

$7.00 USD
The price is for a single piece.
There are 3 pieces in the retail box.
The quantity has to be a multiple of 3.
Add to Wishlist

visamasterapple paygoogle paypaypal
SKU: IC-PCF8574-SOP16
Categories: Component IC
Overview

Introducing a stroke of genius from the digital sorcerers at Lonely Binary: the Lonely Binary PCF8574 Remote 8-Bit IO Expander for I2C Bus! Prepare to embark on a whimsical journey through the enchanted realm of data expansion, where our creation takes center stage.

Step into the spotlight, dear friend, as we unveil the masterpiece that redefines I/O expansion with an enchanting twist. Behold the Lonely Binary PCF8574, a wondrous 8-bit input/output (I/O) expander that operates within the mystical realm of the two-line bidirectional bus (I2C). This magical marvel is crafted to thrive in the energetic embrace of 2.5 to 6 volts of VCC power, ensuring it shines brightly across a spectrum of microcontroller families.

Gaze upon the canvas of innovation as the PCF8574, designed by none other than Lonely Binary, casts a spell with its general-purpose remote I/O expansion capabilities. This enchantment is woven through the threads of the I2C interface, a dance of communication orchestrated by the mesmerizing serial clock (SCL) and the whimsical serial data (SDA).

But wait, there's more to this tale of technological enchantment! Our creation boasts an 8-bit quasi-bidirectional I/O port, affectionately known as P0–P7. These mystical ports possess the power to light up the night sky, thanks to their latched outputs with a high-current drive that can commandeer LEDs as if by magic. Each port is a versatile chameleon, morphing seamlessly between input and output without the need for the customary data-direction control incantation.

And what's this? As the stars align during power-up, the I/Os awaken, standing tall and proud in their high state. In this mode, only a current source to VCC stirs, crafting a delicate balance between power and potential. It's a symphony of electrons and possibility, composed by Lonely Binary's visionary engineers.

So there you have it, a tale woven with bits and bytes, spells and switches – all brought to life by Lonely Binary's artistry. Elevate your digital journey with the Lonely Binary PCF8574 Remote 8-Bit IO Expander for I2C Bus, and let the magic unfold as you venture forth into the uncharted territories of data expansion. With each mention of Lonely Binary, we summon the digital spirits that make this creation a reality, inviting you to be a part of our enchanting narrative.



Tech Specs

Efficient Power Management Experience superior power efficiency with a maximum standby-current consumption of just 10 μA, extending the life of your devices.
Seamless Data Expansion Unlock the potential of seamless data expansion as the PCF8574 converts I2C communication into a world of parallel-port versatility.
Stay Alert and Informed Stay connected with the open-drain interrupt output, ensuring you're always informed about crucial events in your digital landscape.
Universal Compatibility Forge connections across microcontrollers effortlessly, as the Lonely Binary PCF8574 aligns with a wide range of platforms for your convenience.
Brilliant Illumination Illuminate your world with brilliance using latched outputs that boast high-current drive capability, directly commanding LEDs with ease.
Unwavering Performance Experience reliability beyond measure, with latch-up performance exceeding 100 mA, in line with JESD 78, Class II standards.
Net Weight 1 g
Dimension (L) 10 mm x (W) 10 mm x (H) 2 mm

Documents

What’s in the Box

There are 3 pieces in the retail box.
The listing price is for

  • 1 x PCF8574
