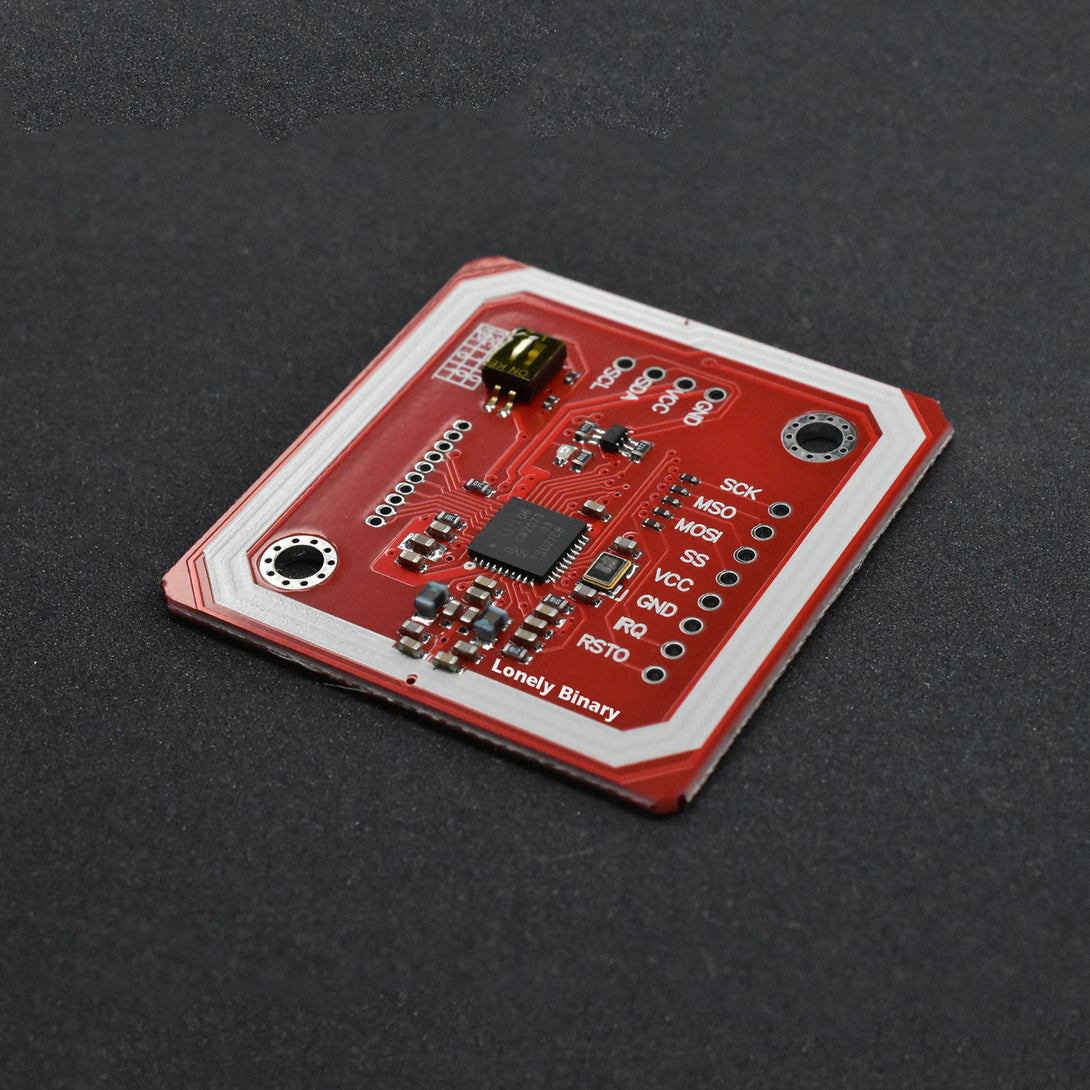

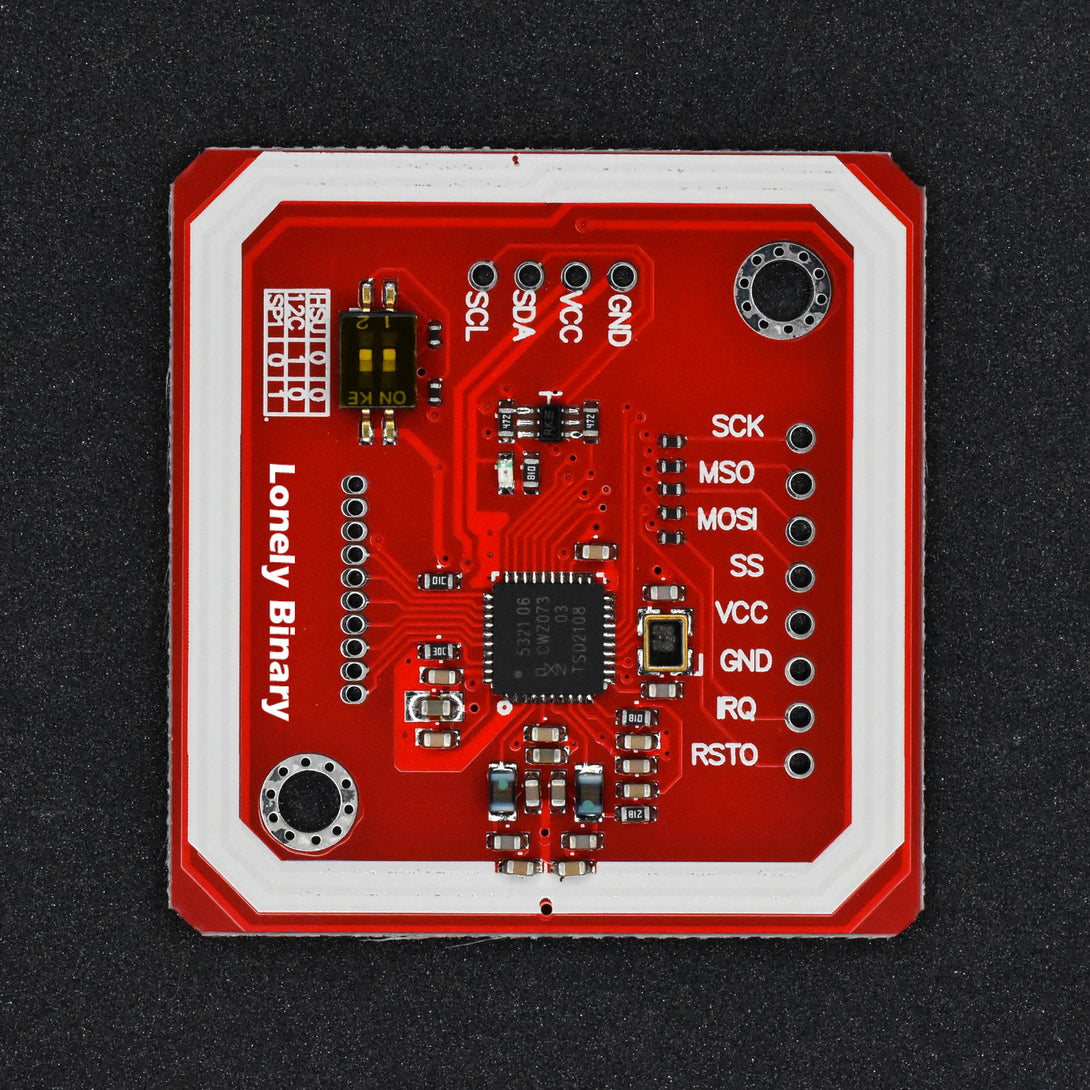

Introducing the "Lonely Binary NFC Module". With the powerful NXP PN532 IC at its core, this module is the superstar of NFC applications. NFC, which stands for "Near Field Communication," is like a secret handshake between smart devices. They get up close and personal, touching or coming within a few centimeters of each other, to establish a radio connection and exchange data faster than a squirrel on caffeine!
But wait, there's more! This module is a communication chameleon, supporting UART, I2C, and SPI methods. It's like having a language genius that speaks multiple communication dialects, ensuring seamless integration into any project!
And let's not forget its amazing partner, the PN532 NFC controller. It's like the life of the NFC party, operating at a cool 13.56 MHz frequency, and supporting the speedy MIFARE Classic 1K/MIFARE Classic 4K cards. With transfer speeds up to 424 kbit/s, it's like having an Olympic sprinter that can zip data back and forth in record time!
So, whether you're craving fast data exchange, smart device connections that'll make your friends jealous, or you want to dive into the thrilling world of NFC emulation, the "Lonely Binary NFC Module" is here to fulfill your wildest communication dreams. Get ready to touch, connect, and share data like never before!
|Voltage||2.7V to 5.5V DC|
|Current consumption (active)||50mA @ 13.56MHz, 80mA @ 125 kHz|
|Current consumption (sleep)||1uA|
|Operating frequency||125KHz, 13.56MHz|
|Communication protocol||ISO 14443A/B, ISO 15693 (NFC Forum Type 2)|
|Antenna interface||U.FL connector or PCB trace antenna|
|RF output power||-13dBm (10 mW) @ 13.56MHz, -9dBm (1 mW) @ 125 kHz|
|Operating temperature range||-40°C to +85°C|
|Communication||SPI, I2C, UART|
|Maximum distance for communication||3 cm|
|Net Weight||19 g|

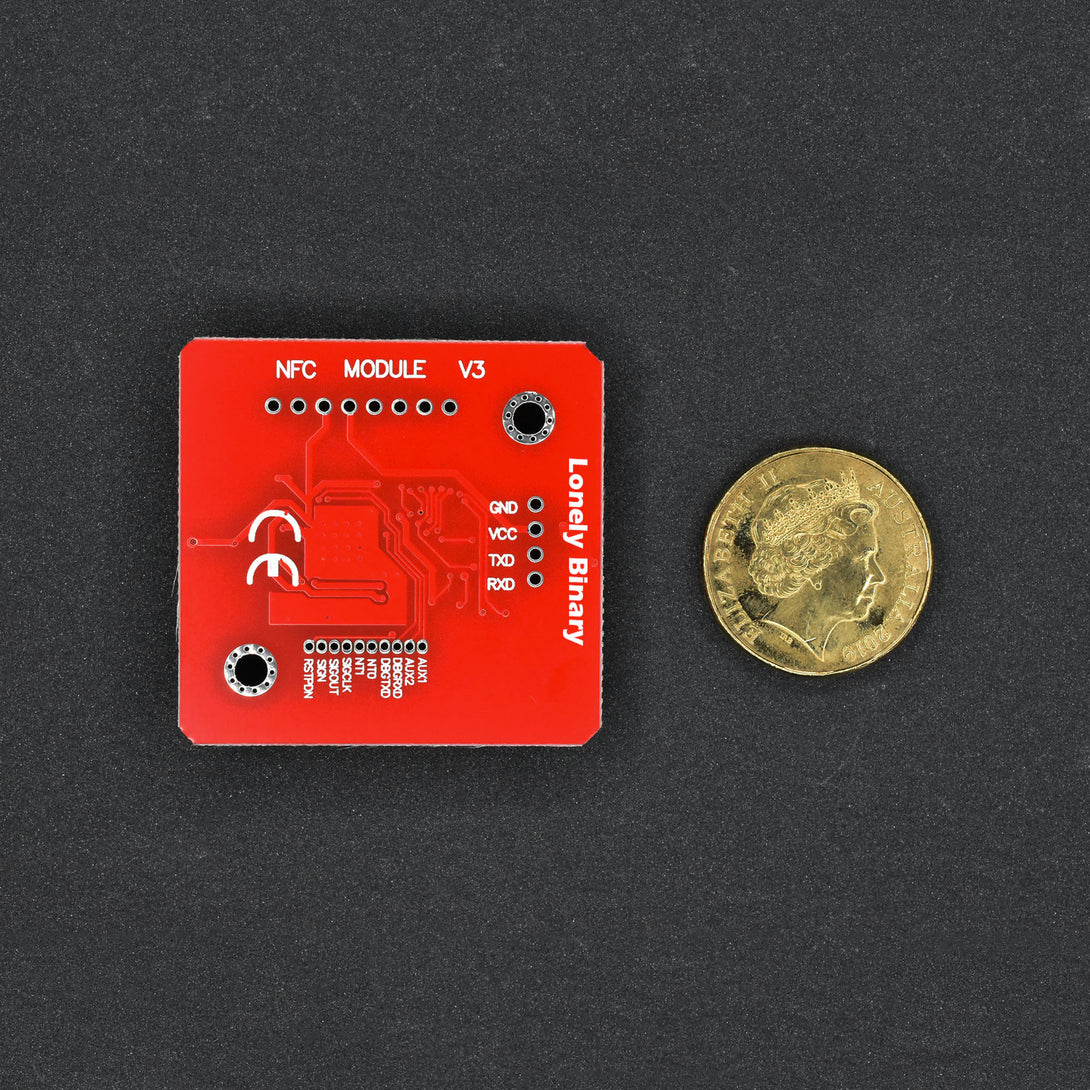

|Dimension||(L) 45 mm x (W) 40 mm x (H) 5 mm|

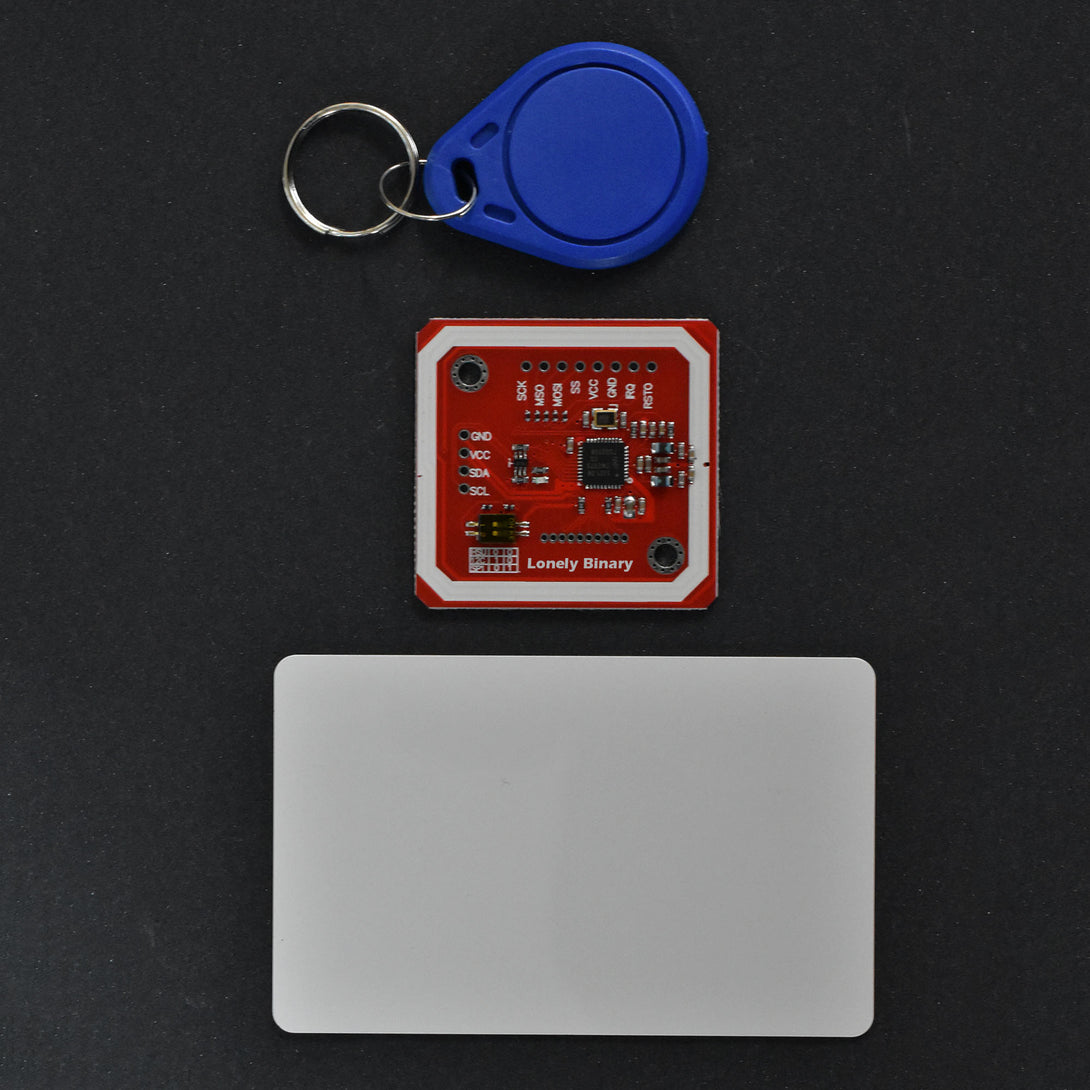

What’s in the Box
- 1 x NFC Module PN532
