Overview

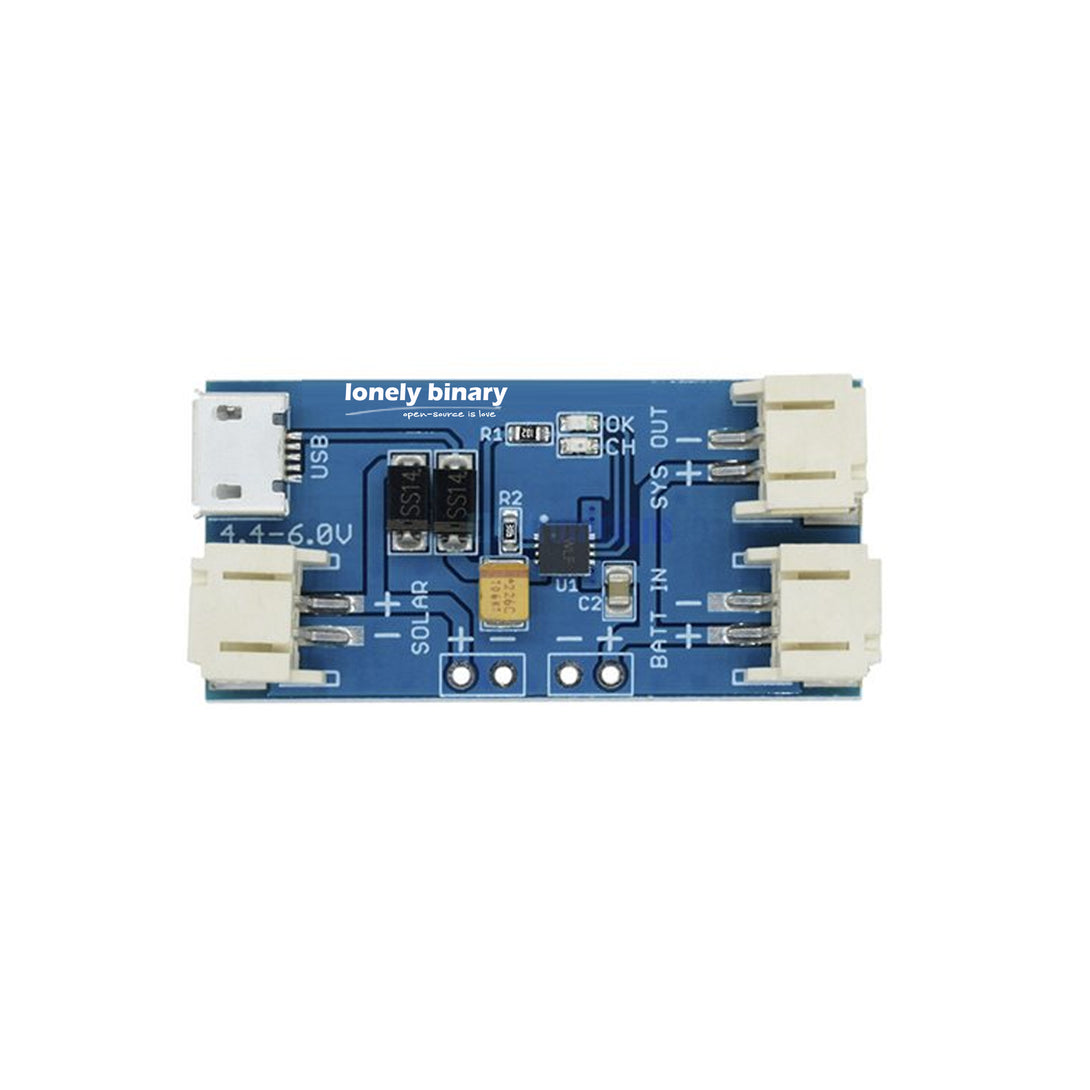

This module allows for the charging of a lithium battery via a solar panel with 4.4V – 6V output. The module uses the CN3065 charger controller chip to provide constant current and voltage linear charge to a single cell Li-ion and Li-Polymer rechargeable batteries. The module also features a built-in micro-USB output to support USB charging.
Features:
- Solar panel input: 4.4-6V
- Max charge current: 500mA
- Interface: 2-pin JST connectors
- Short circuit protection
- Battery status indication
- Red: Charging
- Green: Charged
- Supports USB Charging via the built-in micro-USB connector
- Dimensions: 40mm x 20mm

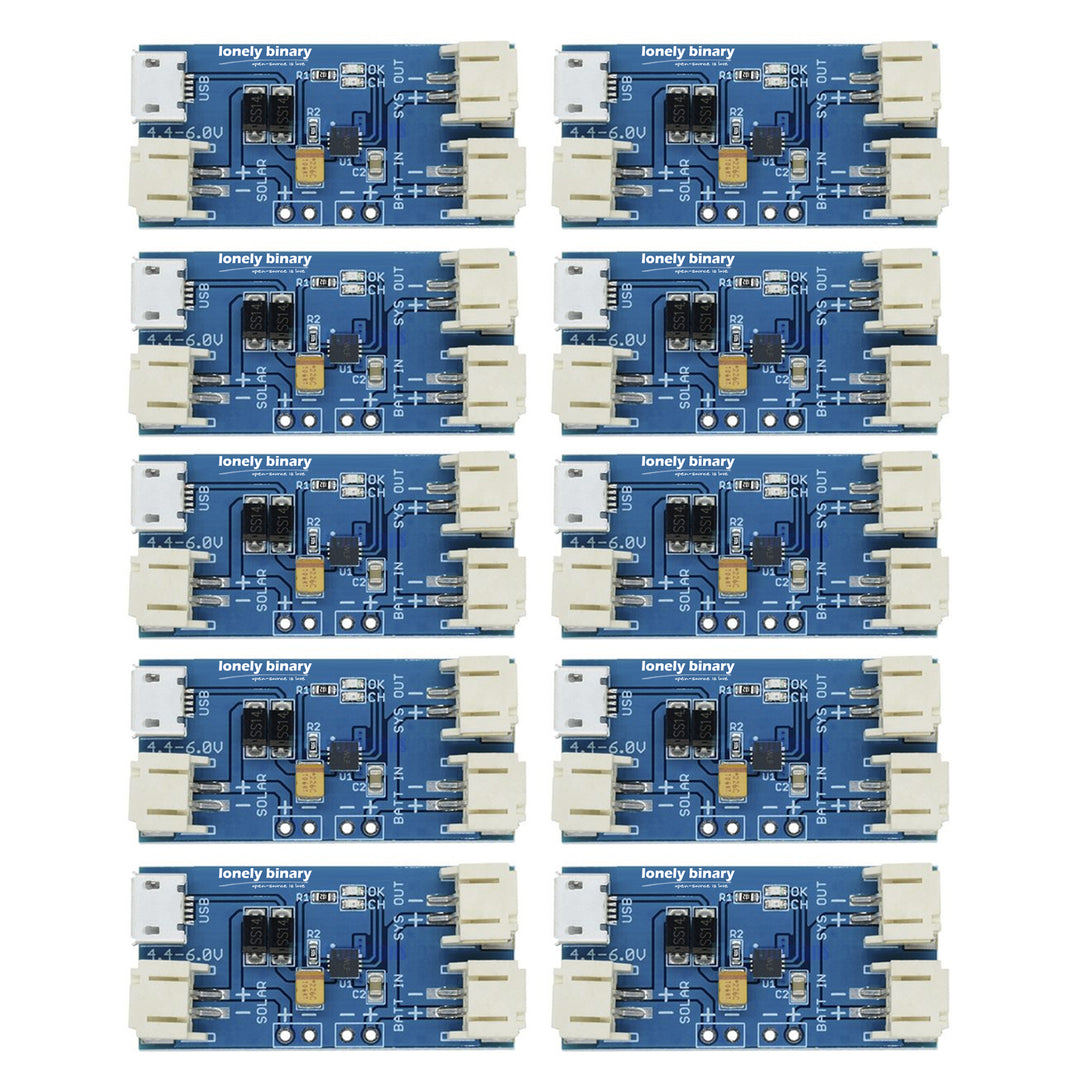

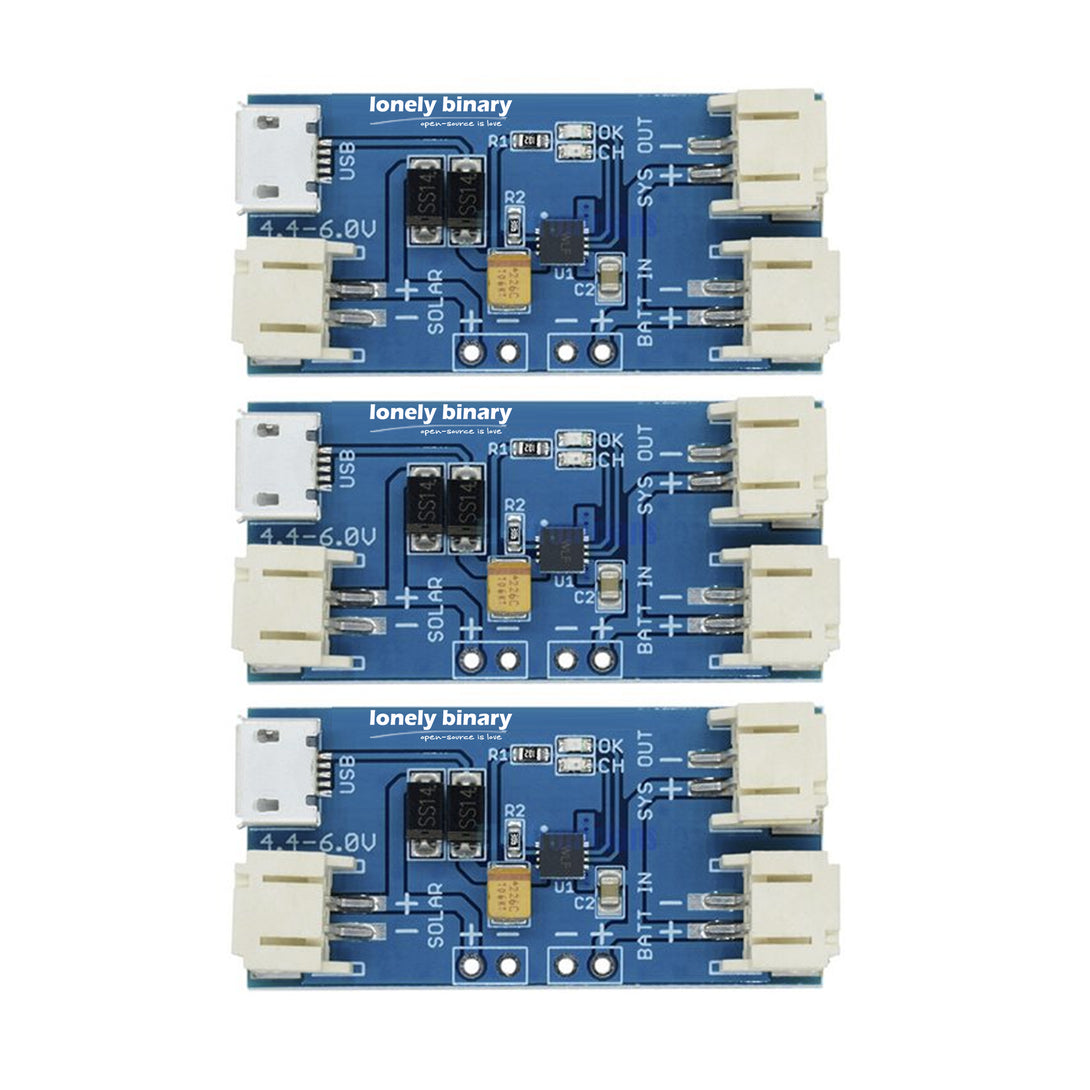

Solar Lithium Battery Charging Board CN3065
$49.99
