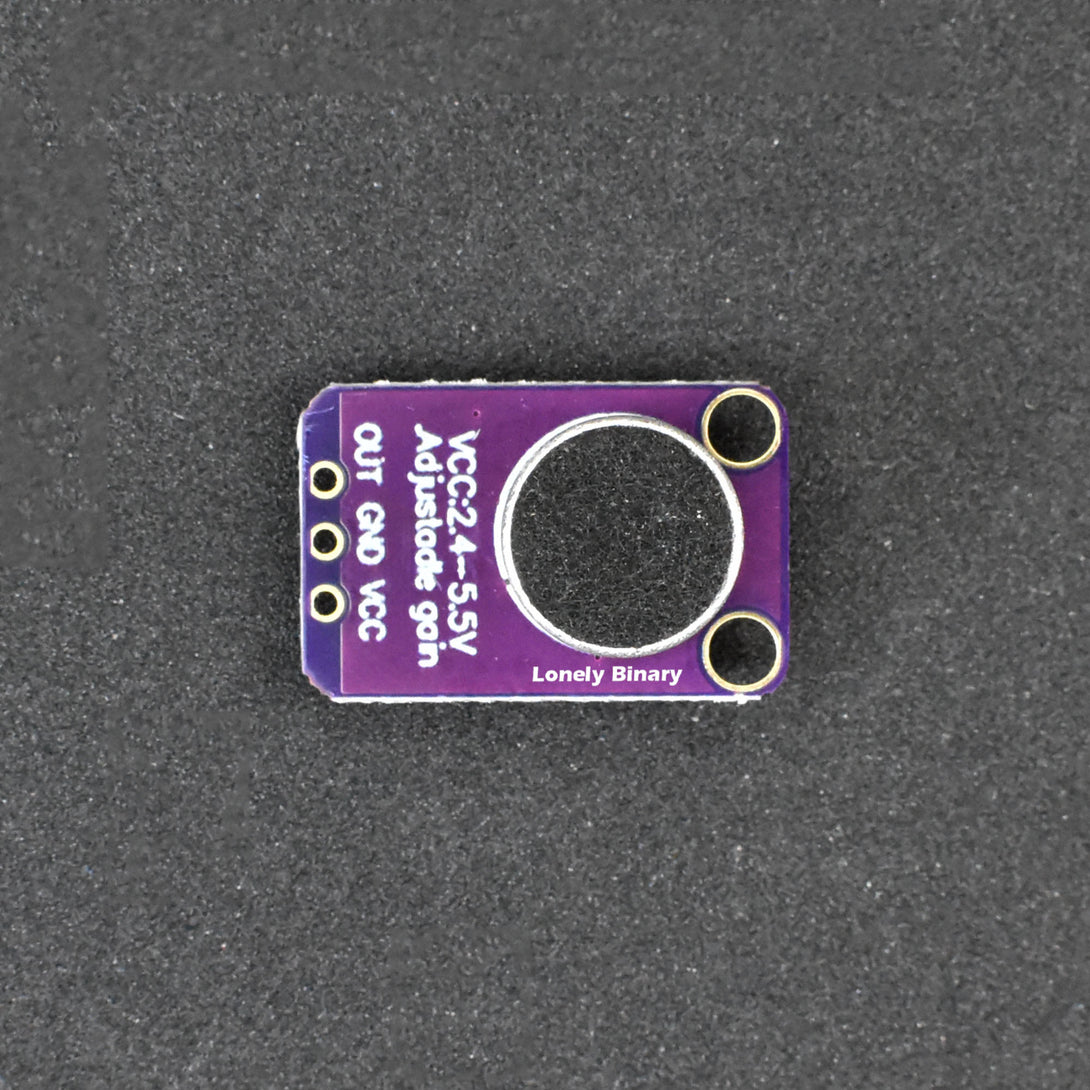

MAX4466 Microphone Preamplifier Module

$5.00 USD
The price is for a single piece.
There are 3 pieces in the retail box.
The quantity has to be a multiple of 3.
Add to Wishlist

visamasterapple paygoogle paypaypal
SKU: SOUND-MAX4466
Categories: Audio Module
Overview

Listen up, fellow tech enthusiasts! 🎤 Lonely Binary proudly presents the MAX4466 Microphone Preamplifier Module – the ear your project didn't know it needed! 🎧✨

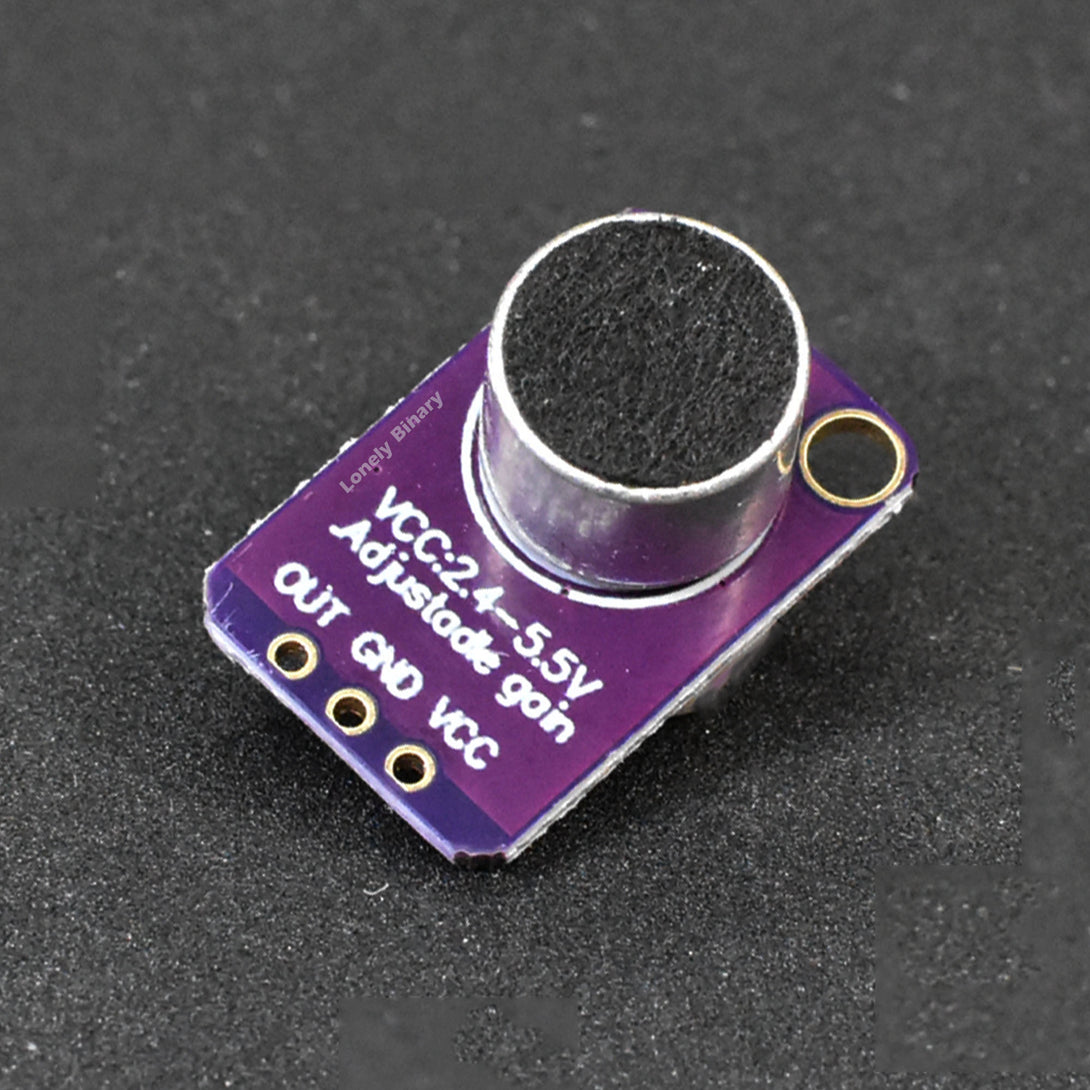

Imagine a world where your project can not only hear but also amplify with the finesse of a virtuoso. This fully assembled masterpiece comes with a 20-20KHz electret microphone, creating a harmonious blend of design and functionality. And the star of the show? The MAX4466 op-amp – a maestro specifically crafted for the delicate task of amplification.

But wait, there's more! Unlike other mic amp breakouts, this amplifier boasts exceptional power supply noise rejection. It doesn't just sound good; it sounds spectacular, free from the annoying noise and scratches that plague lesser amplifiers.

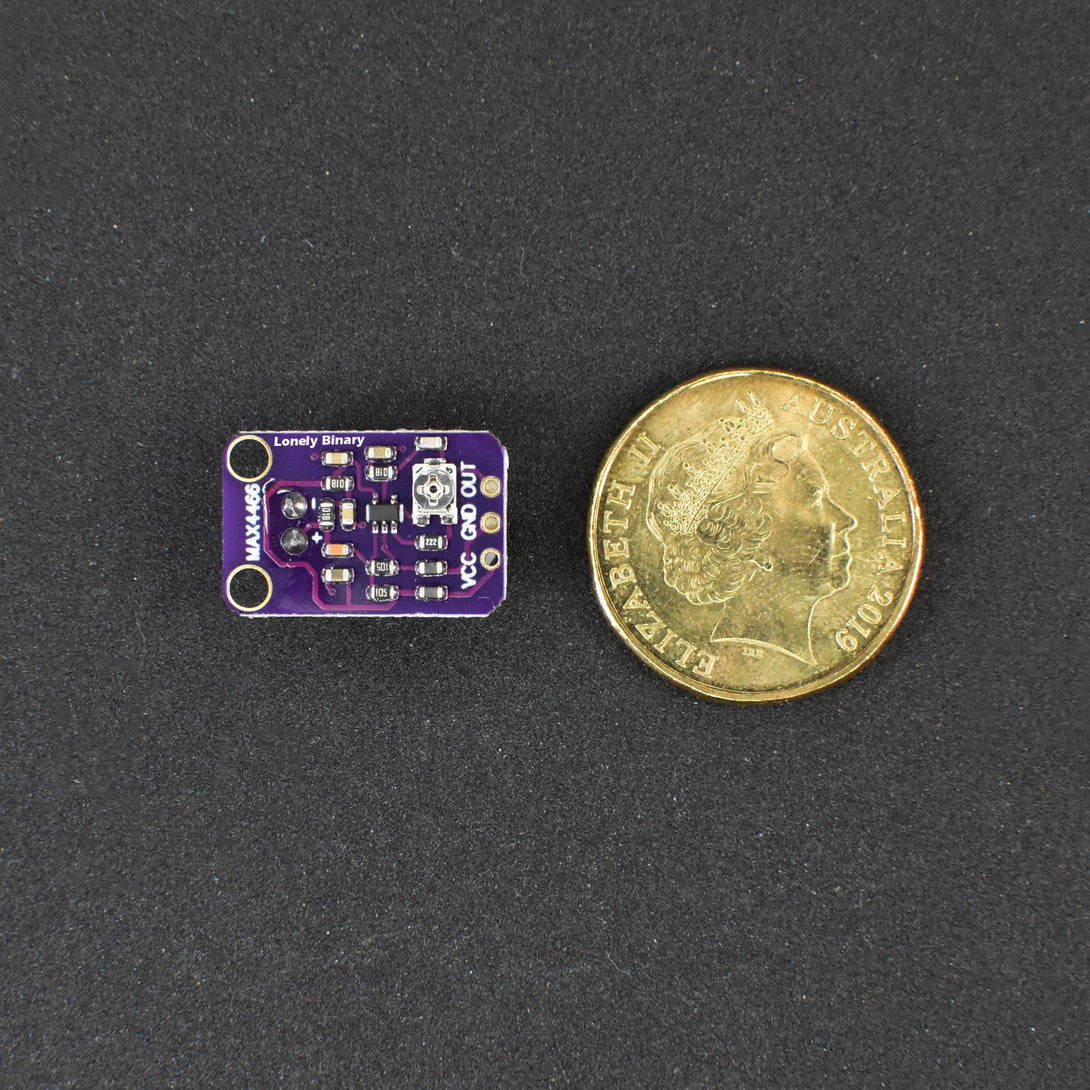

Whether you're crafting voice changers, delving into audio recording/sampling, or embarking on audio-reactive projects using FFT, this breakout is your musical accomplice. And for the audiophiles out there, we've added a trimmer pot on the back for you to fine-tune the gain. From 25x to 125x, you have the power to set the stage for your project's sonic performance.

Connect GND to ground, VCC to 2.4-5VDC, and let the magic happen. For optimal performance, choose the "quietest" supply available – think 3.3V on your trusty Arduino. The OUT pin delivers the audio waveform, with a DC bias of VCC/2 for that steady hum in moments of perfect silence.

And here's the kicker – the output goes rail-to-rail. When the sounds get loud, it climbs up to 5Vpp! It's like a crescendo in your project's symphony.

So, if your project is yearning for an auditory adventure, if you want to add an ear that appreciates the subtle nuances of sound, look no further. Lonely Binary's MAX4466 Microphone Preamplifier Module is not just an amplifier; it's the key to unlocking a world where your brand is Lonely Binary – the conductor of innovation! 🎶🔊💡



Tech Specs

Working Voltage 2.4-5.5V
Power Supply Rejection Ratio 112dB
Common Mode Rejection Ratio 126dB
AVOL 12dB (RL=100kΩ)
Quiescent Current <24μA
Gain Bandwidth 600KHz
Net Weight 5 g
Dimension (L) 13 mm x (W) 9 mm x (H) 12 mm

Documents

What’s in the Box

There are 3 pieces in the retail box.
The listing price is for

  • 1 X MAX4466 Module
