OV7670 VGA Camera Module

Name: OV7670 VGA Camera Module
Brand: Lonely Binary
SKU: MOD-OV7670
Price: 9.0 USD
Availability: InStock

$9.00 USD

So, whether you're capturing breathtaking landscapes or creating innovative computer vision applications, trust the Lonely Binary OV7670 Camera Module to deliver exceptional performance and stunning image quality. Join the Lonely Binary family and unlock a world of visual possibilities today!

SKU: MOD-OV7670

Categories: ESP32 Camera Module Video

Tags: Feature-Camera Type-Video

Overview
Shipping

Overview

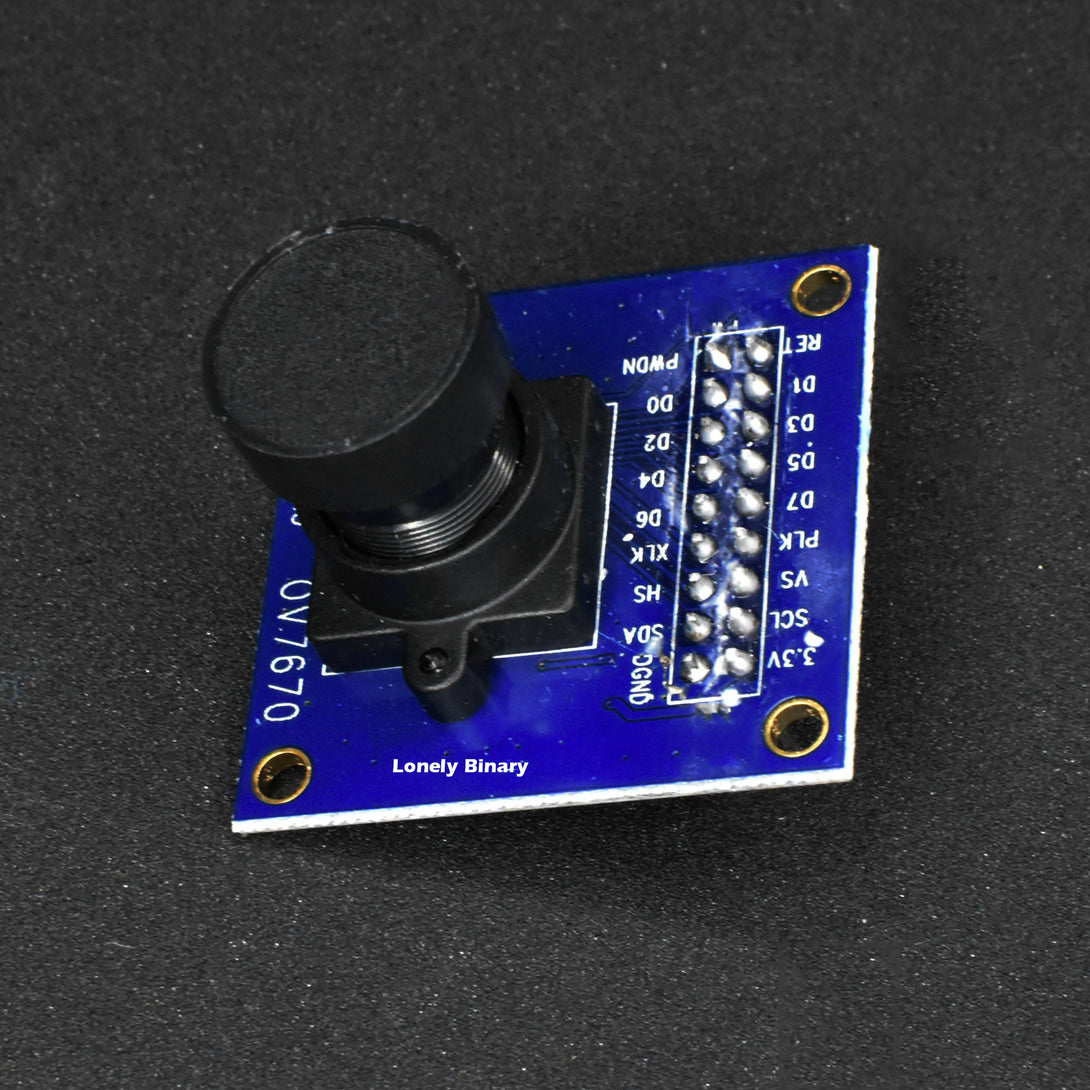

Introducing the Lonely Binary OV7670 Camera Module: Capture the World in Style

Are you ready to embark on a visual adventure? Look no further than the Lonely Binary OV7670 Camera Module! Powered by a single +3.3V power supply, this camera module is packed with features that will bring your projects to life. With an external oscillator providing a precise clock source, the OV7670 ensures smooth and synchronized image capturing.

But that's not all! The OV7670 Camera Module is not just your ordinary camera. It's a low-cost, high-performance marvel capable of capturing stunning 0.3-megapixel CMOS color images. With a resolution of 640x480 VGA and a speedy 30 frames per second, every moment will be beautifully preserved.

Thanks to its versatile design, the OV7670 Camera Module is compatible with a wide range of platforms. Whether you're working with Arduino, STM32, Chipkit, ARM, DSP, FPGA, or any other system, this camera module has got you covered. It's like having a professional-grade camera in the palm of your hand!

Don't let the compact size fool you. The OV7670 Camera Module is equipped with an onboard LDO regulator, requiring just a single 3.3V power supply. It's a true power-saving champion, making it an ideal choice for energy-efficient projects.

So, whether you're capturing breathtaking landscapes or creating innovative computer vision applications, trust the Lonely Binary OV7670 Camera Module to deliver exceptional performance and stunning image quality. Join the Lonely Binary family and unlock a world of visual possibilities today!

Tech Specs

Photosensitive Array	With a resolution of 640 x 480, this camera module ensures sharp and detailed images that will impress.
IO Voltage	The module operates smoothly with an IO voltage range of 2.5V to 3.0V, providing flexibility and compatibility.
Operating Power	Thanks to its optimized design, the OV7670 Camera Module consumes only 60mW at 15fps VGAYUV, offering a perfect balance between performance and power efficiency.
Sleeping Mode	When not in use, the module enters a power-saving sleeping mode, drawing less than 20μA of current. Say goodbye to unnecessary power consumption!
Operating Temperature	With an impressive operating temperature range of -30 to 70 degrees Celsius, the module remains reliable and functional even in challenging environments.
Lens Size	The camera module features a compact 1/6" lens size, allowing for easy integration into various projects.
Vision Angle	Capture a wide perspective with a generous 25-degree vision angle, expanding your creative possibilities.
Max. Frame Rate	Enjoy smooth and fluid visuals with a maximum frame rate of 30fps VGA, ensuring seamless image capture.
Sensitivity	The OV7670 Camera Module boasts a high sensitivity of 1.3V/(Lux-sec), delivering vivid and vibrant images even in low-light conditions.
Signal to Noise Ratio	With a signal-to-noise ratio of 46 dB, the module ensures clear and noise-free images, enhancing the overall image quality.
Dynamic Range	Experience exceptional dynamic range capabilities with a range of 52 dB, allowing for better contrast and detail in your visuals.
Browse Mode	The module offers convenient browsing by row, simplifying the image retrieval process.
Electronic Exposure	Customize your exposure settings with electronic exposure control, ranging from 1 to 510 rows, for precise image capture.
Pixel Coverage	Each pixel provides a compact coverage of 3.6μm x 3.6μm, ensuring fine details and accurate representation.
Duck Current	Experience smooth and stable performance with a minimal duck current of 12 mV/s at 60℃, ensuring reliable operation.
Net Weight	8.5 g
Dimension	(L) 30 mm x (W) 30 mm x (H) 20 mm

Documents

OV7670 Module Datasheet

What’s in the Box

1 x OV7670 Camera Module
