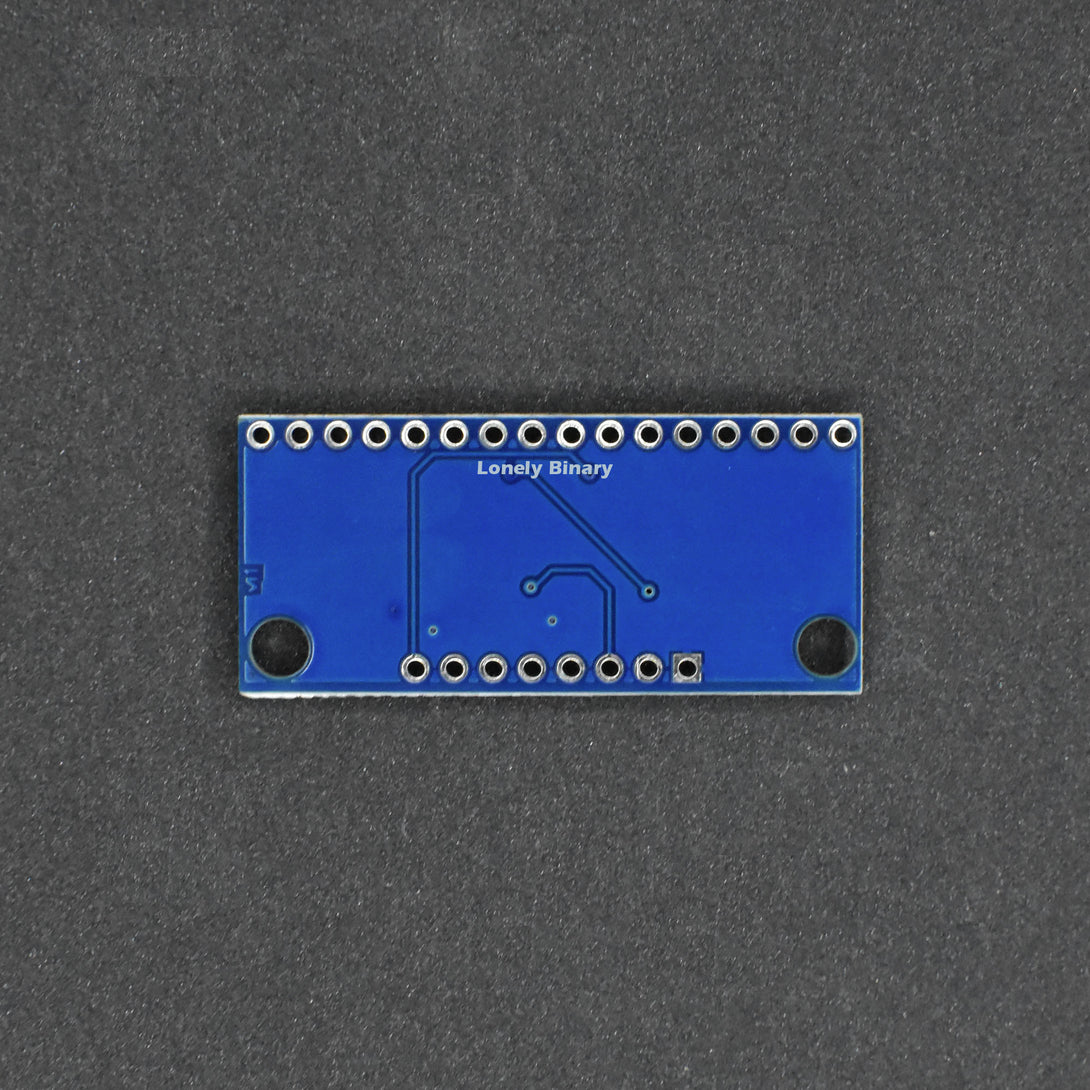

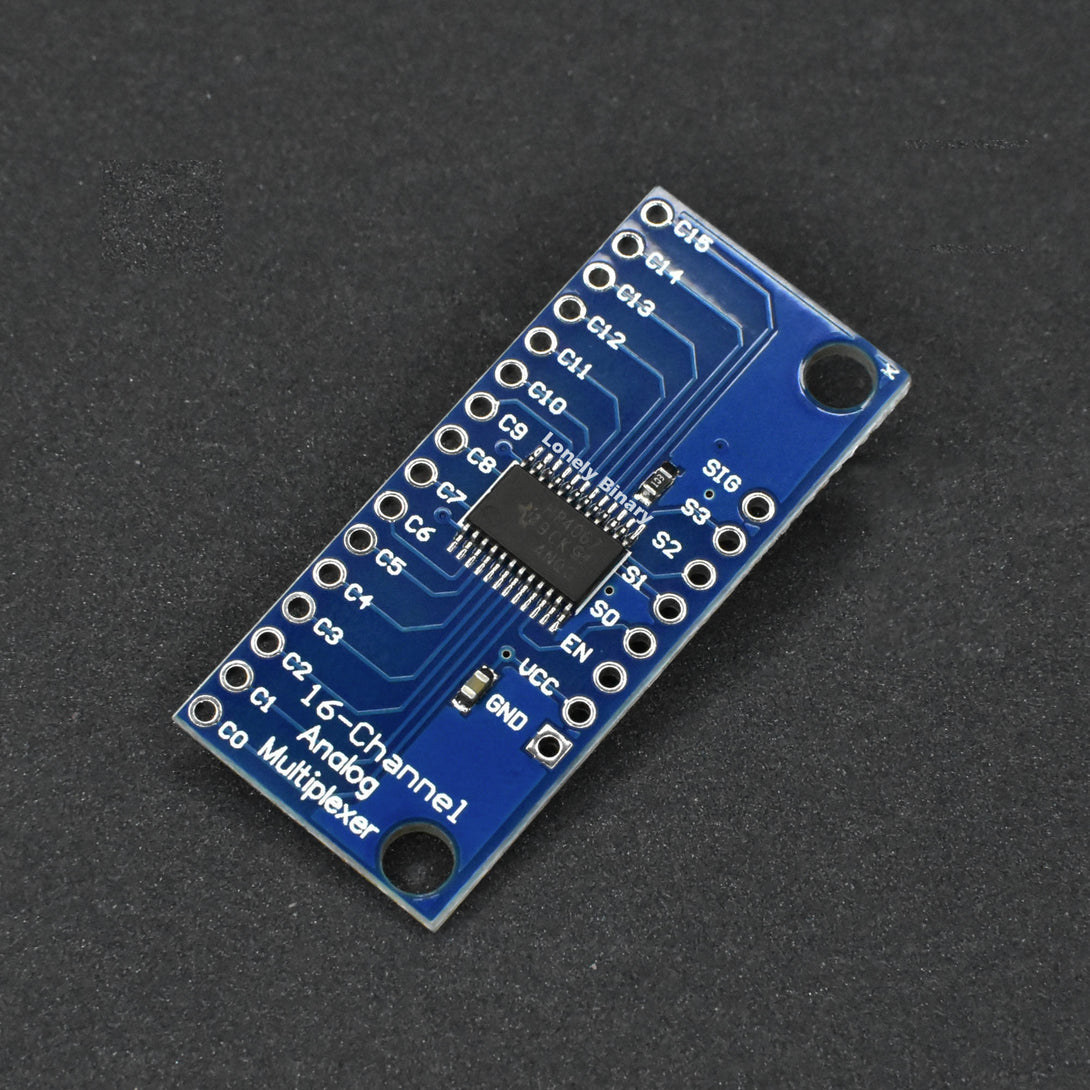

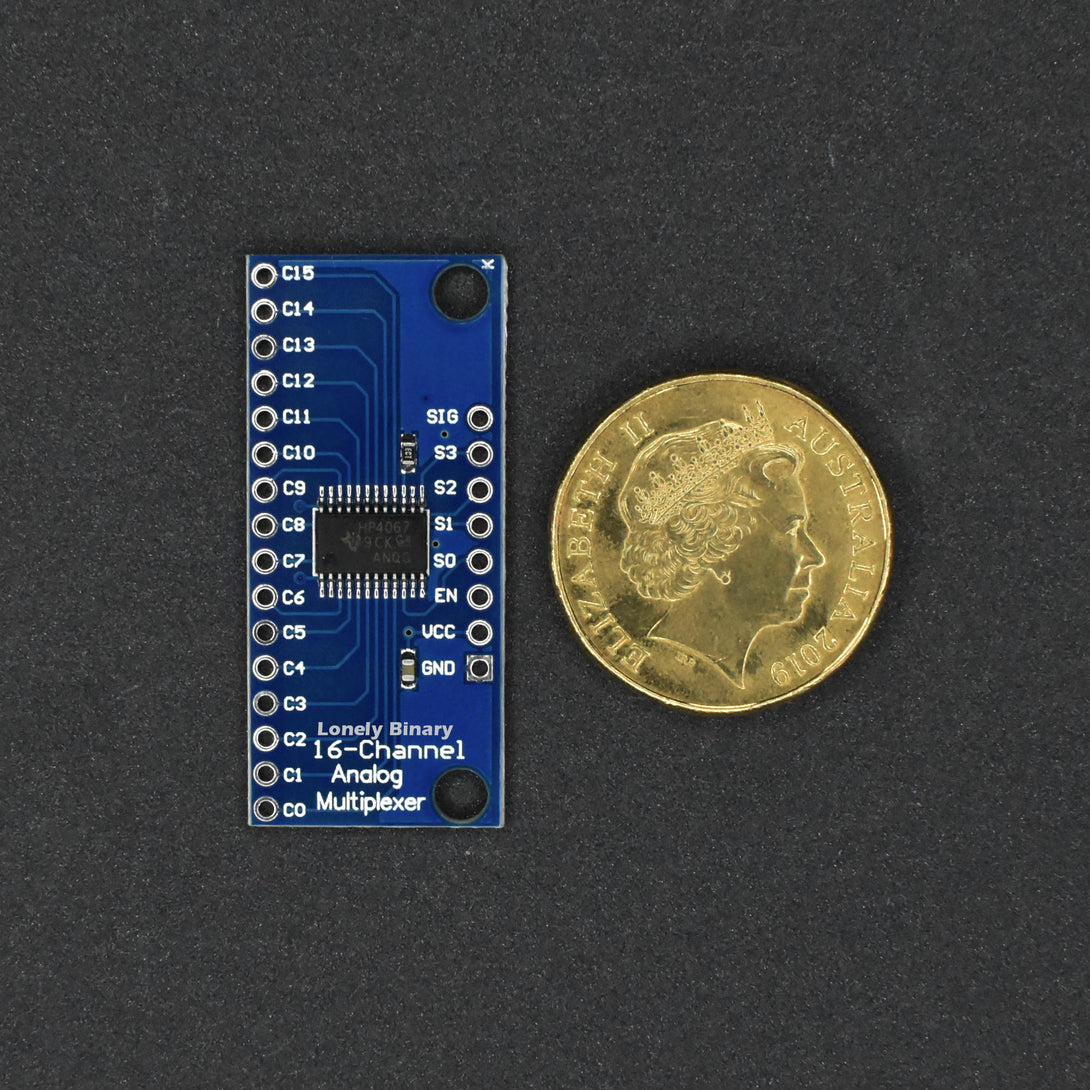

Introducing the Lonely Binary CD74HC4067 Breakout Board! This incredible chip is like a superhero of multiplexing and demultiplexing, providing you with the ultimate flexibility for your analog and digital signals. Prepare to be amazed as we dive into the unique features of this board.
The CD74HC4067 chip acts as a master of connections, effortlessly routing the common pin to one of the 16 channel pins. Say goodbye to limited inputs and embrace the freedom of expansion. This breakout board supports both digital and analog signals, allowing you to unleash your creativity and connect various devices. Just remember, the voltage should not exceed VCC to keep the magic alive.
With 4 digital outputs connected to the address select pins (S0-S3), you have the power to command this chip with precision. Simply send it the binary address of the desired channel, and watch the magic happen. Consult the datasheet for all the nitty-gritty details. This breakout board is designed to optimize your space while expanding your capabilities.
Imagine connecting up to 16 sensors to your system using just 5 pins. Yes, you heard that right! The Lonely Binary CD74HC4067 Breakout Board is here to revolutionize your sensor connections and save precious resources. Created by Lonely Binary, a name synonymous with quality and innovation, this breakout board combines reliability with cutting-edge technology.
Experience the Lonely Binary difference in every aspect of your project. Get ready to amplify your projects with the Lonely Binary CD74HC4067 Breakout Board. Whether you're a hobbyist, tinkerer, or professional, this breakout board will elevate your analog and digital game to new heights. Unleash the potential of multiplexing and experience the convenience of expanded sensor connections. Don't wait! Grab your Lonely Binary CD74HC4067 Breakout Board now and witness the power of intelligent signal routing.
|Wide voltage range||2V to 6V operation|
|Low "On" resistance||70 Ohms @ 4.5V|
|Fast switching||6ns break-before-make @ 4.5V|
|Versatile temperature range||-55°C to 125°C|
|Net Weight||2.5 g|
|Dimension||(L) 40 mm x (W) 17 mm x (H) 1.3 mm|
What’s in the Box
- 1 x CD74HC4067 Module
